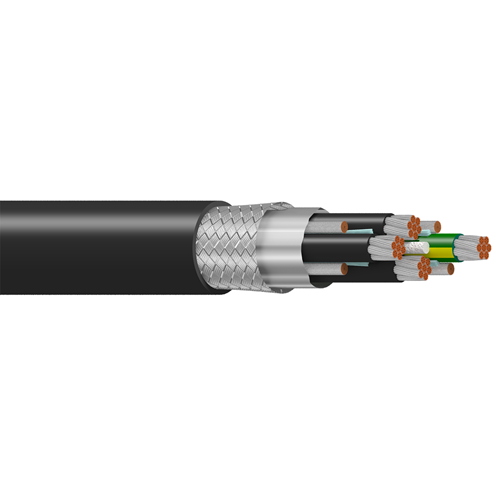

Belden 29507 2 AWG 3 Conductor 7x19x23 Stranding 1000V Variable Frequency Drives Cable

Description:

Belden 300% Ground Flexible VFD, 3 Conductor 2AWG (7x19x23) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield w/4-8AWG Tinned Copper Ground/Drains, Black PVC Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.062 in (1.6 mm)
Nom. Insulation Diameter: 0.454 in (11.5 mm)

Element: Insulated Ground:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.062 in (1.6 mm)
Nom. Insulation Diameter: 0.454 in (11.5 mm)

Outer Shield:

• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%, Drainwire Type 8 AWG (7x19x28) TC

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 87%

Outer Jacket:

• Material:  PVC - Polyvinyl Chloride
• Nom. Thickness: 0.095 in (2.4 mm)
• Nom. Diameter: 1.324 in (33.63 mm)
• Overall Cable Diameter (Nominal): 1.324 in (33.63 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems; Class 1 Division 2 Hazardous Locations: Recommended Cable Gland Belden BTC150A1501RA
