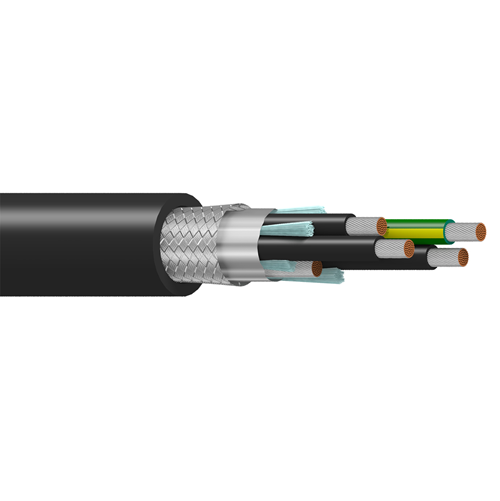

Belden 29502 12 AWG 3 Conductor 65x30 Stranding 1000V Variable Frequency Drives Cable

Description:

Belden 300% Ground Flexible VFD, 3 Conductor 12AWG (65x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield w/12AWG Tinned Copper Drain, Black PVC Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross Linked Polyethylene
Nom. Thickness: 0.046 in (1.2 mm)
Nom. Insulation Diameter: 0.187 in (4.75 mm)

Element: Ground Wire:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.047 in (1.2 mm)
Nom. Insulation Diameter: 0.187 in (4.75 mm)

Outer Shield:

• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%, Drainwire Type 12 AWG (65x30) TC

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%

Outer Jacket:

• Material:  PVC - Polyvinyl Chloride
• Nom. Thickness: 0.073 in (1.9 mm)
• Nom. Diameter: 0.630 in (16.0 mm)
• Overall Cable Diameter (Nominal): 0.630 in (16.0 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems
