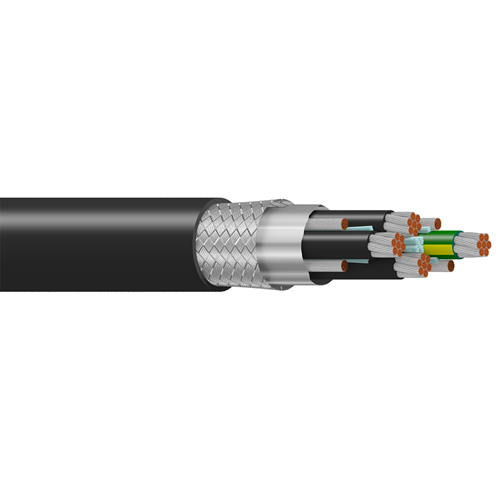

Belden 29505F 6 AWG 3 Conductor 7x37x30 Stranding 1000V Variable Frequency Drives Cable

Description:

Belden 100% Ground Extra Flexible VFD, 3 Conductor 6AWG (7x37x30) Tinned Copper XLPE Insulation M4 Color Code + 6AWG Symmetrical Segmented Ground (3 of 10AWG) Tinned Copper Stranded, Overall Beldfoil+Tinned Copper Braid(85%) Shield, Black TPE Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II DIR BUR.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.062 in (1.6 mm)

Element: Ground:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.062 in (1.6 mm)

Outer Shield:

• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%

Outer Jacket:

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.095 in (2.4 mm)
• Nom. Diameter: 0.961 in (24.4 mm)
• Overall Cable Diameter (Nominal): 0.961 in (24.4 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems, Exposure to high flex, motion, and abrasion, Hard to reach installation areas
