Description:

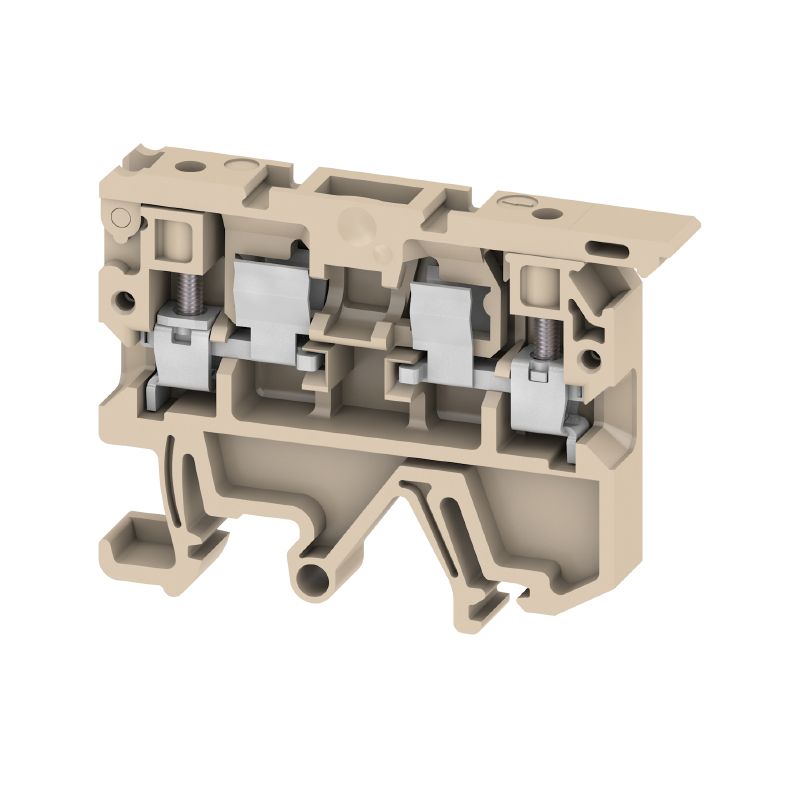

Introducing a reliable fuse terminal with screw connections, engineered to support a wire cross-section of 4 mm² and capable of handling a maximum current of 63 A at a voltage of 60 V This terminal features two connection points and is designed to mount securely on TS 35 and TS 32 mounting rails, offering a single level setup for easy integration into various applications.
Features and Benefits:
•Fuse cartridge with one end without connector.
•Maximum clamping range of 6 mm² and minimum of 0.13 mm².
•Snap-on type of mounting.
•No internal cross connections between levels.
•Does not include PE connection.
Specifications:
| Depth | 43 mm |
| Height | 58 mm |
| Width | 8.1 mm |
| Net weight | 12.93 g |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temperature, min. | -50 °C |
| Continuous operating temperature, max. | 100 °C |
| Basic material | PA 66 |
| UL 94 flammability rating | V-2 |
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| Rated cross-section | 4 mm² |
| Rated voltage | 60 V |
| Nominal current | 6.3 A |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section AWG, min. | AWG 26 |
