Description:

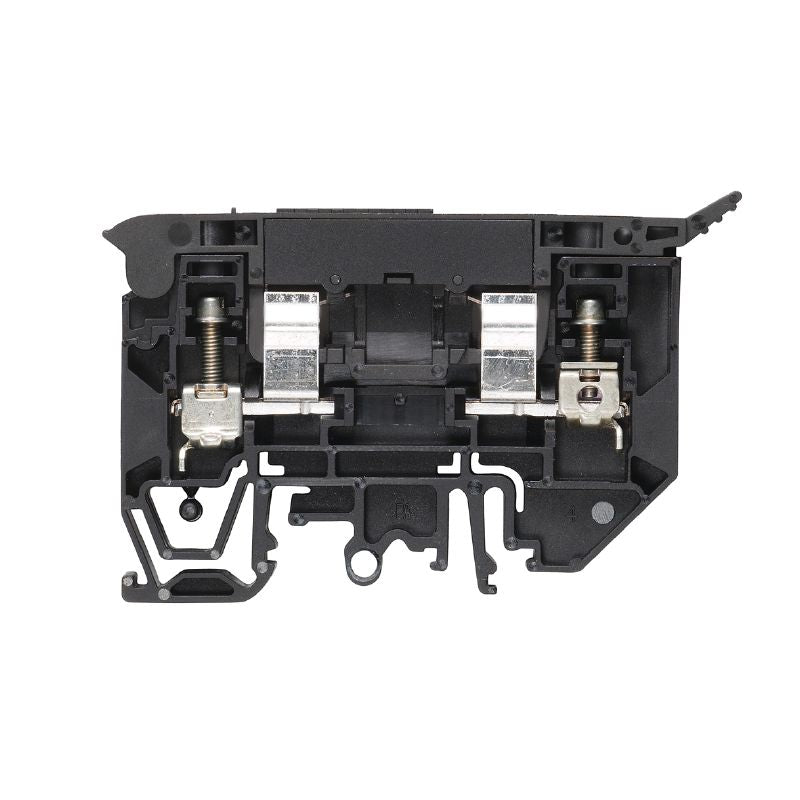

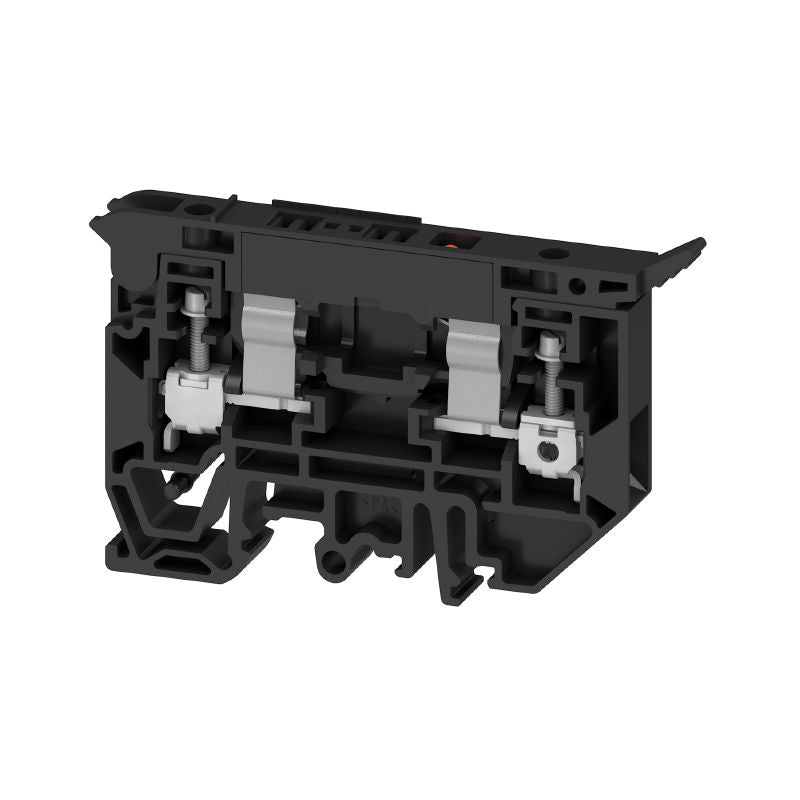

Introducing the versatile fuse terminal, crafted for a secure screw connection and compatible with a black 4 mm² cable It supports a maximum current of 63 A at a voltage of 24 V, featuring two connection points on a single level This terminal is designed for easy installation on TS 35 and TS 32 mounting rails, offering reliability and efficiency for your electrical projects.
Features and Benefits:
•Screw connection type.

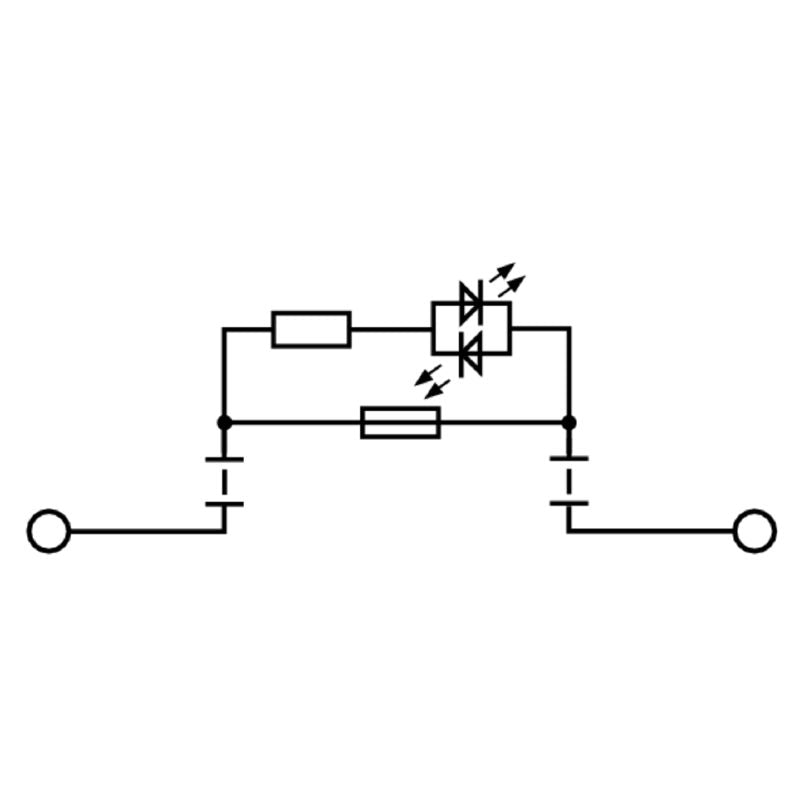

•LED indication for fuse isolation.
•Compact design with minimal dimensions.
•Compliance with environmental standards such as RoHS.
Specifications:
| Depth | 53.5 mm |
| Height | 81.6 mm |
| Width | 9.1 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temperature, min. | -50 °C |
| Continuous operating temperature, max. | 120 °C |
| Rated voltage | 24 V |
| Rated current | 6.3 A |
| Rated cross-section | 4 mm² |
| Fuse terminals | Cartridge fuse 6.3 x 32 mm |
| Material | Wemid |
| UL 94 flammability rating | V-0 |
