Description:

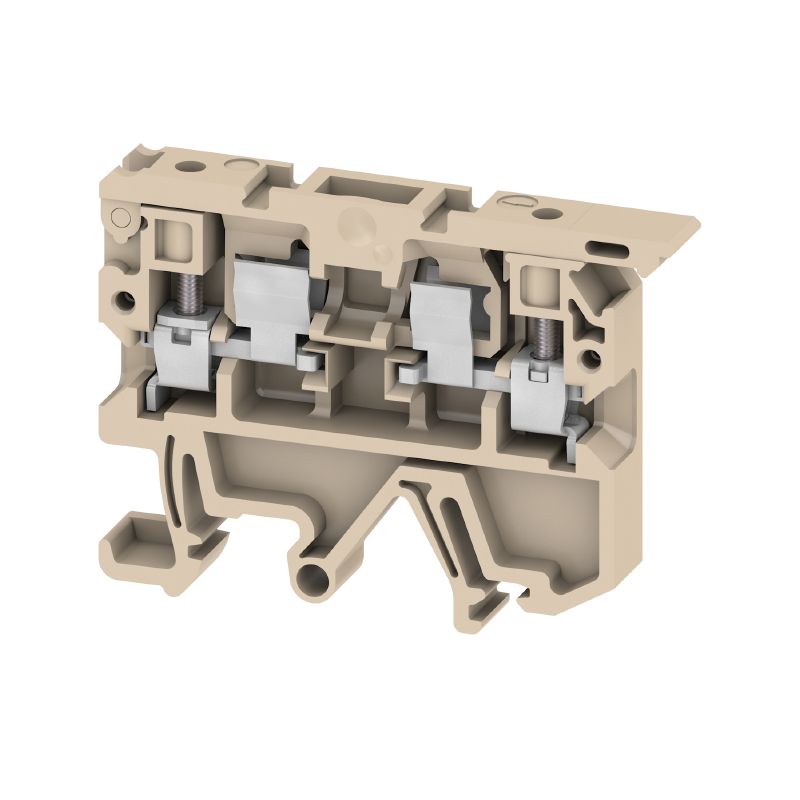

Introducing the ASK1EN/SMT 10-60VUC BFI H- fuse terminal, perfect for your electrical needs Engineered with a reliable screw connection, it supports wire sizes up to 4 mm² and offers a current capacity of 63 A, with a voltage rating of 60 V This terminal features two connections arranged on a single level, ensuring easy installation on mounting rails TS 35 and TS 32 Crafted from durable PA 66 material, it complies with RoHS standards, making it a safe and eco-friendly choice for your projects.
Features and Benefits:
•Screw connection type.
•Compliant with RoHS regulations.
•Snap-on mounting type.
Specifications:
| Depth | 43 mm |
| Height | 58 mm |
| Width | 8.1 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Basic material | PA 66 |
| UL 94 flammability rating | V-2 |
| Rated cross-section | 4 mm² |
| Rated voltage | 60 V |
| Rated DC voltage | 60 V |
| Nominal current | 6.3 A |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.13 mm² |
| Connection direction | on side |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
