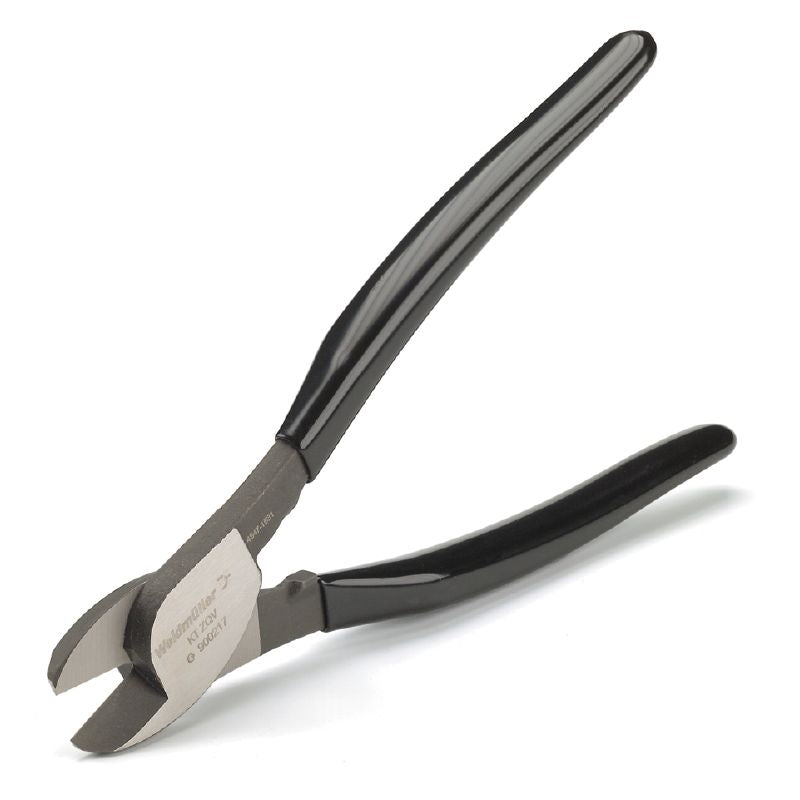

9002170000 - One-Handed KT ZQV Cutting Tool for Z-Series Connections
9002170000 - One-Handed KT ZQV Cutting Tool for Z-Series Connections
SKU: SKU: 9002170000 Download PDF
- 9002170000 - One-Handed KT ZQV Cutting Tool for Z-Series Connections
- 9002170000 - One-Handed KT ZQV Cutting Tool for Z-Series Connections
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KT ZQV cutting tool, expertly crafted for seamless one-handed use This tool is engineered specifically for achieving precise cuts on Weidmüller Z-Series cross-connections, making it an essential addition to your toolkit Enjoy effortless operation and enhanced efficiency with the KT ZQV.
Features and Benefits:
•Designed for one-hand mechanical operation.
•Suitable for cutting flexible copper cables up to 16 mm² or 6 AWG.
•Can handle solid copper cables up to 35 mm² or 2 AWG.
•Effective for stranded copper cables up to 70 mm² or 2/0 AWG.
•Maximum diameter for copper cable is 14 mm.
Specifications:
| Depth | 12 mm |
| Height | 44 mm |
| Width | 208 mm |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
| ETIM 6.0 | EC000142 |
| ETIM 7.0 | EC000142 |
| ETIM 8.0 | EC000142 |
| ETIM 9.0 | EC000142 |
| ETIM 10.0 | EC000142 |
| ECLASS 9.0 | 21-04-47-01 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-47-01 |
| ECLASS 11.0 | 21-04-47-01 |
| ECLASS 12.0 | 21-04-47-01 |
| ECLASS 13.0 | 21-04-47-01 |
| ECLASS 14.0 | 21-04-47-01 |
| ECLASS 15.0 | 21-04-47-01 |
