Description:

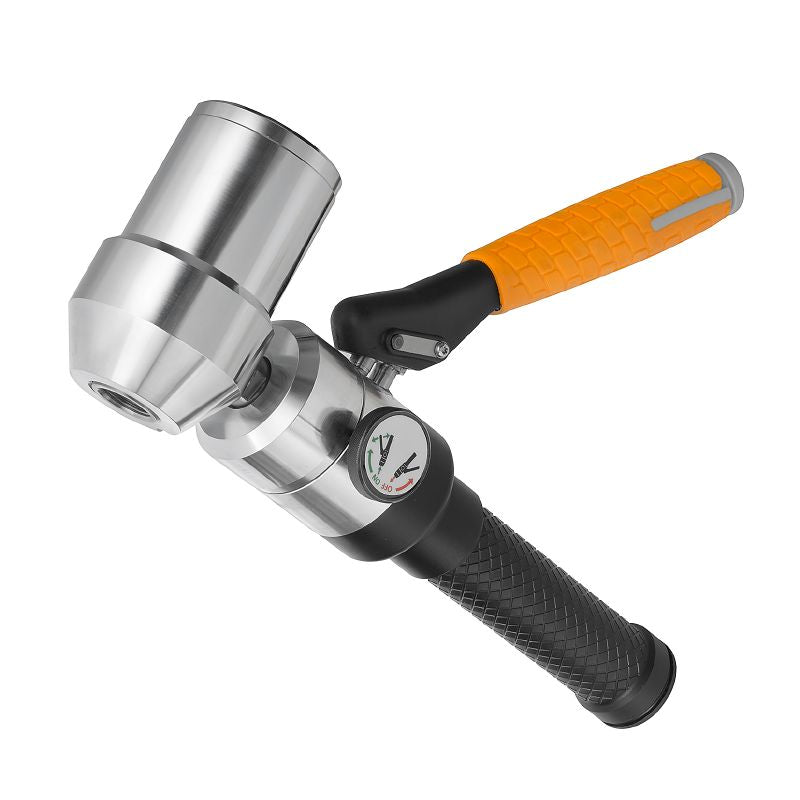

Introducing a powerful hydraulic tool specifically crafted for creating holes in sheet materials This robust device can reach an impressive maximum pressure of 680 bar and delivers a punching force of 75 kN Versatile in functionality, it allows you to create rectangular holes measuring up to 36 x 112 mm, round holes with diameters ranging from 1 mm to 85 mm, and square holes as large as 68 x 68 mm It operates smoothly with HLP32 hydraulic oil and complies with environmental regulations, including RoHS standards.
The product is categorized under multiple classification codes like ETIM and ECLASS, ensuring its recognition in various professional settings.
Features and Benefits:
•Capable of producing rectangular holes up to 36 x 112 mm.
•Supports round holes from 1 mm to 85 mm in diameter.
•Can create square holes up to 68 x 68 mm.
•Utilizes HLP32 hydraulic oil.

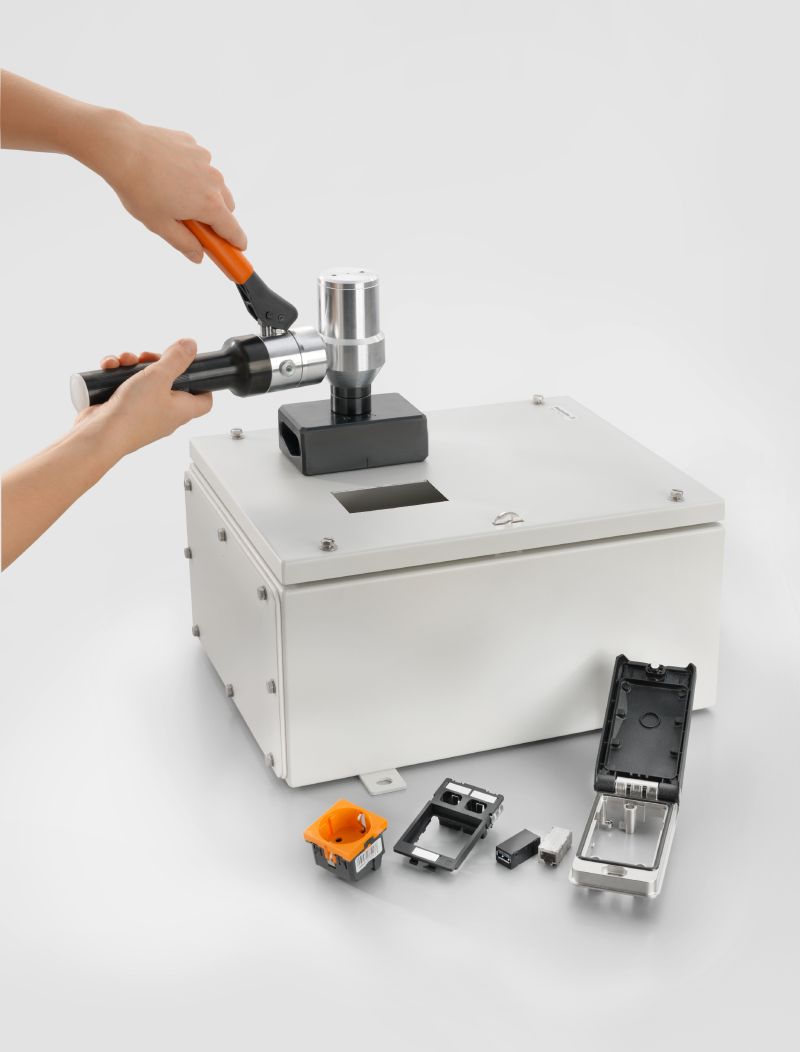

•Sheet hole creation in hydraulic applications.
Specifications:
| Depth | 70 mm |
| Height | 120 mm |
| Width | 290 mm |
| Net weight | 3,262 g |
| Max. operating pressure | 680 bar |
| Punching force | 75 kN |
| Rectangular holes up to | 36 x 112 mm; 2.0 mm F = 370 N/mm² |
| Round holes from 1 to Ø 85 mm | 2.0 mm F = 370 N/mm² |
| Round holes from 2 to Ø 64 mm | 3.0 mm F = 370 N/mm² |
| Round holes from 3 to Ø 64 mm | 2.5 mm F = 600 N/mm² |
| Square holes up to | 68 x 68 mm; 2.0 mm F = 370 N/mm² |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | b28ab223-64ec-44cf-adb0-4dd6ebcae141 |
| ETIM classification | EC000156 |
| ECLASS classification | 21-04-90-47 |
