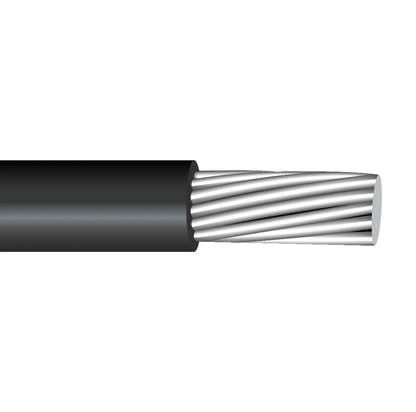

8 AWG Aluminum RHH/RHW-2 XLP USE-2 Direct Burial

8 AWG Aluminum RHH/RHW-2 XLP USE-2 Direct Burial

SKU: NES1678X Download PDF

Color:
gauge:
  • 8 AWG Aluminum RHH/RHW-2 XLP USE-2 Direct Burial
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.10 /FT
BEFORE   Now $1.10 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details

Get Extra Discount On Standard reels

250' 8 AWG Aluminum RHH/RHW-2 XLP USE-2 Direct Burial
$272.50
500' 8 AWG Aluminum RHH/RHW-2 XLP USE-2 Direct Burial
$540.00
1000' 8 AWG Aluminum RHH/RHW-2 XLP USE-2 Direct Burial
$1,070.00
Product Information Resources Applications Features Specifications Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

8 aluminum rhh wire, 8 aluminum rhw cable, 8 aluminum bury cable, direct burial electrical cable, direct burial power cable, direct burial service entrance cable.

Conductors:

Compact bare 8000 series aluminum, with Class B stranding per ASTM.

Insulation:

Abrasion, heat and moisture resistant cross-linked polyethylene insulation (XLP)

Compatible with Manufacturer
Priority Wire & Cable : Black : 8-01XL-USE-2-ALUM


    Resources
    Applications
    USE-2 cables are power distribution cables for service entrance below ground and direct burial, as well as raceways. The electrical cable is approved according to the National Electric Code, except for the use in cable trays. The maximum operating temperature for this electrical cable is 90°C in wet and dry locations. The voltage rating is 600 volts.
    Features
    Standards:

    • UL 44
    • UL 854
    • NEMA WC 70/ICEA S-95-658
    • Requirements of the National Electrical Code
    • ASTM B800, B801, B836
    • Sunlight resistant
    • Oil Resistant PRI/PRII
    • Gas and Oil Res GRI/GRII
    • RUS ACCEPTED

    Allowable Ampacity for 8 ALUMINUM RHH/RHW-2 XLP USE-2 DIRECT BURIAL: 30 Amps
    Specifications
    • Gauge: 8

    • Stranding: 7

    • Conductor Diameter Inches: 0.134

    • Insulation Thickness Inches: 0.080

    • O.D. Inches: 0.290

    • New Weight lb/1000FT: 125 lbs

    • Ampacity at 30°C: 30 Amps
