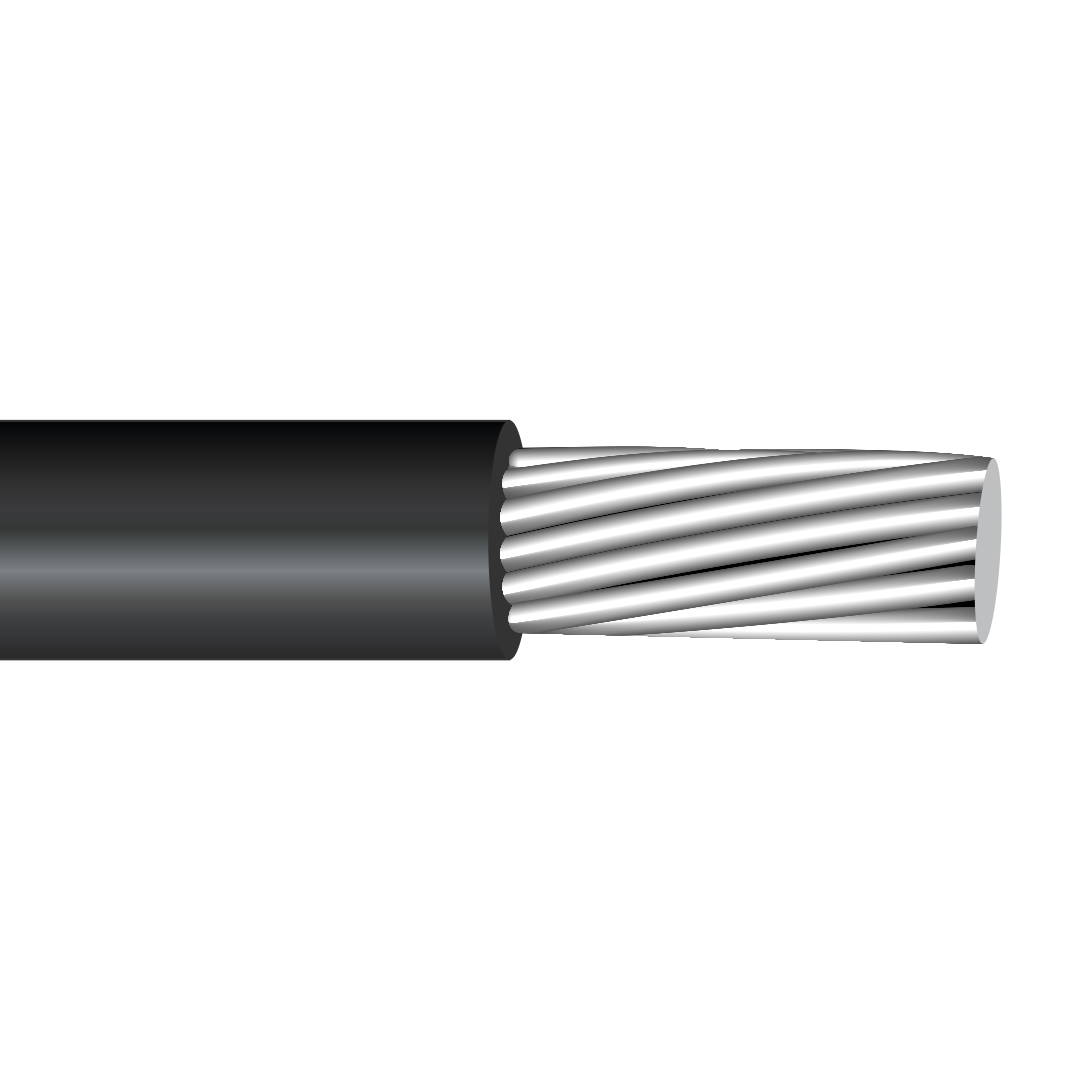

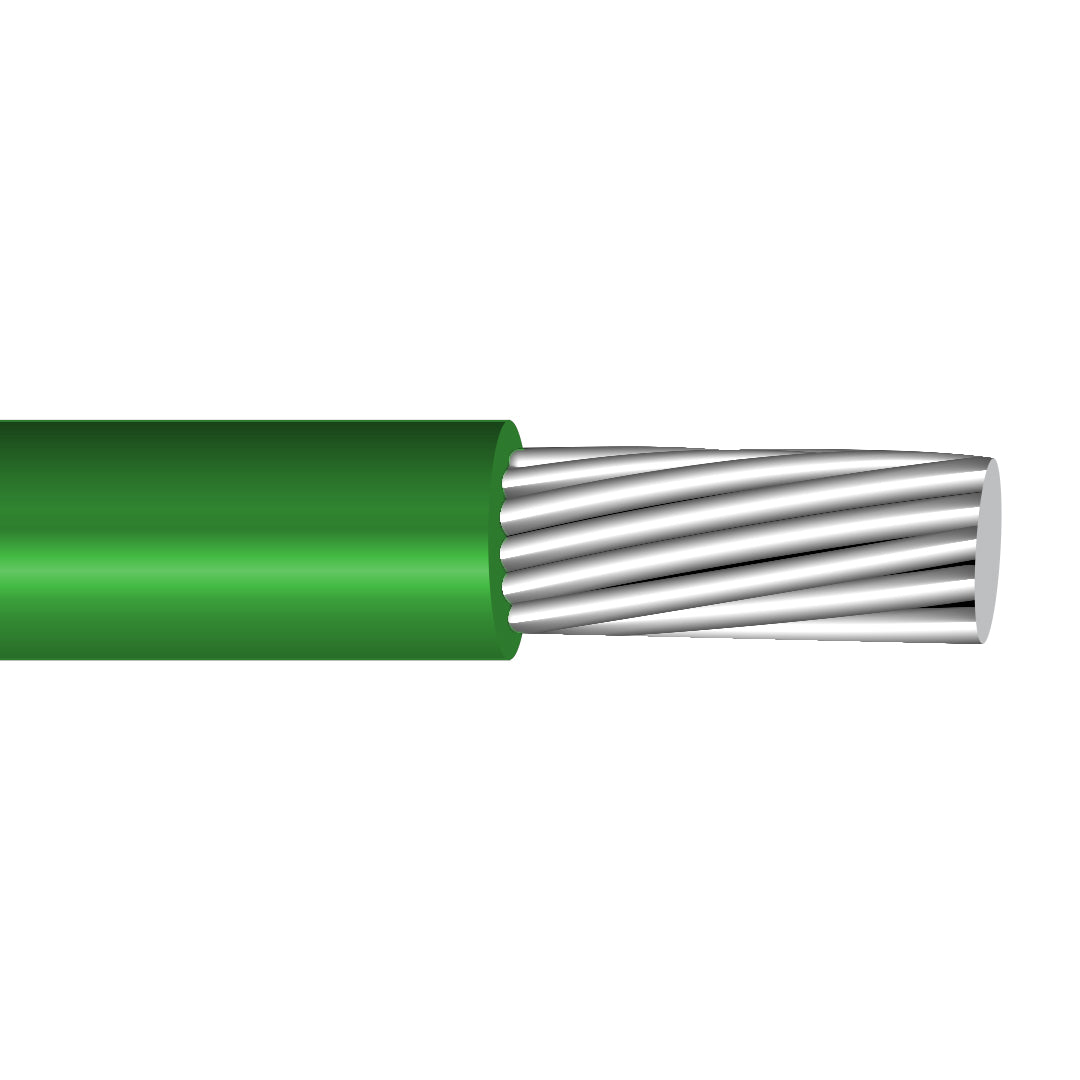

1000' 8 AWG Aluminum RHH/RHW-2 XLP USE-2 Direct Burial

SKU: SKU: NES1678X1000 Download PDF

Color Black Green

SET THE QTY:

Qty:

Now $1,000.00 Web pricing policy

~~BEFORE $0.00~~ Now $1,000.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

Also Known As:

8 aluminum rhh wire, 8 aluminum rhw cable, 8 aluminum bury cable, direct burial electrical cable, direct burial power cable, direct burial service entrance cable.

Conductors:

Compact bare 8000 series aluminum, with Class B stranding per ASTM.

Insulation:

Abrasion, heat and moisture resistant cross-linked polyethylene insulation (XLP)

Compatible with Manufacturer
Priority Wire & Cable :	Black : 8-01XL-USE-2-ALUM

Resources

Applications

USE-2 cables are power distribution cables for service entrance below ground and direct burial, as well as raceways. The electrical cable is approved according to the National Electric Code, except for the use in cable trays. The maximum operating temperature for this electrical cable is 90°C in wet and dry locations. The voltage rating is 600 volts.

Features

Standards:

• UL 44
• UL 854
• NEMA WC 70/ICEA S-95-658
• Requirements of the National Electrical Code
• ASTM B800, B801, B836
• Sunlight resistant
• Oil Resistant PRI/PRII
• Gas and Oil Res GRI/GRII
• RUS ACCEPTED

Allowable Ampacity for 8 ALUMINUM RHH/RHW-2 XLP USE-2 DIRECT BURIAL: 30 Amps

Specifications

• Gauge: 8

• Stranding: 7

• Conductor Diameter Inches: 0.134

• Insulation Thickness Inches: 0.080

• O.D. Inches: 0.290

• New Weight lb/1000FT: 125 lbs

• Ampacity at 30°C: 30 Amps
