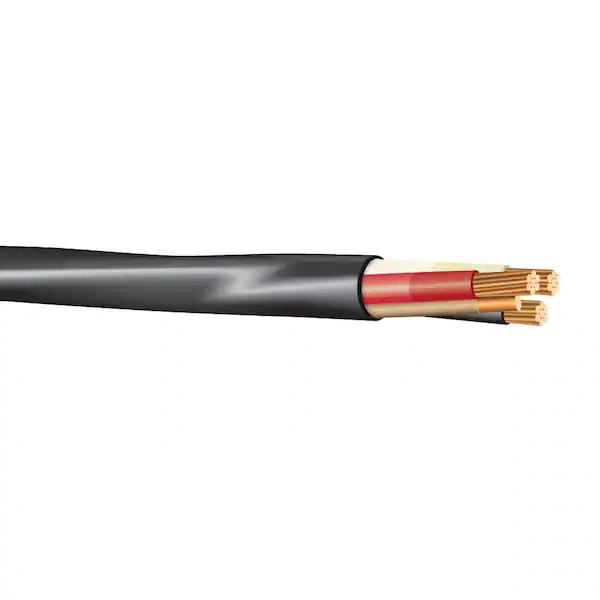

8/3 W/GRND NM-B 600V Stranded Black

8/3 W/GRND NM-B 600V Stranded Black

SKU: NES051   Download PDF

Select a gauge:
  • 8/3 W/GRND NM-B 600V Stranded Black
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $2.93 /FT   Web pricing policy
BEFORE   Now $2.93 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

8-3 NM-B Wire, 8-3 NM-B Cable, 8-3 Non-Metallic Sheathed Cable, 8-3 Non-Metallic Sheathed Wire, 8-3 W Grnd NM-B, 8-3 Type NB Copper Building Wire, 8-3 Type NB Copper Building Wire, 8/3 Electrical Wire, 8/3 Indoor Wire, 8/3 White Wire, 8/3 NM Cable, 8/3 NM Wire, 8/3 Residential Cable, 8/3 House Wire, 8/3 Home Wiring Cable, 8/3 Branch Circuit Wire, 8/3 Grounded Wire, 8/3 Southwire, 8/3 Southwire CU SIMpull, 8/3 63949201.

Conductors:

The 8/3 cable has 3 conductors with a bare ground wire. The conductors are made of soft Stranded bare annealed copper.

Insulation:

The 8/3 NM-B cable has a polyvinyl chloride (PVC) insulation, making it perfect for harsh conditions.

Jacket:

PVC jacket comes in yellow, orange, white, and black colors.



Compatible with Manufacturer
Southwire : Black : 639492
Resources
Applications
Type NM-B Copper Building Wire is commonly applied in residential building wiring and branch circuits for switches and outlets. wire is for dry indoor applications. 8/3 can also be used for various building purposes inside (the temperature should not exceed 90 °C). 8/3 NM-B electrical wire can be used in air voids in tile walls. The voltage rating of the 8 Gauge is 600 volts. The 8/3 electrical wire is easily installed because it is specifically designed for easier pulling.
Features
Standards:
•ASTM B-3 and B-8
•UL Standard 83
•UL Standard 719
•Federal Specification A-A-59544
•National Electrical Code, NFPA 70. 2011 Edition
•RoHS/ REACH

•Allowable Ampacity for 8-3 W/GRND NM-B(amp rating): 40 Amps
Specifications
•Size AWG: 8
•Weight per 1000 ft: 253 lbs
•Conductors: 3
•Number of Strands: 7
•Insulation: PVC
•Insulation Thickness: 35 mils
