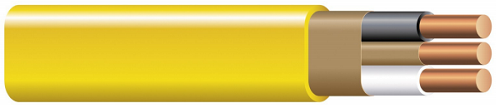

12/2 W/GRND NM-B 600V Solid Yellow

12/2 W/GRND NM-B 600V Solid Yellow

SKU: NES030   Download PDF

Select a gauge:
  • 12/2 W/GRND NM-B 600V Solid Yellow
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.70 /FT   Web pricing policy
BEFORE   Now $0.70 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

12/2,12/2 NM-B Wire, 12/2 NM-B Cable, 12/2 Non-Metallic Sheathed Cable, 12/2 Non-Metallic Sheathed Wire, 12/2 W Grnd NM-B, 12/2 Electrical Wire, 12/2 Indoor Wire, 12/2 Yellow Wire, 12/2 NM Cable, 12/2 NM Wire, 12/2 Residential Cable, 12/2 House Wire, 12/2 Home Wiring Cable, 12/2 Branch Circuit Wire, 12/2 Grounded Wire, 12/2 Southwire, 12/2 Southwire CU SIMpull, 12/2 28828201.

Conductors:

The 12/2 has 2 conductors with bare ground wire. The conductors are made of soft solid bare annealed copper.

Insulation:

The 12/2 NM-B wire has a polyvinyl chloride (PVC) insulation, making it perfect for harsh conditions.;

Jacket:

PVC jacket of a 12/2 NM-B Cable comes in yellow, orange, white, and black colors.



Compatible with Manufacturer
Southwire : Yellow : 288282
Resources
Applications
Type NM-B Copper Building Wire is commonly applied in residential building wiring and branch circuits for switches and outlets. wire is for dry indoor applications. 12/2 can also be used for various building purposes inside (the temperature should not exceed 90 °C).12/2 NM-B electrical wire can be used in air voids in tile walls. The voltage rating of the 12 Gauge is 600 volts. The 12/2 electrical wire is easily installed because it is specifically designed for easier pulling.
Features
Standards:
•ASTM B-3 and B-8 conductors
•UL Standard 83 for thermoplastic insulated wires
•UL Standard 719 for NM cables
•Federal Specification A-A-59544
•National Electrical Code, NFPA 70. 2011 Edition
•RoHS/ REACH compliant

•Allowable Ampacity (amp rating) for 12/2 W/GRND NM-B : 20 Amps
Specifications
•Size AWG: 12
•Weight per 1000 ft: 82 lbs
•Conductors: 2
•Number of Strands: 1 Solid
•Insulation: PVC
•Insulation Thickness: 19 mils
