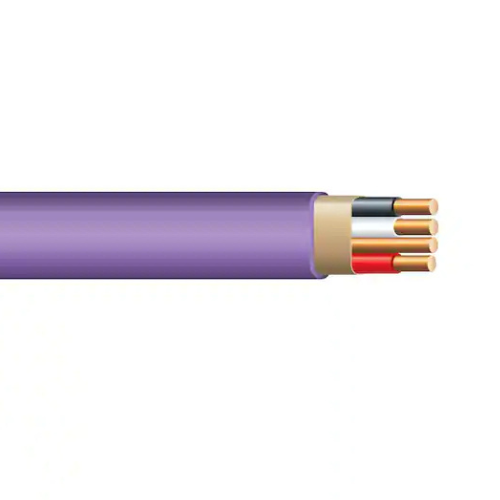

12/3 W/GRND NM-B 600V Solid Purple

12/3 W/GRND NM-B 600V Solid Purple

SKU: NES029   Download PDF

Select a gauge:
  • 12/3 W/GRND NM-B 600V Solid Purple
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.95 /FT   Web pricing policy
BEFORE   Now $0.95 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

12/3, 12/3 NM-B Wire, 12/3 NM-B Cable, 12/3 Non-Metallic Sheathed Cable, 12/3 Non-Metallic Sheathed Wire, 12/3 W Grnd NM-B,12/3 NM-B Wire, 12/3 NM-B Cable, 12/3 Non-Metallic Sheathed Cable, 12/3 Non-Metallic Sheathed Wire, 12/3 W Grnd NM-B, 12/3 Electrical Wire, 12/3 Indoor Wire, 12/3 Flexible, Wire 12 2, 12/3 Purple Wire, 12/3 NM Cable, 12/3 NM Wire, 12/3 Residential Cable, 12/3 House Wire, 12/3 Home Wiring Cable, 12/3 Branch Circuit Wire, 12/3 Grounded Wire, 12/3 Southwire, 12/3 Southwire CU SIMpull, 12/3 63947801.

Conductors:

The 12/3 has 3 conductors with bare ground wire. The conductors are made of soft Solid bare annealed copper.

Insulation:

The 12/3 has a polyvinyl chloride (PVC) insulation, making it perfect for harsh conditions.

Jacket:

PVC jacket comes in yellow, orange, white, Purple and black colors.

Compatible with Manufacturer
Southwire : Purple: 639476



Resources
Applications
Type NM-B Copper Building Wire is commonly applied in residential building wiring and branch circuits for switches and outlets. wire is for dry indoor applications. 12/3 can also be used for various building purposes inside (the temperature should not exceed 90 °C).12/2 NM-B electrical wire can be used in air voids in tile walls. The voltage rating of the 12 Gauge is 600 volts. The 12/3 electrical wire is easily installed because it is specifically designed for easier pulling.

The range of NM-B applications includes:

Residential electric systems, including lights, switches, and outlets.
Branch circuits
Small appliances, including microwave ovens, dishwashers, and garbage disposals
HVAC systems
In Air Void Applications of Tile Walls
The applications of NM-B are specified in Article 334 of NEC

Unlike 12/2 wire, which is used for standard circuits and outlets, 12/3 Nm-b electrical wire is used for circuits where two independent circuits are run together (multi-wire branch circuits), or for special connections that need a third wire, such as a three-way switch or a split receptacle circuit. The particular applications of NM-B in sizes 12/3 rated 20 Amps include:

Three-Way Switches
Shared Neutral Circuits/Multi-Wire Branch Circuits
Split Receptacles
Two Independent Circuits
Features
Standards:
•ASTM B-3 and B-8
•UL Standard 83
•UL Standard 719
•Federal Specification A-A-59544
•National Electrical Code, NFPA 70. 2011 Edition
•RoHS/ REACH

•Allowable Ampacity (amp rating) for 12/3 W/GRND NM-B: 20 Amps
Specifications
•Size AWG: 12
•Weight per 1000 ft: 107 lbs
•Conductors: 3
•Number of Strands: 1 Solid
•Insulation: PVC
•Insulation Thickness: 19 mils
