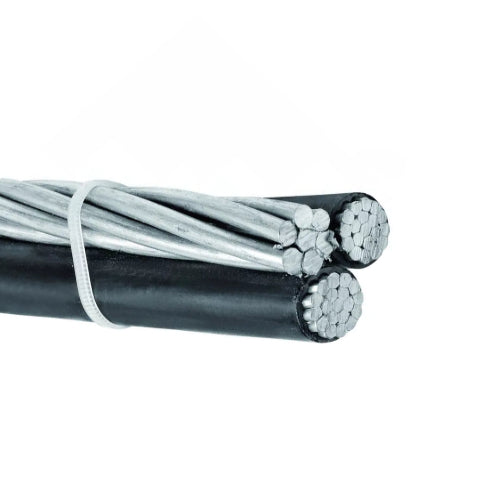

6-6-6 Voluta Aluminum Triplex Overhead Service Drop Cable

6-6-6 Voluta Aluminum Triplex Overhead Service Drop Cable

SKU: NES1946X   Download PDF

Select a gauge:
  • 6-6-6 Voluta Aluminum Triplex Overhead Service Drop Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.49 /FT   Web pricing policy
BEFORE   Now $0.49 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

6-6-6 Voluta Aluminum Triplex Overhead Service Drop Cable

Allowable Ampacity for 6-6-6 Voluta Aluminum Triplex Overhead XLP at 90°C: 85 Amps

Allowable Ampacity for 6-6-6 Voluta Aluminum Triplex Overhead Poly at 75°C: 70 Amps

Also Known As:

Voluta wire, 6-6-6 voluta triplex aluminum wire, 6-6-6 voluta triplex overhead wire, 6-6-6 voluta aluminum triplex, 6-6-6 voluta triplex conductor, 6-6-6 voluta overhead aluminum wire, 6-6-6 voluta aluminium overhead cables, 6-6-6 voluta overhead service drop conductors.

Conductors:

Triplex aluminum wire has a concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Aluminum triplex cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Triplex overhead aluminum wire has a black cross-linked polyethylene (XLP) insulation.

Resources
Applications
Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. The aluminum triplex cable is an electrical cable meant for power distributions from the utility lines to the consumer’s premises through the weather head. It has an operational voltage rating at 600 V and the maximum temperature rating of 75°C. A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.
Features
Standards:

• ASTM B-230

• ASTM B-231

• ASTM B-232

• ASTM B-399

• ICEA S-76 - 474
Specifications
• Size AWG: 6

• Stranding: 7/w

• Insulation Thickness (mils): 0.045

• Neutral Size AWG: 6

• Weight lbs./1000ft: XLP: 115

• Weight lbs./1000ft: Poly: 112

• Ampacity: XLP: 85

• Ampacity: Poly: 70
