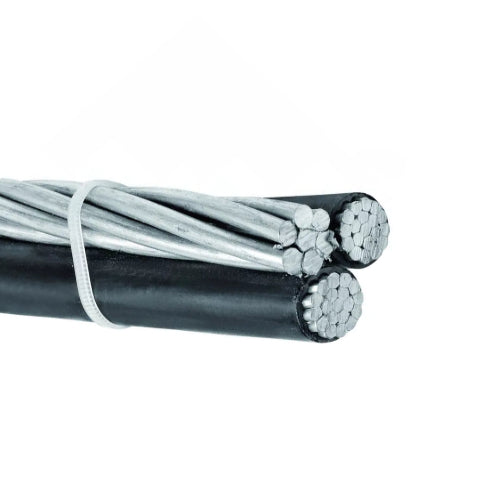

    6-6-6 Hippa Aluminum Triplex Overhead Service Drop Cable

    6-6-6 Hippa Aluminum Triplex Overhead Service Drop Cable

    SKU: NES19001X Download PDF

    gauge:
    • 6-6-6 Hippa Aluminum Triplex Overhead Service Drop Cable
    FT
    Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
    Now $1.71 /FT
    BEFORE   Now $1.71 /FT
    Sold out
    Web pricing policyShipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
    View full details
    Product Information Resources Applications Features Specifications Reviews
    Product Information

    *Data provided on this page is subject to change based on different manufacturers' variances
    ** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
    In the case the material only comes in a predetermined color or doesn’t come with any color

    6-6-6 Hippa Aluminum Triplex Overhead Service Drop Cable

    Allowable Ampacity for 6-6-6 Hippa Aluminum Triplex Overhead XLP at 90°C: 85 Amps

    Allowable Ampacity for 6-6-6 Hippa Aluminum Triplex Overhead Poly at 75°C: 70 Amps

    Also Known As:

    6-6-6 hippa triplex aluminum wire, 6-6-6 hippa triplex overhead wire, 6-6-6 hippa aluminum triplex, 6-6-6 hippa triplex conductor, 6-6-6 hippa overhead aluminum wire, 6-6-6 hippa aluminium overhead cables, 6-6-6 hippa overhead service drop conductors.

    Conductors:

    Triplex aluminum wire has a concentric strand or compressed 1350-H19 series aluminum conductor.

    Messenger:

    Aluminum triplex cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

    Insulation:

    Triplex overhead aluminum wire has a black cross-linked polyethylene (XLP) insulation.

    Resources

    Applications
    Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. The aluminum triplex cable is an electrical cable meant for power distributions from the utility lines to the consumer’s premises through the weather head. It has an operational voltage rating at 600 V and the maximum temperature rating of 75°C. A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.
    Features
    Standards:

    • ASTM B-230

    • ASTM B-231

    • ASTM B-232

    • ASTM B-399

    • ICEA S-76 - 474
    Specifications
    • Size AWG: 6

    • Stranding: 7

    • Insulation Thickness (mils): 0.045

    • Neutral Size AWG: 6

    • Weight lbs./1000ft: XLP: 107

    • Weight lbs./1000ft: Poly: 106

    • Ampacity: XLP: 85

    • Ampacity: Poly: 70
