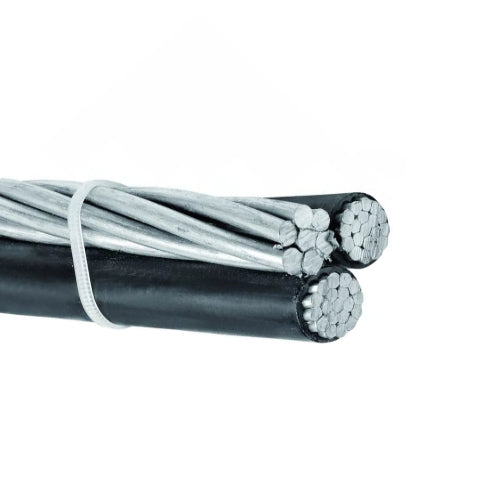

4-4-6 Strombus Aluminum Triplex Overhead

4-4-6 Strombus Aluminum Triplex Overhead

SKU: NES1960X Download PDF

gauge:
  • 4-4-6 Strombus Aluminum Triplex Overhead
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

4-4-6 strombus triplex aluminum wire, 4-4-6 strombus triplex overhead wire, 4-4-6 strombus aluminum triplex, 4-4-6 strombus triplex conductor, 4-4-6 strombus overhead aluminum wire, 4-4-6 strombus aluminium overhead cables, 4-4-6 strombus overhead service drop conductors.

Conductors:

Triplex aluminum wire has a concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Aluminum triplex cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Triplex overhead aluminum wire has a black cross-linked polyethylene (XLP) insulation.

Resources

Applications
Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. The aluminum triplex cable is an electrical cable meant for power distributions from the utility lines to the consumer’s premises through the weather head. It has an operational voltage rating at 600 V and the maximum temperature rating of 75°C. A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.
Features
Standards:

• ASTM B-230

• ASTM B-231

• ASTM B-232

• ASTM B-399

• ICEA S-76 - 474

Allowable Ampacity for 4-4-6 Strombus Aluminum Triplex Overhead XLP at 90°C: 115 Amps

Allowable Ampacity for 4-4-6 Strombus Aluminum Triplex Overhead Poly at 75°C: 90 Amps
Specifications
• Size AWG: 4

• Stranding: 7/w

• Insulation Thickness (mils): 0.045

• Neutral Size AWG: 6

• Weight lbs./1000ft: XLP: 151

• Weight lbs./1000ft: Poly: 148

• Ampacity: XLP: 115

• Ampacity: Poly: 90
