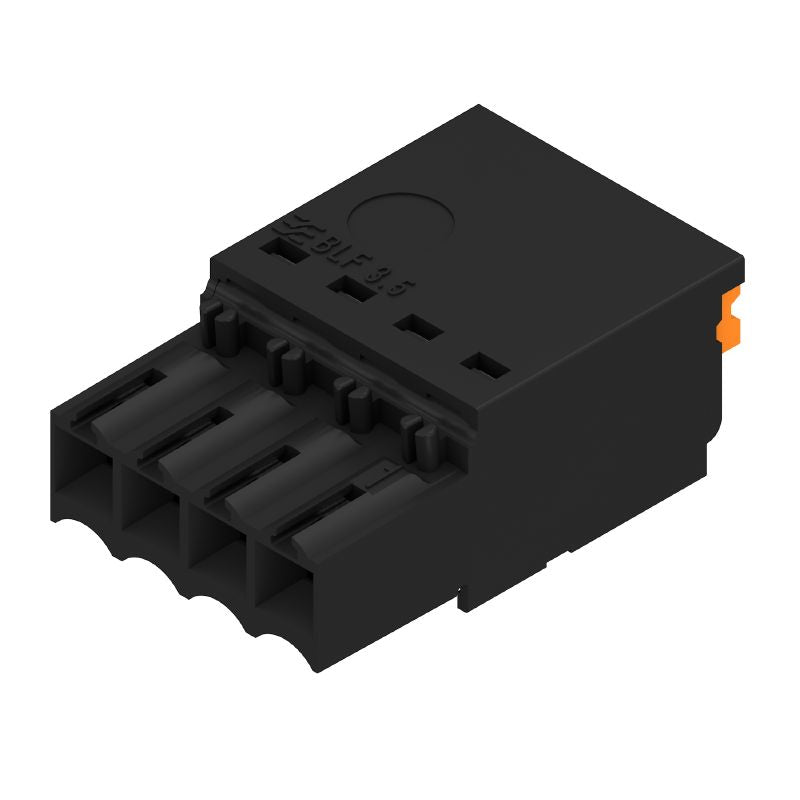

2755000000 - 3.5mm 4-Pole Female PCB Connector with Push-in Mechanism (Pack of 132)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BLF 350/04/180 SN BK BX PRT, a reliable female PCB connector designed for seamless integration with a 35 mm pitch and four poles This connector boasts a 180° orientation and utilizes a convenient push-in connection method secured by an actuator It can accommodate conductors with a cross-section of up to 15 mm², making it versatile for various applications Each unit is supplied in a sturdy box and meets important environmental standards, including RoHS and REACH compliance, ensuring safety and sustainability in your projects.

Features and Benefits:

•PUSH IN connection method with an actuator.

•Compliant with RoHS without exemption.

•Touch-safe protection according to DIN VDE standards.

•IP20 protection when fully assembled.

•Insulating material made of PA GF.

•Gold-plated contact surfaces available upon request.

Specifications:
