2599530000 - 3.81mm PCB Connector, 6 Poles, 180° Angle (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

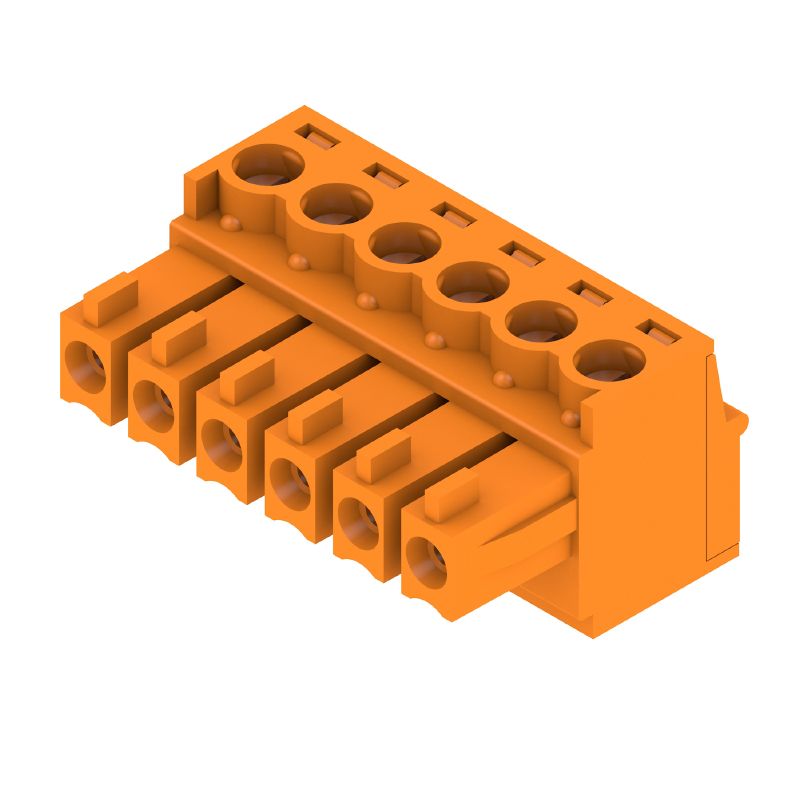

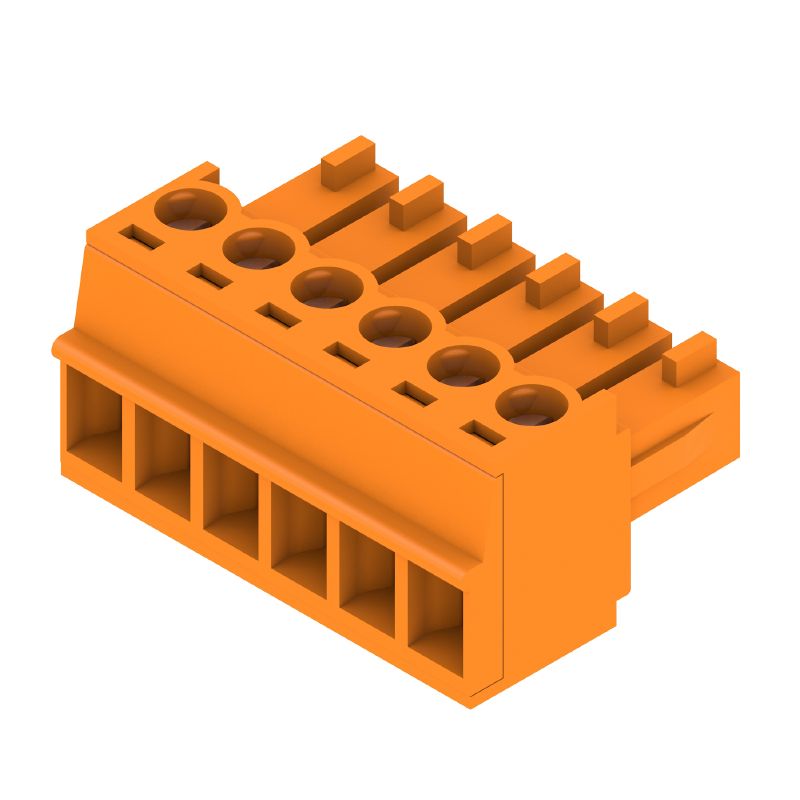

Introducing the BCZ 381/06/180 SN OR BX PRT, a robust female PCB plug-in connector designed with a 381 mm pitch This connector features six poles arranged at a 180° angle, providing reliable wire connections through a clamping yoke mechanism It can accommodate wires with a maximum clamping size of 15 mm² Additionally, it meets RoHS compliance standards and is conveniently packaged in a protective box, making it an excellent choice for various electronic applications.

Features and Benefits:

•Complies with IEC standards for electrical ratings.

•Suitable for use with both solid and flexible conductors.

•User-friendly wiring with a clamping yoke connection.

•Mechanical protection with touch-safe features according to DIN VDE.

•Durability with a rated number of plugging cycles up to 25.

Specifications:
