2578410000 - 3-Pole 3.81mm Female PCB Connector for 1.5mm² Wires (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

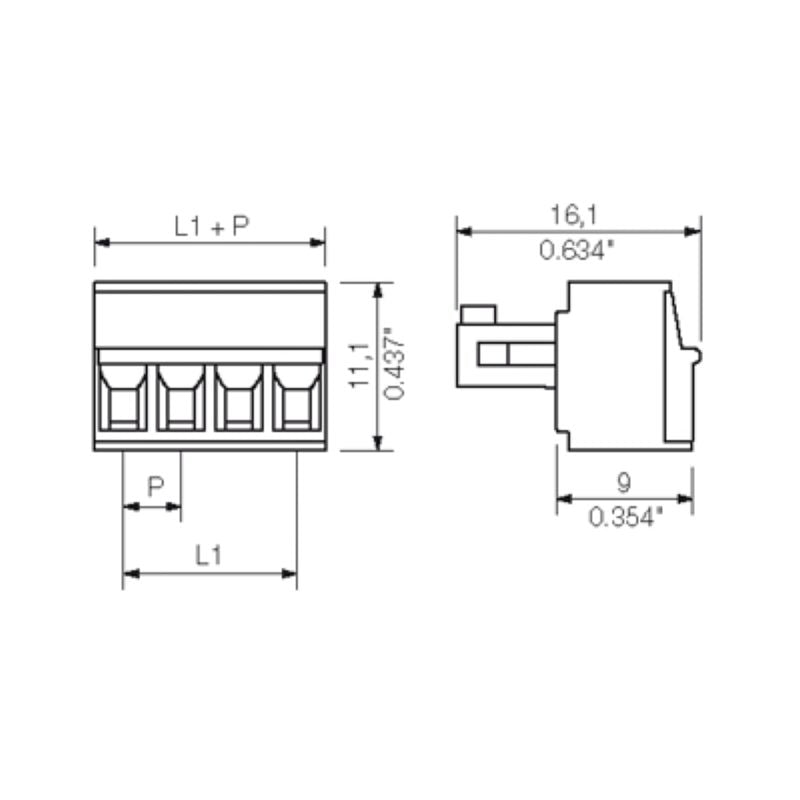

Introducing a reliable female plug PCB connector designed for superior performance Featuring a 381 mm pitch, this connector comes with a clamping yoke for easy wire connections It boasts three poles arranged at a 180° angle and accommodates wire sizes up to 15 mm² Each box includes 50 connectors, providing ample supplies for your needs Please note, this product is being phased out but will remain available until August 31, 2025.

Features and Benefits:

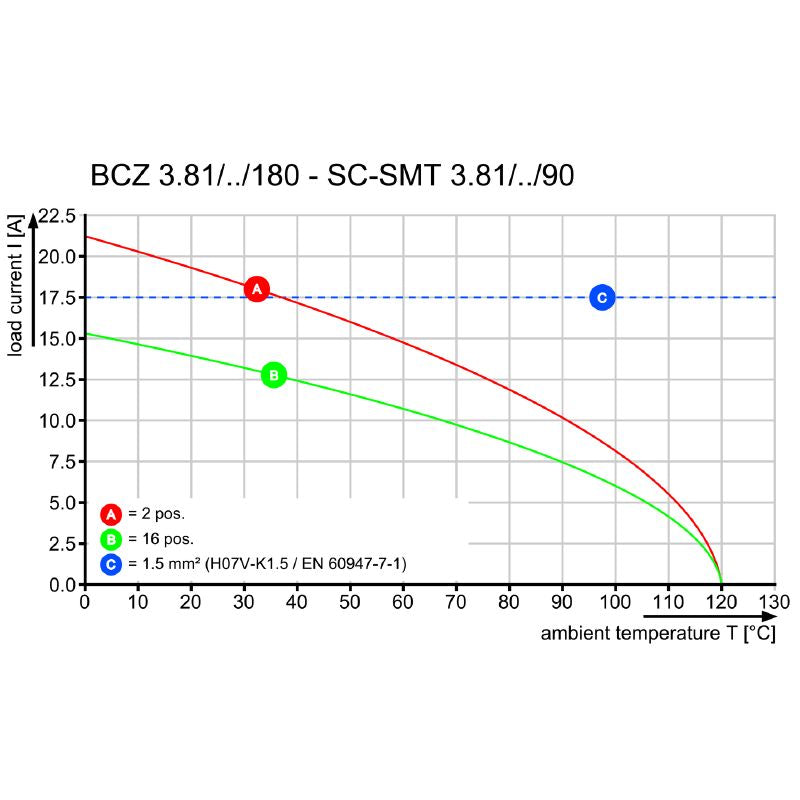

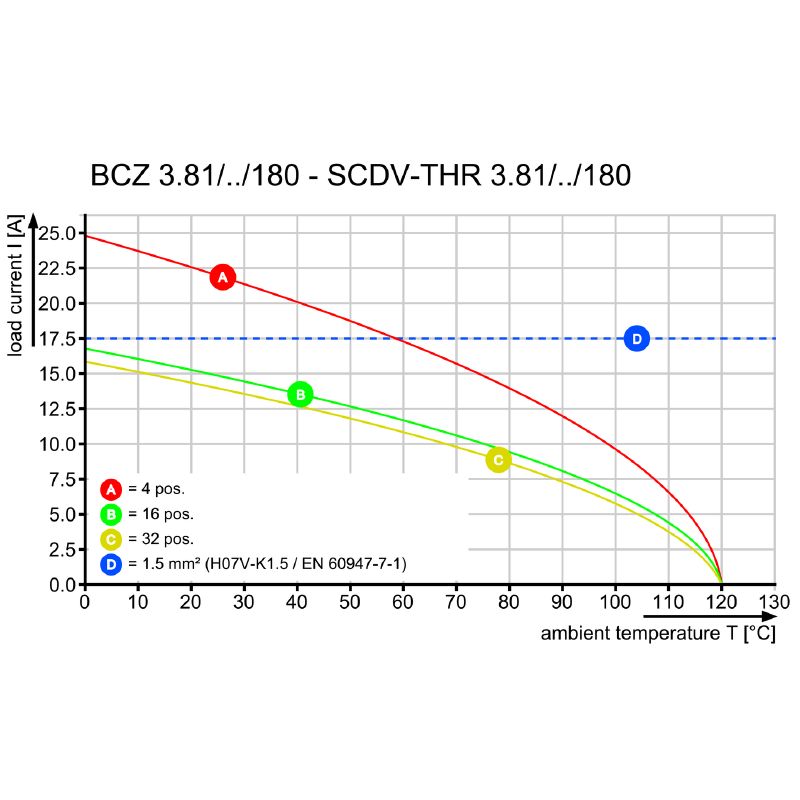

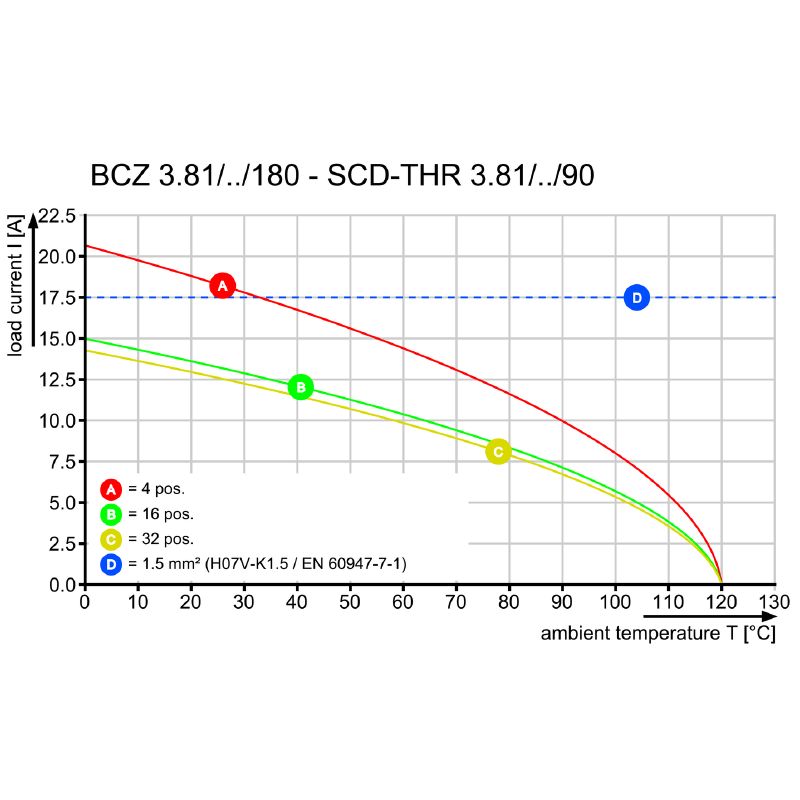

•IEC rated for 320 V and 17.5 A with wire cross-section support of 0.2 - 1.5 mm².

•UL rated for 300 V and 10 A suitable for AWG 28 - AWG 16.

•Touch-safe protection compliant with DIN VDE standards.

•Can be coded for secure connections.

•Robust construction allows for 25 plugging cycles.

Specifications:
