2574750000 - 3.50mm 5-Pole PCB Connector, 180° Angle, Clamping Yoke (Pack of 102)

2574750000 - 3.50mm 5-Pole PCB Connector, 180° Angle, Clamping Yoke (Pack of 102)

SKU: SKU: 2574750000   Download PDF

Select a Variant:
  • 2574750000 - 3.50mm 5-Pole PCB Connector, 180° Angle, Clamping Yoke (Pack of 102)
Qty:
Regular price Now $399.66   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $399.66 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

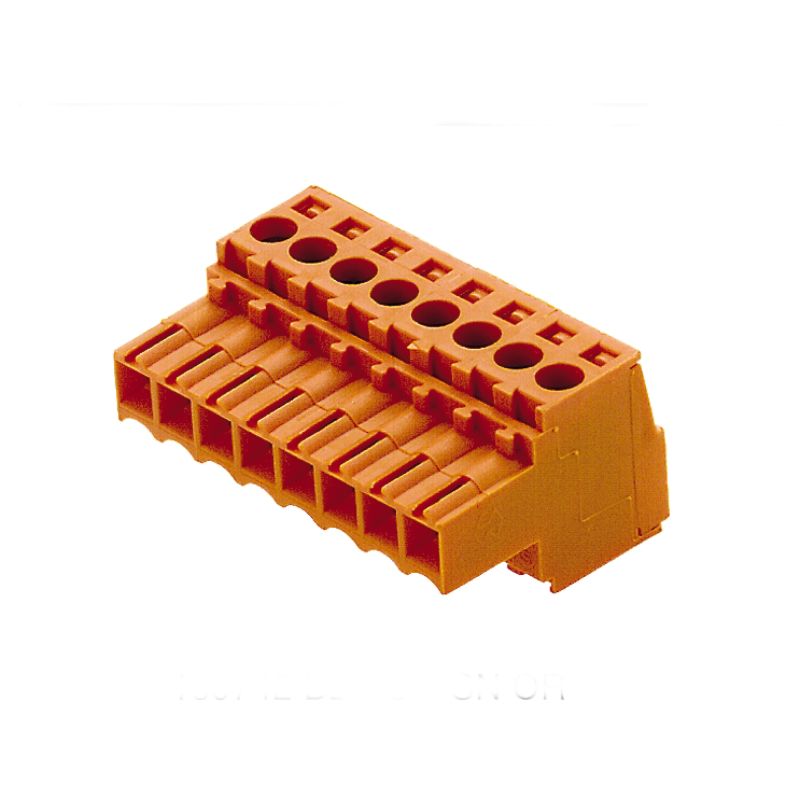

Presenting a female PCB plug connector, designed for efficiency with a pitch of 350 mm and a 180° angled standard This connector features five poles and incorporates a clamping yoke connection, accommodating a maximum clamping range of 15 mm² It comes neatly packaged in a box for easy storage Conforming to IEC standards, it supports voltages up to 320 V and currents rated at 17 A, while adhering to UL regulations with a 300 V and 10 A rating.

Its compact dimensions measure 185 mm in depth, 13 mm in height, and 175 mm in width, while each unit weighs just 4411 grams Plus, it complies with RoHS standards for environmental safety.

Features and Benefits:

    •Insulating material is PBT.

    •Touch-safe design according to DIN VDE regulations.

    •Easy installation with a clamping yoke connection method.

    •Can be coded for secure connections.

    •Suitable for various conductor sizes from 0.08 mm² to 1.5 mm².

Specifications:

 Rated voltage (IEC): 320 V

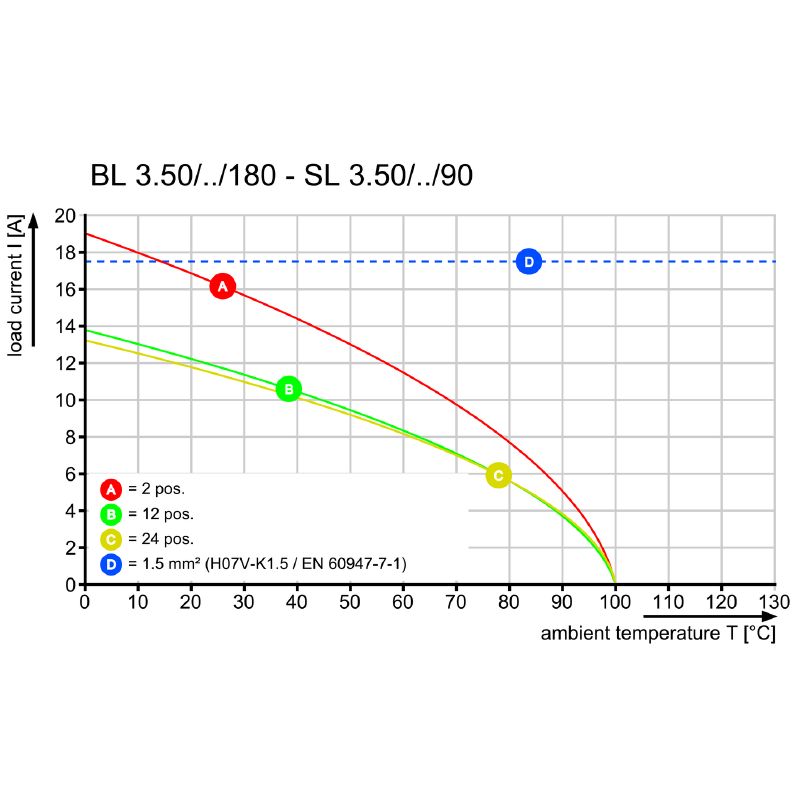

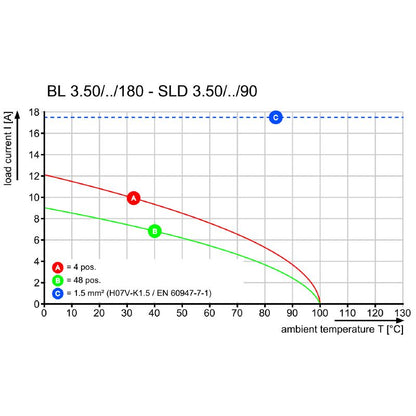

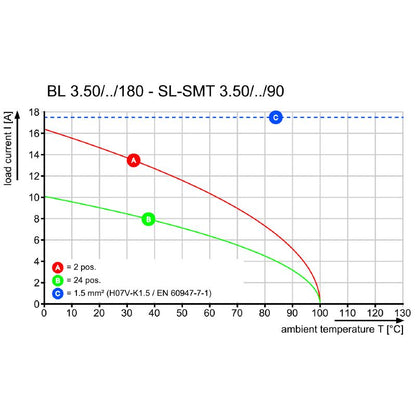

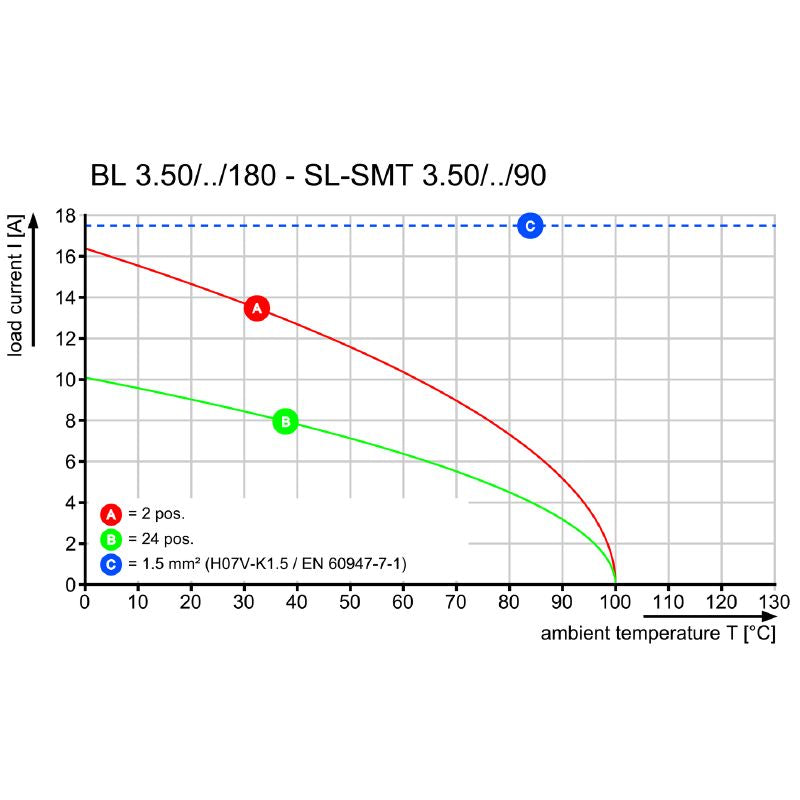

 Rated current (IEC): 17 A
 Clamping range (max): 1.5 mm²
 Number of poles: 5
 Pitch (P): 3.5 mm

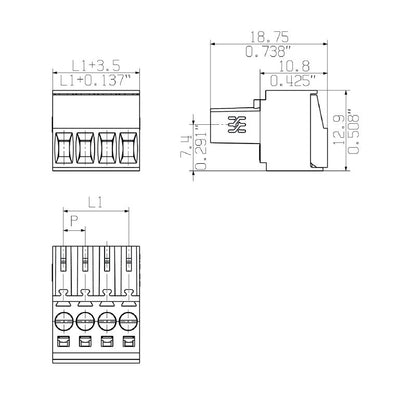

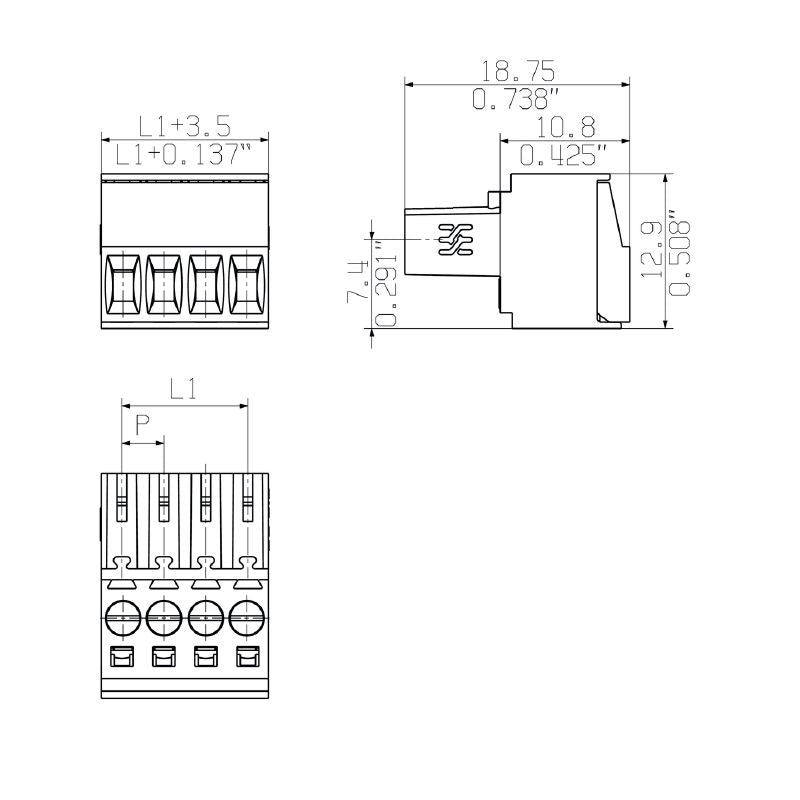

 Depth: 18.5 mm
 Height: 13 mm
 Width: 17.5 mm
 IP protection degree: IP20
 Operating temperature (max): 100 °C
 Storage temperature (min): -40 °C
 Insulation resistance: ≥ 10^8 Ω
 Volume resistance: ≤5 mΩ
