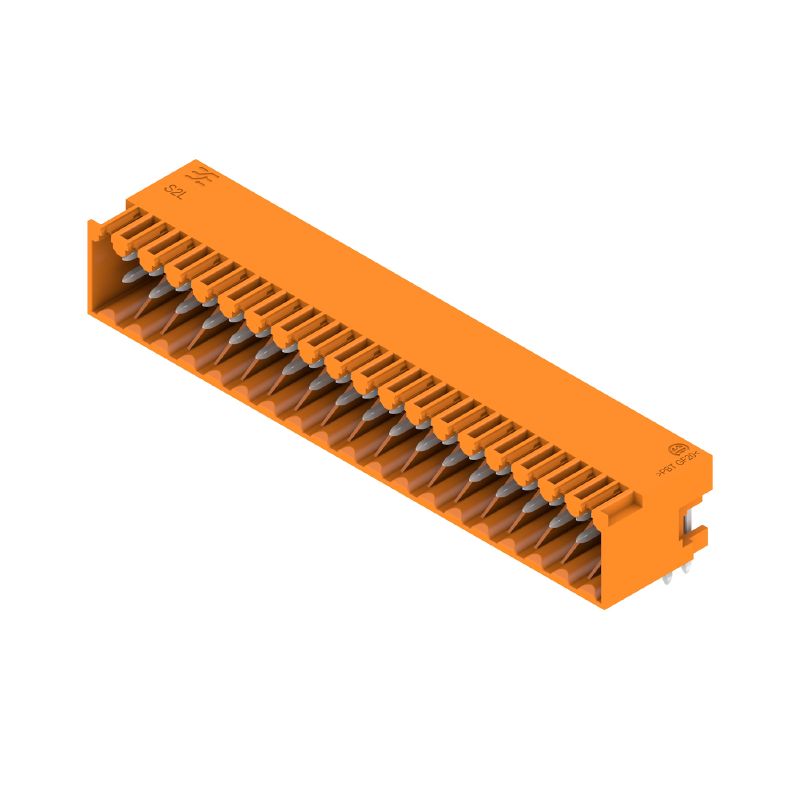

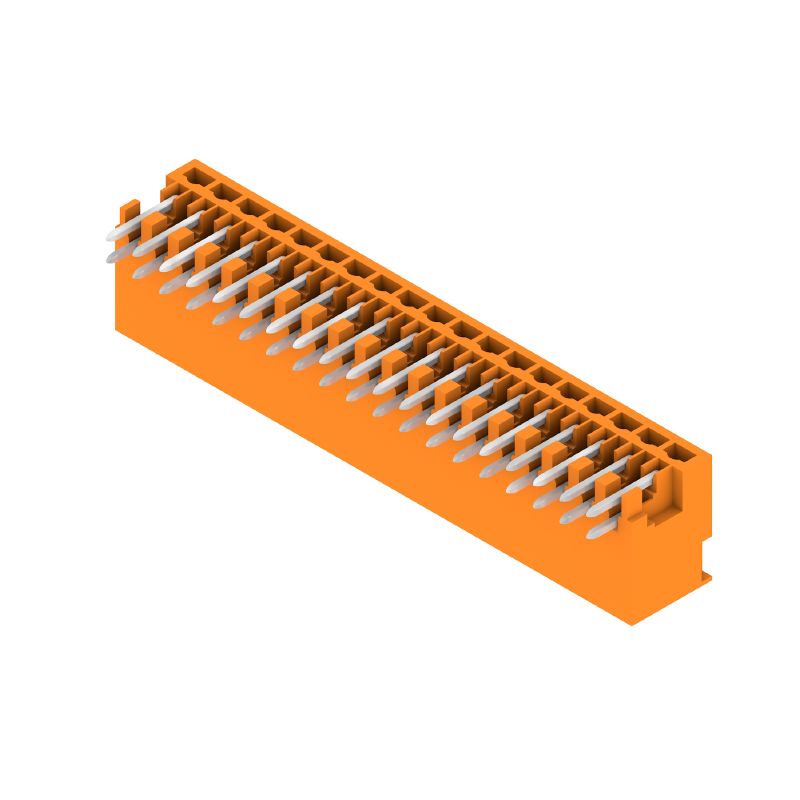

2556160000 - 3.5mm Male PCB Connector, 38 Poles at 90° Angle (Pack of 24)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the S2L series PCB plug-in connector, designed for reliability and efficiency This male header features a closed side and utilizes THT solder connection with a 35 mm pitch, accommodating 38 poles at a 90° angle Each solder pin extends 35 mm in length and is treated with a durable tin finish Environmentally compliant, this connector is packaged with care It supports a rated voltage of 250 V and a current of 10 A in accordance with IEC standards, and 150 V with 10 A under UL standards, making it a robust choice for various applications.

Features and Benefits:

•Designed for PCB plug-in connections with a male header configuration.

•Closed side design for enhanced functionality.

•Compliant with RoHS without any exemptions.

•Touch-safe protection according to DIN VDE guidelines.

•Compatible with various mounting and connection types in electronic applications.

Specifications:
