2542610000 - 3.81mm 7-Pole PCB Connector with PUSH IN Design (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

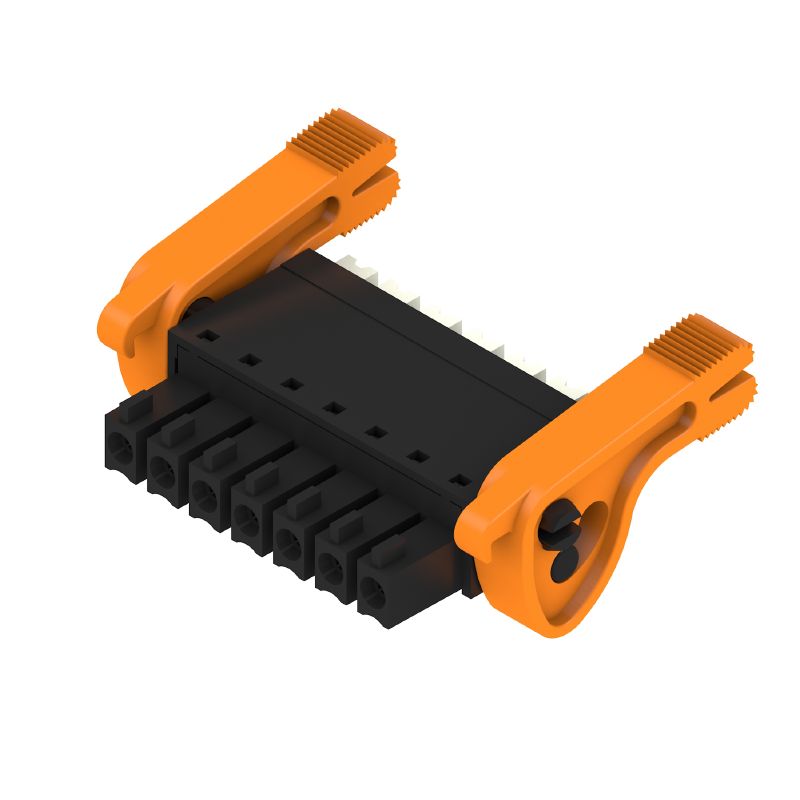

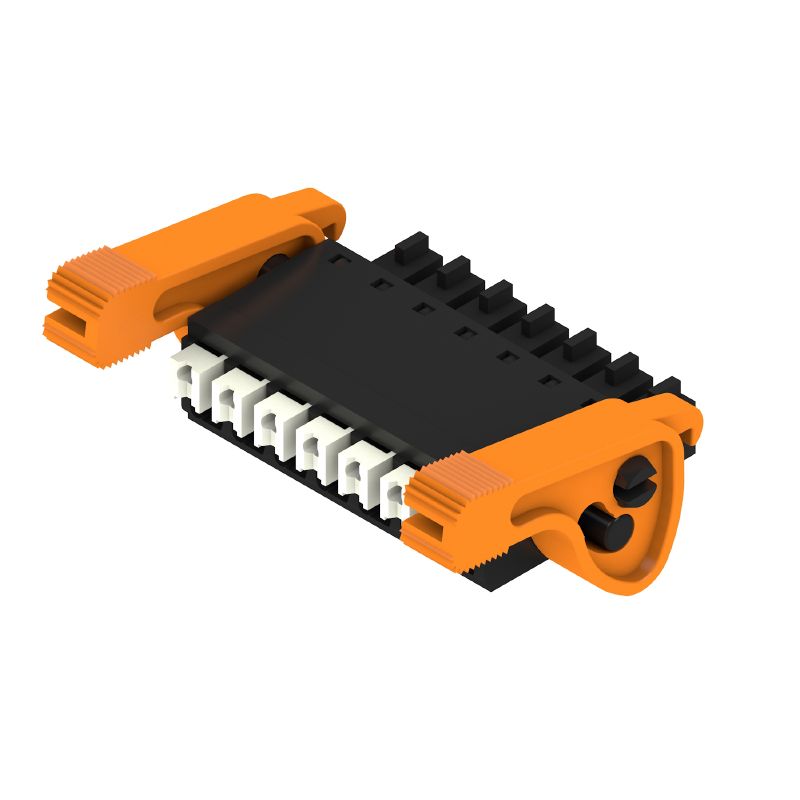

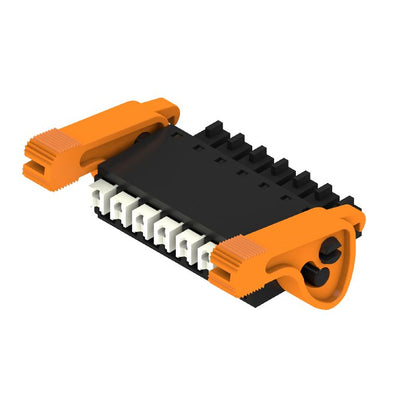

Introducing the BCF 381/07/180LR AU BK BX, a versatile female PCB plug-in connector with a precise 381 mm pitch and seven poles Designed for a 180° orientation, it features a convenient PUSH IN connection system complete with an actuator for easy operation The connector accommodates wires with a maximum clamping capacity of 15 mm² With impressive ratings, it is IEC certified for up to 320 V at 17.

5 A, supporting wire sizes from 014 to 15 mm² Additionally, it meets UL standards for 300 V at 10 A, suitable for wire gauges ranging from AWG 26 to AWG 16 This product comes neatly packaged in a box, making it a great choice for your electronic connection needs.

Features and Benefits:

•Compliant with RoHS and has no SVHC above 0.1 wt%.

•Safe from finger touch as per DIN VDE 57 106.

•Can be coded for secure connections.

•Plugging cycles rating of 25.

•Pulling force per pole can reach up to 7 N.

•Plugging force per pole can reach up to 8 N.

Specifications:
