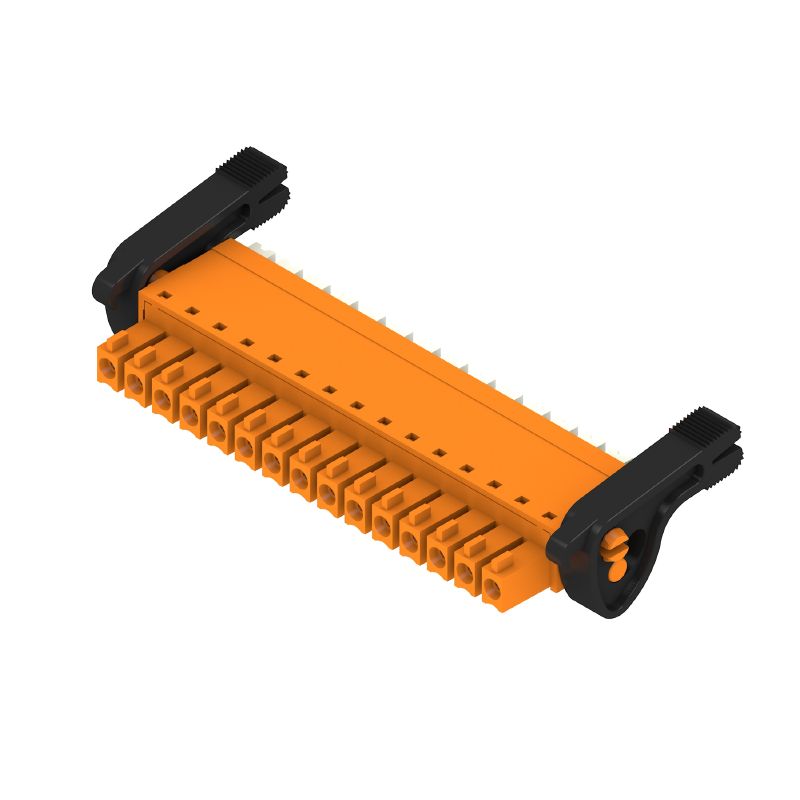

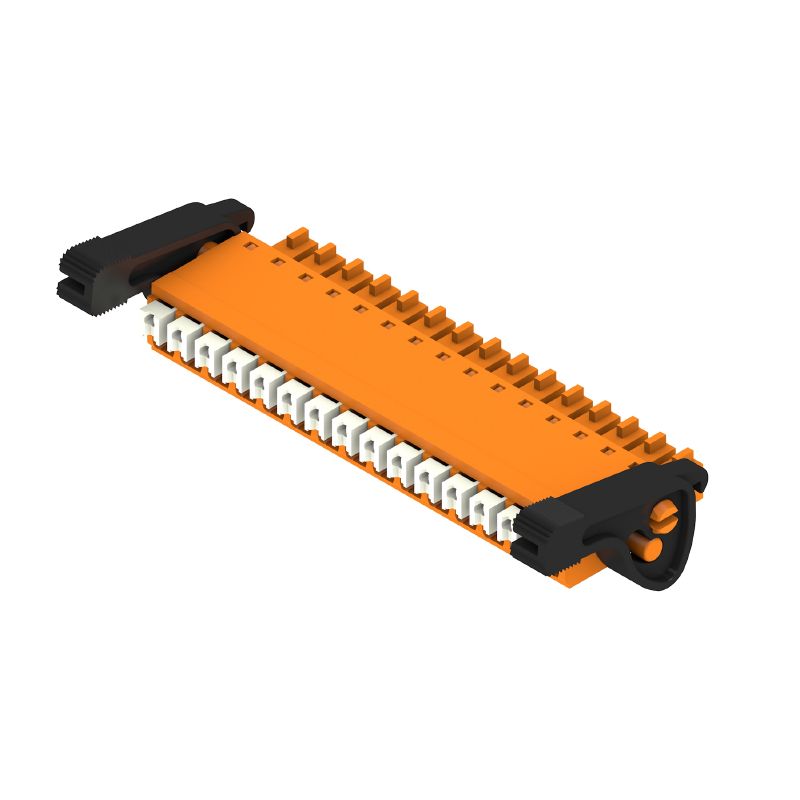

2542500000 - 3.81mm Female PCB Connector, 15 Poles, Push-In Design (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable female PCB plug-in connector featuring 15 poles and a 381 mm pitch This connector is engineered with a push-in design and an actuator, providing a 180° outlet for conductors It supports a clamping range suitable for conductor sizes up to 15 mm² Compliant with IEC standards of 320 V at 175 A and UL standards of 300 V at 10 A, this connector is packed securely in a box for easy storage and transport.

Perfect for various electrical applications, it offers both functionality and reliability.

Features and Benefits:

•Compliant with RoHS without exemptions.

•No SVHC above 0.1 wt%.

•Can be coded for secure connections.

•Safe from finger touch as per DIN VDE 57 106.

•IP20 rating when plugged, IP10 when unplugged.

•Gold-plated contact surface for reliable conductivity.

•Compatible with a variety of wire sizes from AWG 26 to AWG 16.

Specifications:
