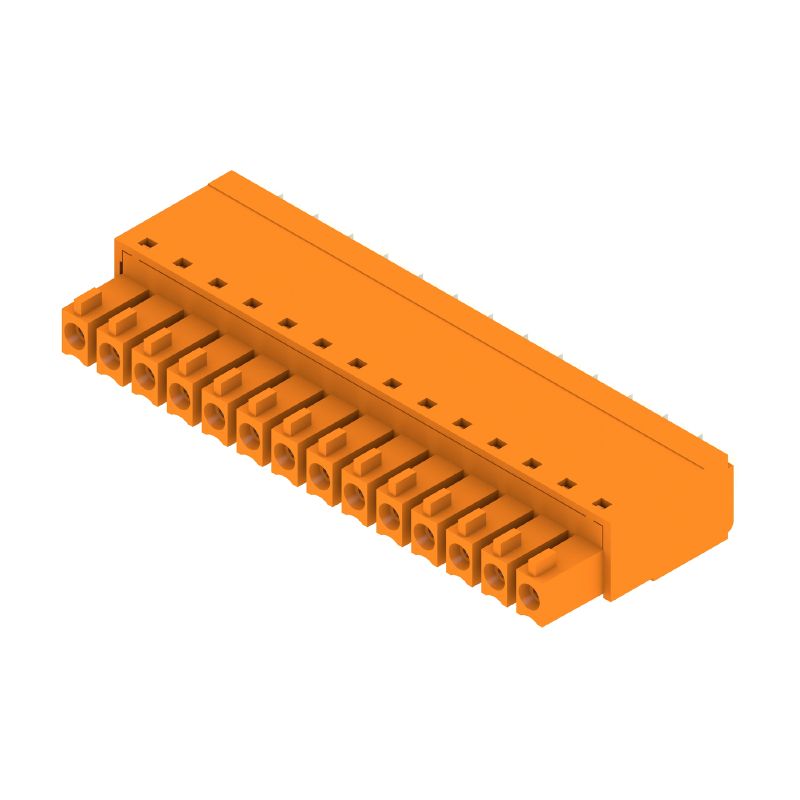

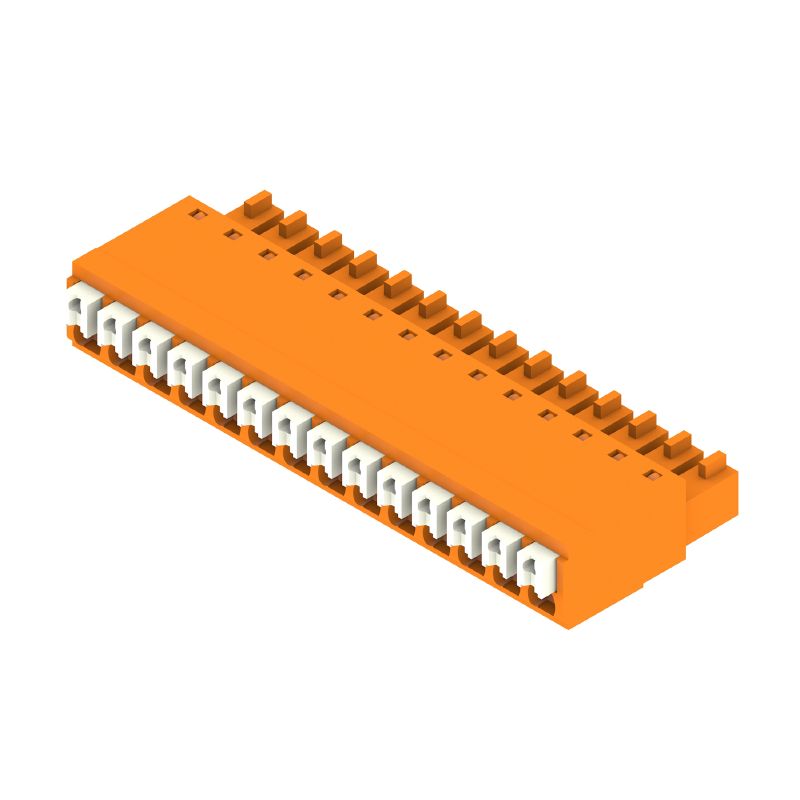

2541480000 - 3.81mm Pitch Female Connector with PUSH IN Mechanism (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BCF 381/14/180 AU OR BX, a practical PCB plug-in female connector that boasts a 381 mm pitch and offers 14 conductive poles with a 180° angle for easy connectivity Engineered with a PUSH IN mechanism and an actuator, this design simplifies the wire insertion process, accommodating wire sizes of up to 15 mm² The connector is versatile, fulfilling various electrical specifications with IEC ratings of 320 V and 17.

5 A, along with UL ratings of 300 V and 10 A Although marked as discontinued, this product will remain accessible for purchase until August 31, 2025, and is conveniently packaged in boxes for your needs.

Features and Benefits:

•PUSH IN wire connection method with actuator.

•Touch-safe protection compliant with DIN VDE standards.

•Can be coded for application flexibility.

•Easy to install with a claw mechanism requiring a max insertion force of 8 N.

•Environmentally compliant with RoHS.

•Surge voltage capability of 2.5 kV.

Specifications:
