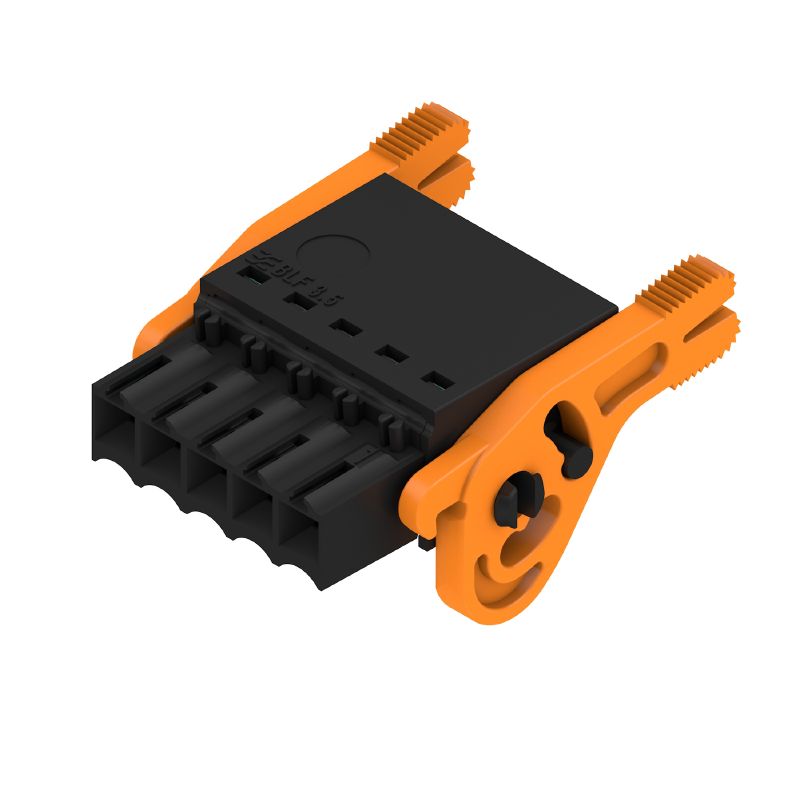

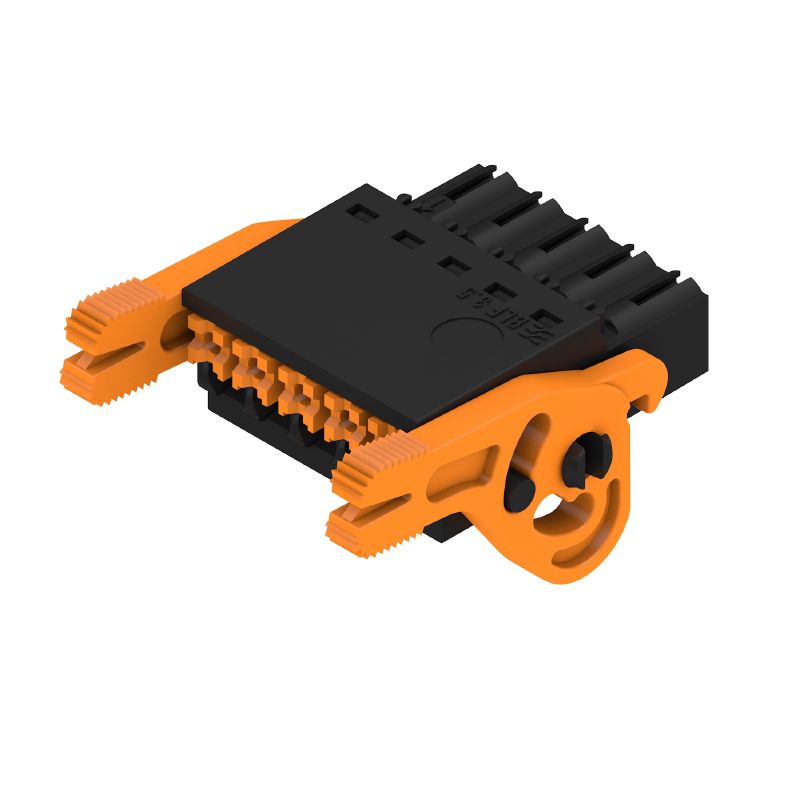

2459870000 - 3.50mm 5-Pole PCB Connector with PUSH IN Mechanism (Pack of 72)

2459870000 - 3.50mm 5-Pole PCB Connector with PUSH IN Mechanism (Pack of 72)

SKU: SKU: 2459870000   Download PDF

Select a Variant:
  • 2459870000 - 3.50mm 5-Pole PCB Connector with PUSH IN Mechanism (Pack of 72)
Qty:
Regular price Now $293.53   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $293.53 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the convenience of this PCB plug-in connector, designed with a female plug that has a pitch of 350 mm It features a 180° arrangement of 5 poles, incorporating a user-friendly PUSH IN mechanism complete with an actuator With a maximum clamping range of 15 mm², this connector is efficiently packaged in a box, making it an ideal choice for your electronic projects.

Features and Benefits:

    •Maximum rated current of 17.5 A at 320 V according to IEC standards.

    •Compatible with wire cross-sections from 0.14 mm² to 1.5 mm².

    •Touch-safe protection compliant with DIN VDE standards.

    •Can be coded for specific applications.

    •Lightweight and compact design suitable for various installations.

Specifications:

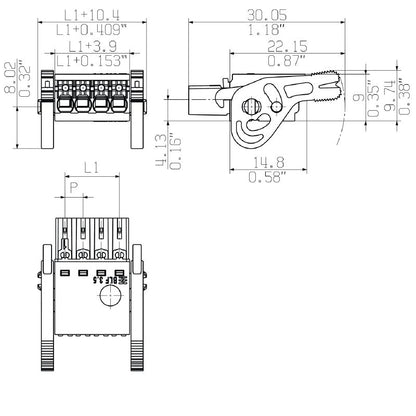

 Depth 30.05 mm
 Height 15.08 mm
 Width 24.4 mm
 Rated voltage 320 V
 Rated current 17.5 A
 Material PA GF
 Conductor outlet direction 180°
 Protection degree IP20
 Plugging cycles 25
 Volume resistance ≤5 mΩ
 Temperature range (operating) -50 °C to 120 °C
 Temperature range (installation) -30 °C to 100 °C
 Net weight 4.479 g
