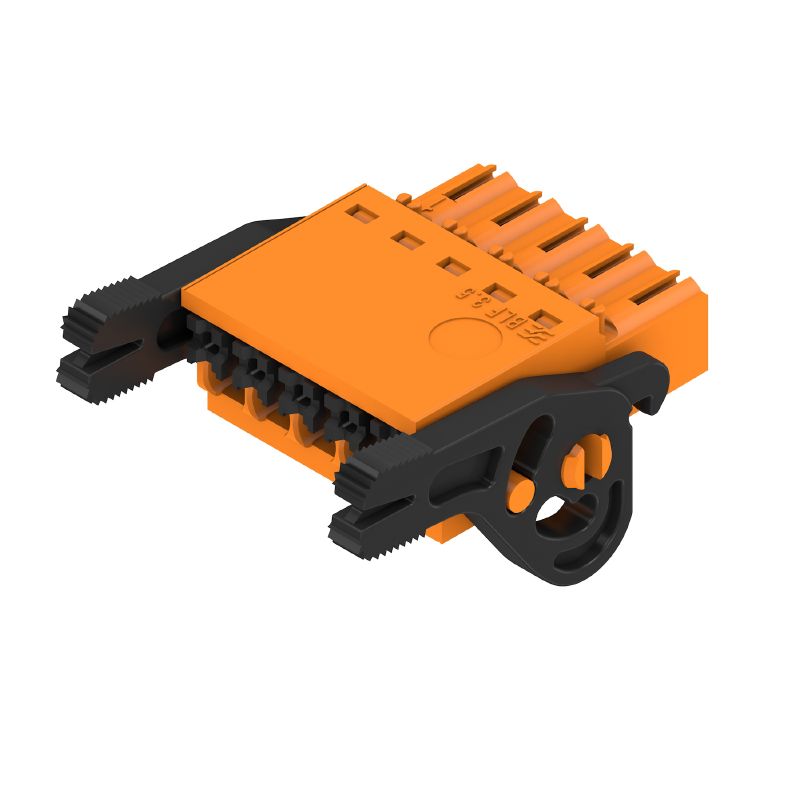

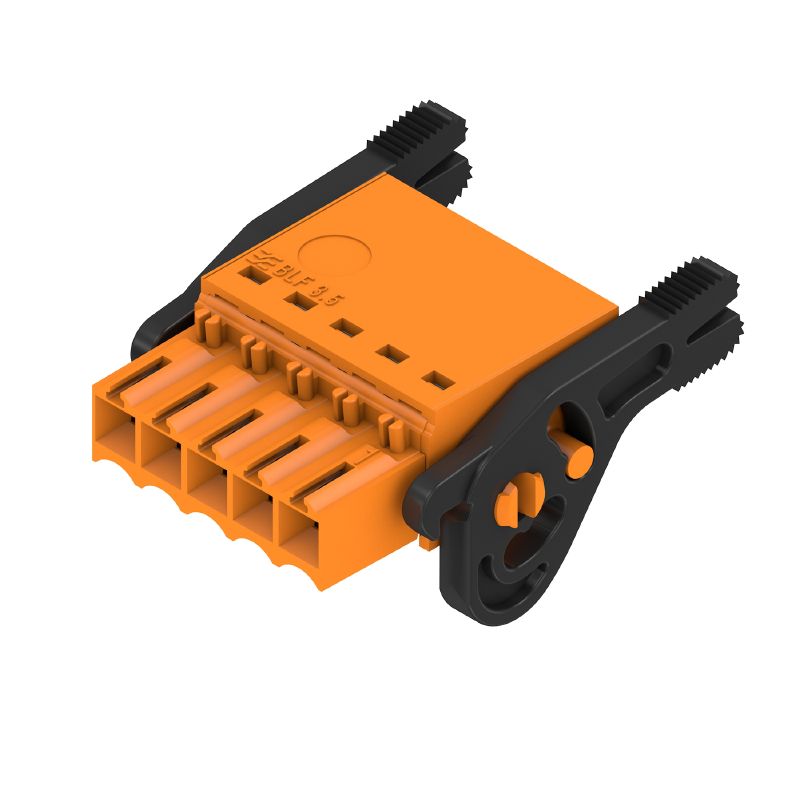

2459710000 - 3.50mm Female PCB Connector, 5 Poles, 180° Orientation (Pack of 72)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile female plug PCB connector tailored for field use This connector boasts a 350 mm pitch and accommodates 5 poles, ensuring reliable connectivity With its 180° orientation and a convenient PUSH IN connection method, setup is straightforward It supports wire cross-sections ranging from 014 mm² to 15 mm², making it adaptable for various applications Compliant with RoHS standards, this connector comes packaged in boxes for easy ordering, making it an excellent choice for your wiring needs.

Features and Benefits:

•PUSH IN wire connection method allows for easy installation.

•Touch-safe protection as per DIN standards.

•Can be coded to prevent incorrect connections.

•Made with durable insulating materials.

•High-temperature resistance suitable for various environments.

•Compatible with a range of wire sizes from AWG 16 to AWG 26.

•General electrical connections in PCB assemblies.

•Field connections for modular wiring systems.

Specifications:
