2444280000 - 12-Pole 3.81mm PCB Male Connector, 180° Angle (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

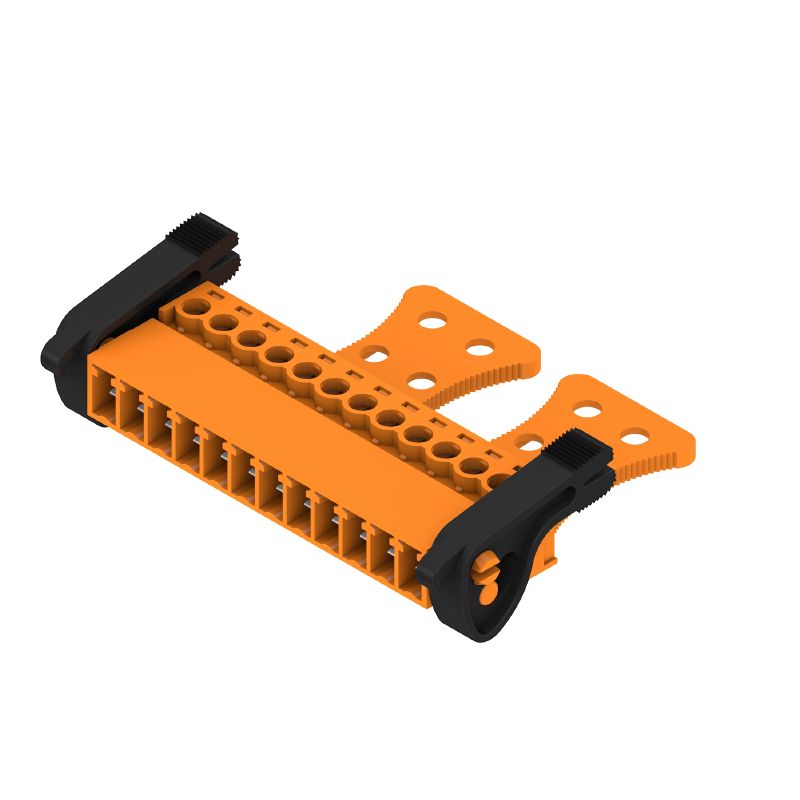

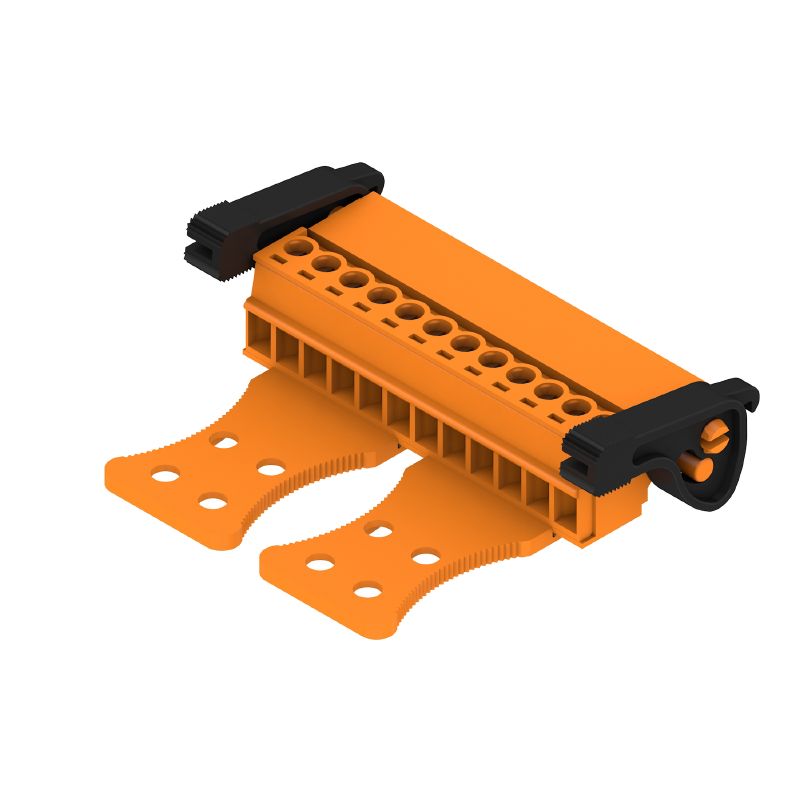

Introducing a versatile PCB plug-in male connector, designed with 12 poles aligned at a 180° angle and a pitch of 381 mm This connector is equipped with a clamping yoke, allowing for secure and reliable connections It can accommodate conductors up to a maximum size of 15 mm² Each unit comes neatly packaged in a box, making it easy to store and transport.

Features and Benefits:

•IEC rated at 320 V / 17.5 A / 0.2 - 1.5 mm².

•UL rated 300 V / 10 A / AWG 28 - AWG 16.

•Clamping yoke connection method.

•Can be coded for specific applications.

•Finger-safe design when plugged and back-of-hand-safe when unplugged.

•Passed various type tests for durability and pull-out strength.

•Suitable for use in field connections within the OMNIMATE Signal series.

Specifications:
