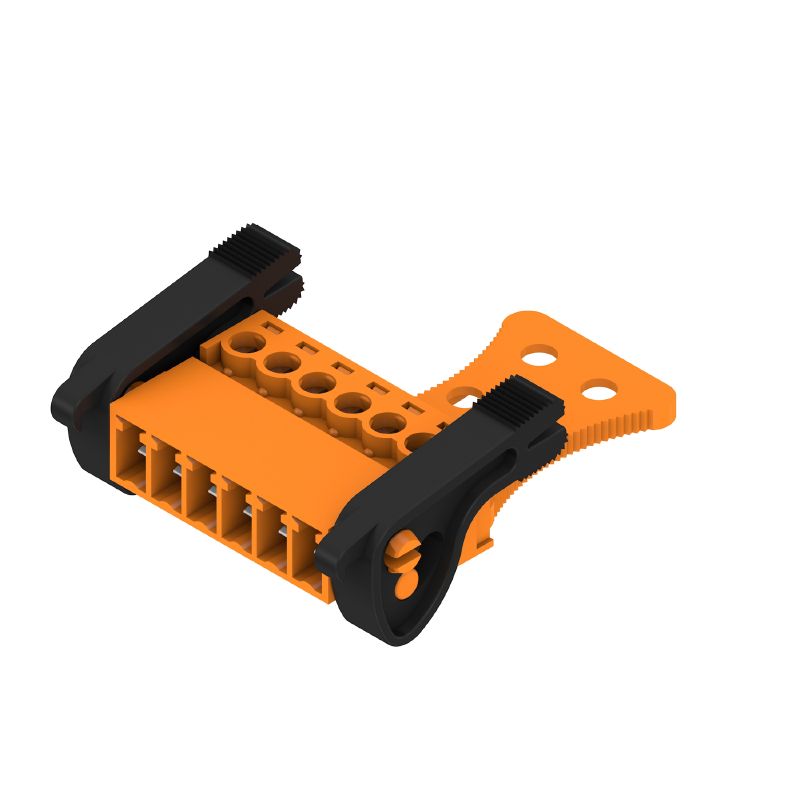

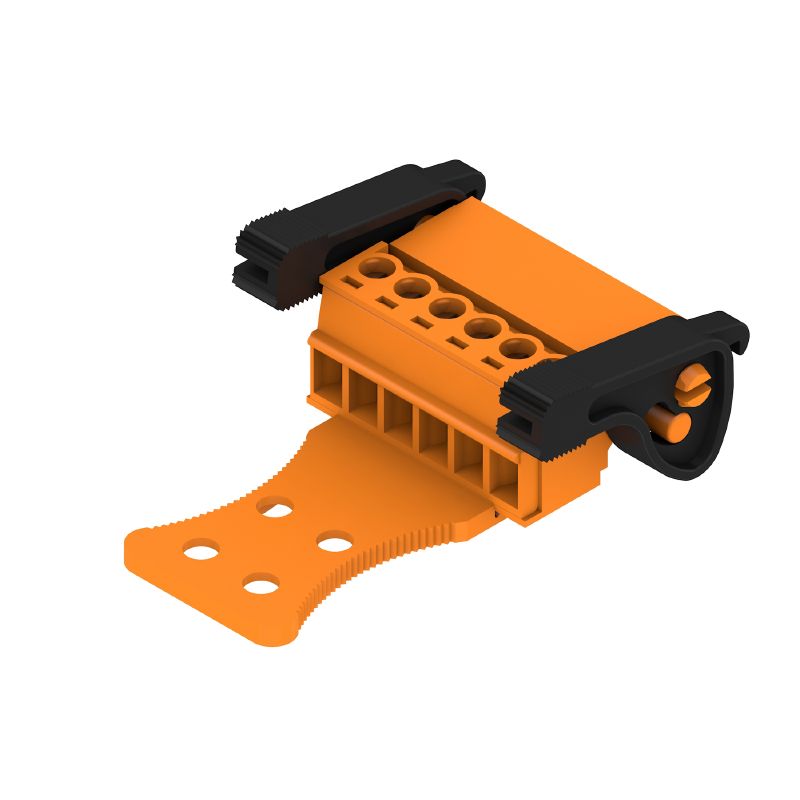

2444270000 - 3.81mm 6-Pole Male PCB Connector with Clamping Yoke (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This male plug PCB connector features a 381 mm pitch and six poles, employing a reliable clamping yoke connection It accommodates a maximum clamping capability of 15 mm² Designed to meet IEC specifications, this component can operate at voltages of up to 320 V and currents of 175 A, as well as complying with UL standards for 300 V and 10 A Conveniently packaged in a box, it also boasts essential certifications including RoHS compliance and UL certification E60693, ensuring it meets industry safety and environmental requirements.

Features and Benefits:

•Box packaging.

•Field connection type.

•Single row design.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for specific applications.

•Durable with a rated lifetime of 25 plugging cycles.

•Designed for use in various electrical connection applications where a compact, reliable connection is required..

Specifications:
