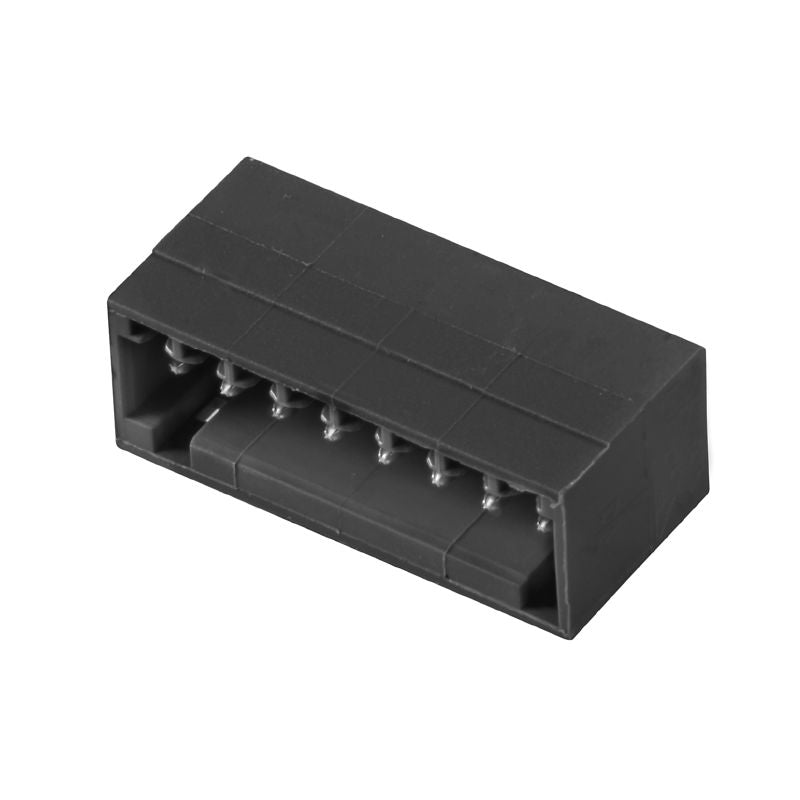

2439810000 - 2.50mm Male PCB Connector, 8 Poles, 90° Angle (Pack of 125)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SL 250/08/90G 32SN BK BX, a reliable PCB plug-in connector that features a male header tailored for through-hole soldering With a compact 250 mm pitch, this connector supports 8 poles at a convenient 90° angle Certified by UL (certificate number E60693), it operates efficiently at a voltage of 320 V and a current capacity of 6 A, meeting IEC standards The connector is neatly packaged in a box, ensuring safe storage and handling.

Features and Benefits:

•Compliant with RoHS standards.

•Touch-safe protection according to DIN VDE 57 106.

•Finger-safe when unplugged and back-of-hand-safe when plugged.

•THT solder connection.

•Durable design with up to 25 plugging cycles.

Specifications:
