2152540000 - 5.08mm 4-Pole PCB Female Plug Connector, 180° Angle (Pack of 90)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

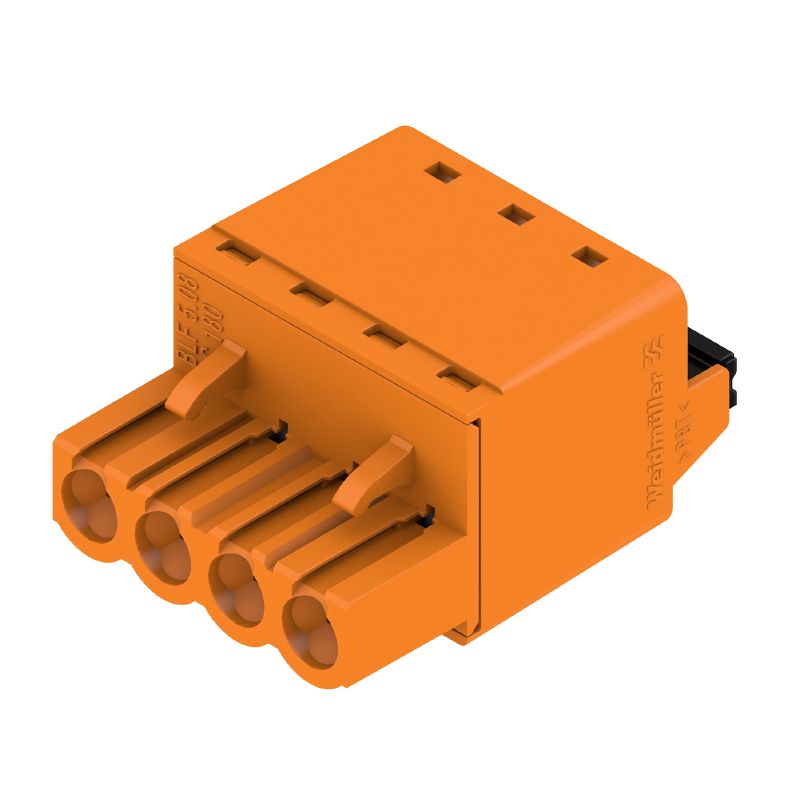

Discover the practicality of this female plug PCB connector, designed with a 508 mm pitch and four poles positioned at a 180° angle Featuring a push-in connection mechanism enhanced by an actuator, it supports a clamping range of up to 331 mm² This connector meets RoHS standards and holds a UL certification (No E60693), ensuring reliability and compliance for your electronic projects.

Features and Benefits:

•Push-in connection method with actuator.

•Compact design with a depth of 27.7 mm, height of 14.2 mm, and width of 20.32 mm.

•Compliant with international standards including IEC 60664-1.

•Touch-safe protection ensuring safety from finger touch.

•Can be coded for connection security.

•Durable construction with a maximum plugging cycle of 25.

•Suitable for use in various electrical and signal connection tasks.

Specifications:
