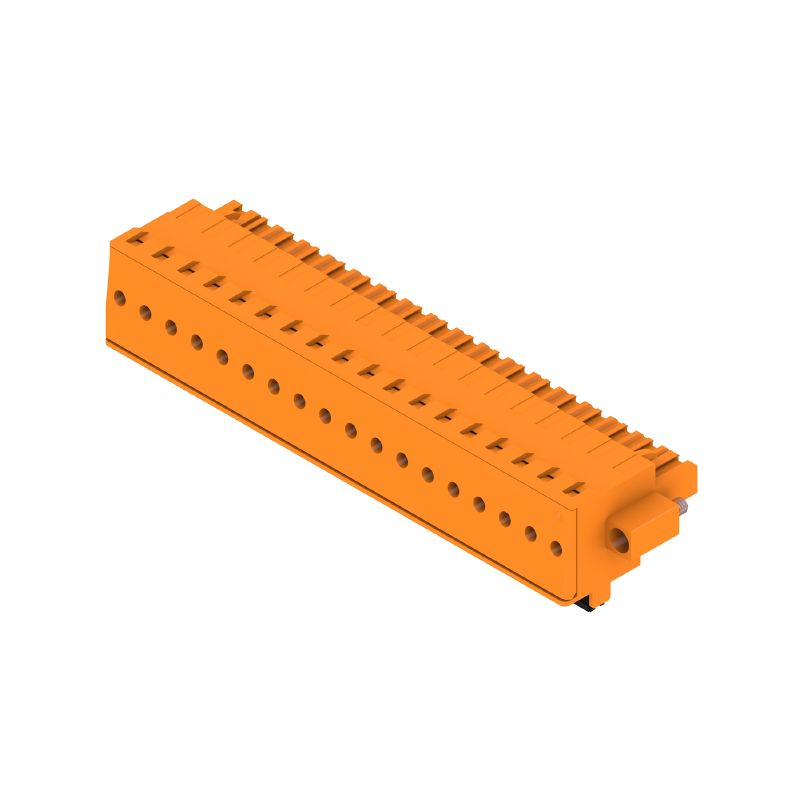

1983050000 - 5.08mm 18-Pole Female Plug Connector, 270° Angle (Pack of 18)

1983050000 - 5.08mm 18-Pole Female Plug Connector, 270° Angle (Pack of 18)

SKU: SKU: 1983050000   Download PDF

Select a Variant:
  • 1983050000 - 5.08mm 18-Pole Female Plug Connector, 270° Angle (Pack of 18)
Qty:
Regular price Now $224.71   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $224.71 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a robust female plug-in connector designed for versatile applications With a 508 mm pitch and 18 poles, this connector operates at a convenient 270° angle, ensuring ease of use Its push-in connection method, enhanced with an actuator, guarantees a secure fit Capable of accommodating wire sizes up to 331 mm², it allows for straightforward installation in enclosures Additionally, this connector meets RoHS compliance standards and boasts multiple certifications, ensuring reliable performance and safety in various environments.

Features and Benefits:

    •Field connection with push-in mechanism.

    •Touch-safe protection according to DIN standards.

    •Can be coded to prevent incorrect connections.

    •Compliant with various international standards.

Specifications:

 Rated voltage (IEC) 400 V / 300 V
 Rated current 24 A / 18.5 A
 Clamping range 0.13 - 3.31 mm² / AWG 26 - AWG 12
 Dimensions Width: 101.24 mm, Height: 20.6 mm, Depth: 26.2 mm
 Operating temperature -50 to 100 °C
 Storage temperature -40 to 70 °C
 Insulating material PBT
 Protection degree IP20
 Flammability rating V-0
 Number of poles 18
