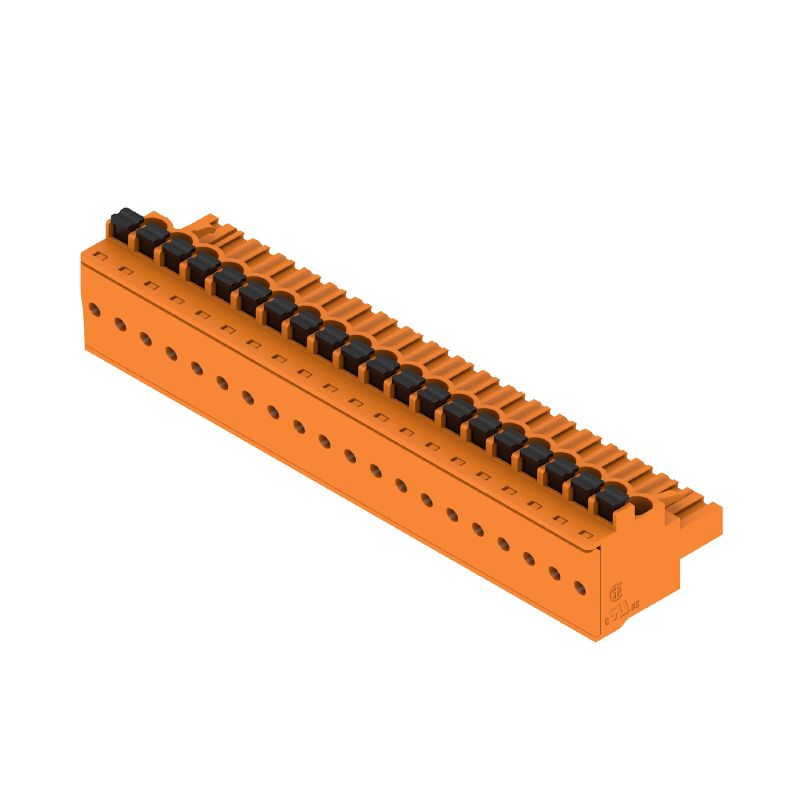

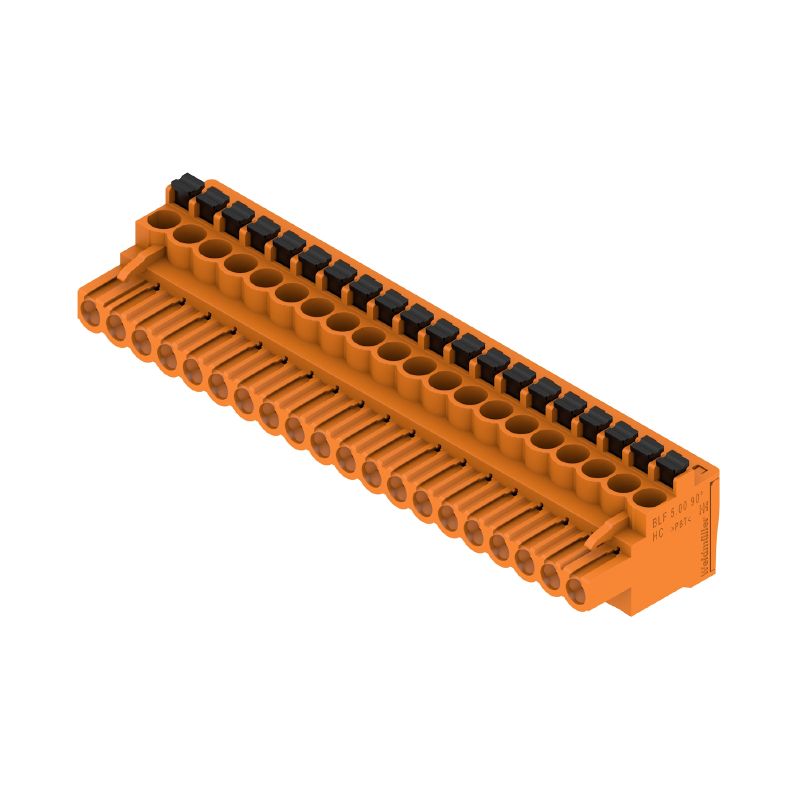

1980360000 - 5.00mm Female Plug PCB Connector with 20 Poles, 90° Angle (Pack of 18)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BLF 500HC/20/90 SN OR BX, a precision-engineered female plug PCB connector featuring a compact 500 mm pitch This connector is capable of supporting up to 20 poles and offers a convenient 90° connection with a push-in actuator for easy installation It boasts a maximum clamping capacity of 331 mm², making it robust for various applications Rated for voltages up to 400 V and capable of handling currents of 24 A according to IEC standards, it also conforms to UL specifications with a voltage rating of 300 V and a current rating of 18.

5 A Packaged securely in a box for efficient delivery, this connector is a reliable choice for your electrical projects.

Features and Benefits:

•Push-in wire connection method with actuator.

•Compact design for 20 poles.

•Suitable for various conductor cross sections.

•Touch-safe protection according to multiple standards.

•Can be coded to prevent incorrect connections.

•Durable with a minimum of 25 plugging cycles.

•Field connection applications.

•Utilized in various electrical wiring systems.
