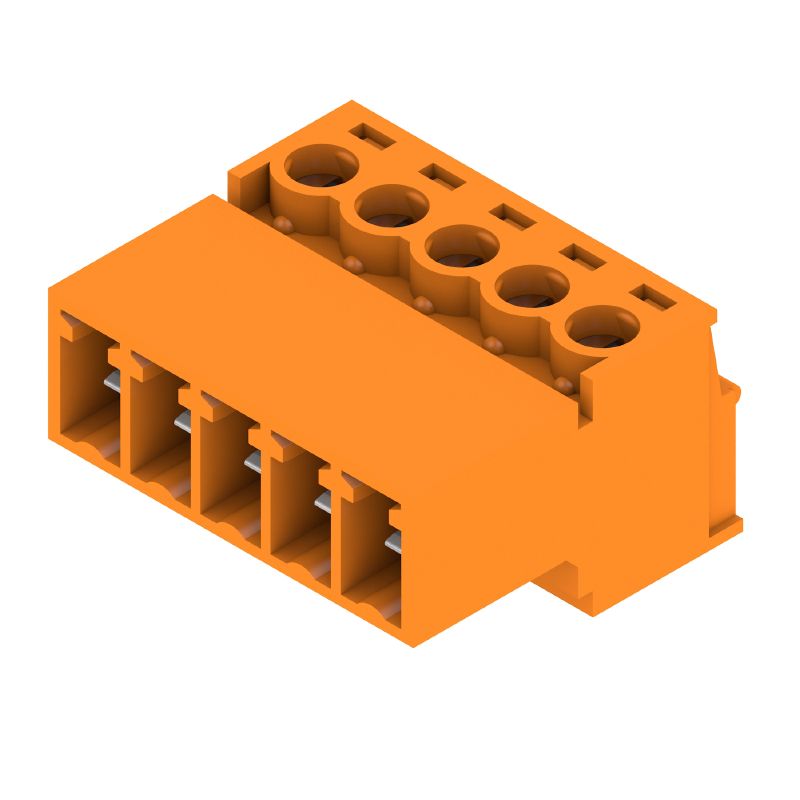

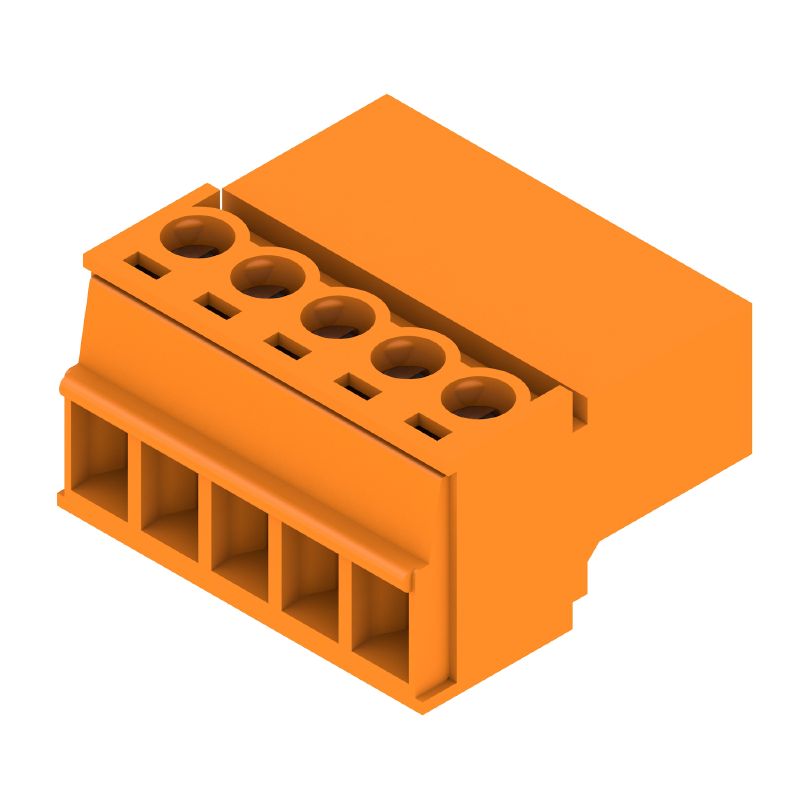

1969800000 - 5-Pole 3.81mm PCB Connector, 180° Angle, RoHS Compliant (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable male PCB plug-in connector designed for seamless functionality With a pitch of 381 mm, this connector features five poles and is engineered for a 180° connection It incorporates a clamping yoke mechanism that accommodates a maximum clamping range of 15 mm² Adhering to RoHS standards, this connector boasts a UL certification under file number E60693 Its performance specifications include an IEC rating of 320 V and a current capacity of 17.

5 A, as well as a UL rating of 300 V with a 10 A capacity Each connector is neatly packaged in a box and is noted as discontinued, but will remain available until August 31, 2025.

Features and Benefits:

•Clamping yoke connection allowing for a clamping range of up to 1.5 mm².

•Compliant with RoHS regulations.

•Field connection type making it versatile.

•Can be coded for secure connections.

•Touch-safe design according to DIN VDE standards.
