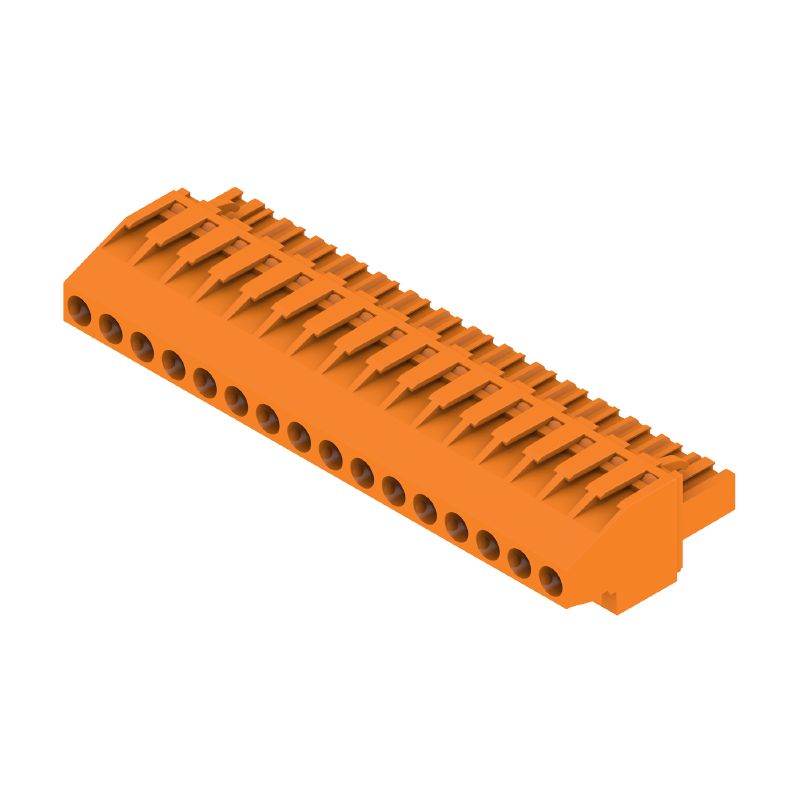

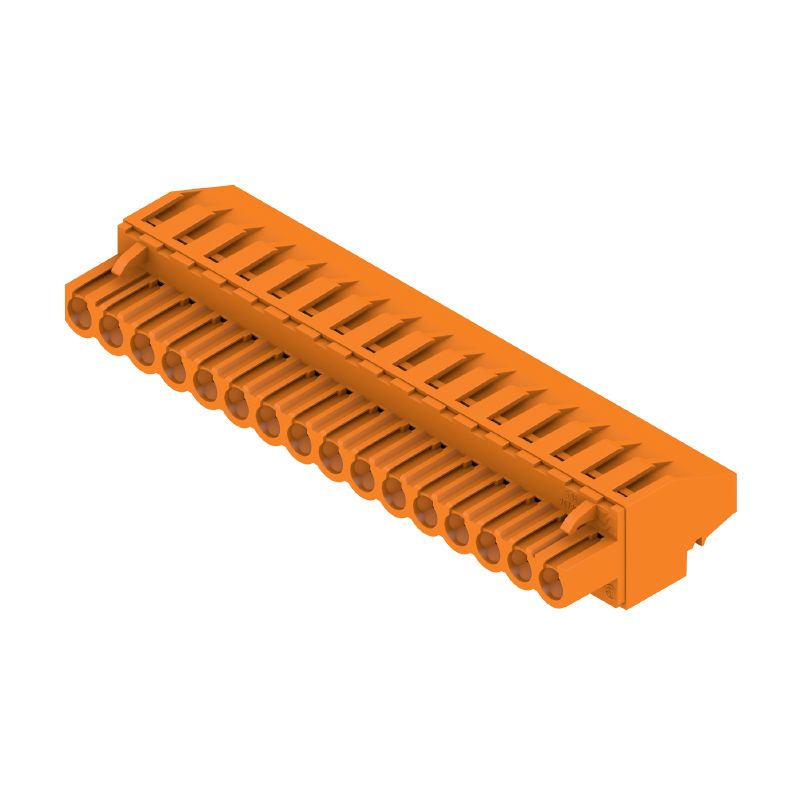

1958740000 - 5mm Female PCB Connector, 16 Poles, 270° Angle (Pack of 18)

1958740000 - 5mm Female PCB Connector, 16 Poles, 270° Angle (Pack of 18)

SKU: SKU: 1958740000   Download PDF

Select a Variant:
  • 1958740000 - 5mm Female PCB Connector, 16 Poles, 270° Angle (Pack of 18)
Qty:
Regular price Now $196.84   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $196.84 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our female PCB plug-in connector, expertly designed with a spacing of 500 mm and featuring 16 poles arranged at a 270° angle This connector boasts a clamping yoke connection capable of accommodating a maximum wire size of 4 mm² It comes neatly packaged in a box and adheres to all RoHS safety standards, ensuring a reliable and environmentally-friendly choice for your electronic projects.

Features and Benefits:

    •Compliant with RoHS standards.

    •Touch-safe protection according to DIN VDE standards.

    •Plugging cycles rated at 25.

    •Supports field connection.

    •Can be coded for additional functionality.

Specifications:

 Rated Voltage (IEC) 400 V
 Rated Current (IEC) 23 A
 Clamping Range 0.2 - 4 mm²
 Pitch 5 mm
 Number of Poles 16

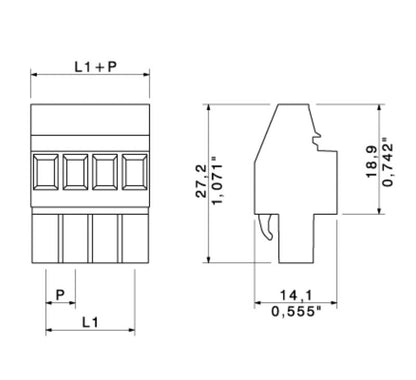

 Depth 27.2 mm
 Height 14.1 mm
 Width 80 mm
 Operating Temperature -50 to 100 °C
 Insulation Resistance ≥ 10^8 Ω
 Color orange
 UL File Number E60693
