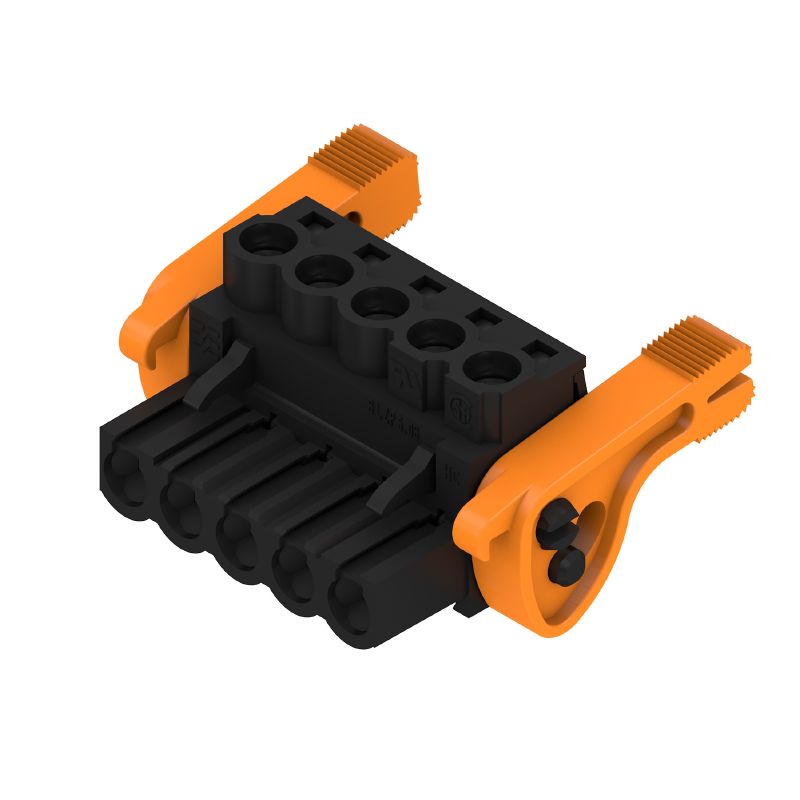

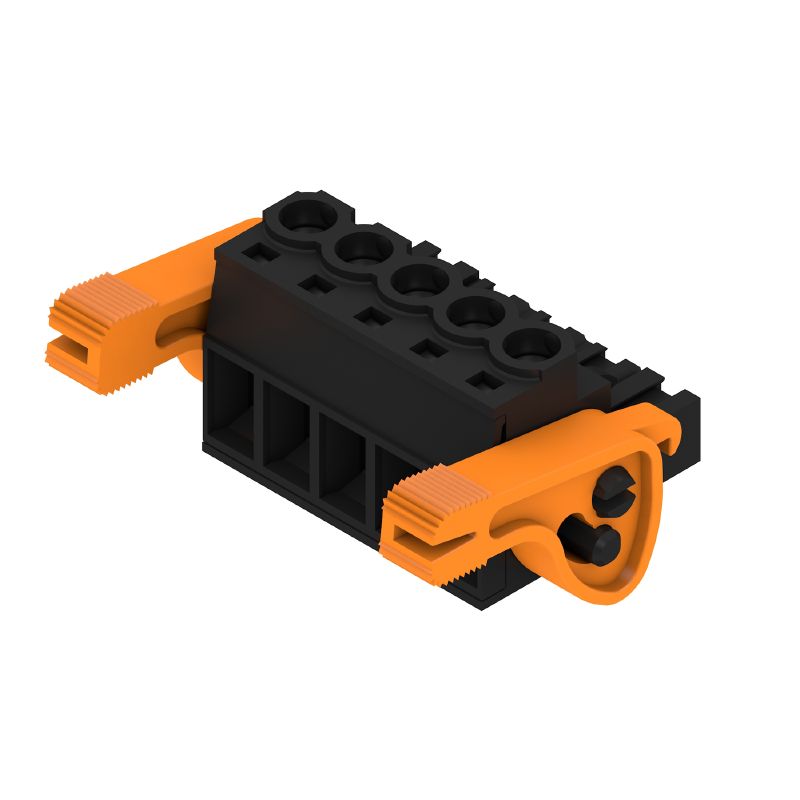

1956570000 - 5-Pole 180° Female PCB Connector, 5.00mm Pitch (Pack of 48)

1956570000 - 5-Pole 180° Female PCB Connector, 5.00mm Pitch (Pack of 48)

SKU: SKU: 1956570000   Download PDF

Select a Variant:
  • 1956570000 - 5-Pole 180° Female PCB Connector, 5.00mm Pitch (Pack of 48)
Qty:
Regular price Now $181.55   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $181.55 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the reliability of this PCB plug-in connector, designed with a female connector and a 500 mm pitch Featuring a total of 5 poles, it allows for a 180° connection The clamping yoke connection is capable of handling a maximum wire size of 4 mm² Approved under ROHS standards and compliant with UL certification E60693, this connector ensures a secure and efficient connection for your electronic needs.

Features and Benefits:

    •IEC rated for 400 V / 23 A / 0.2 - 4 mm².

    •UL rated for 300 V / 20 A / AWG 26 - AWG 12.

    •Clamping yoke connection method.

    •Can be coded.

    •Touch-safe protection according to DIN VDE standards.

Specifications:

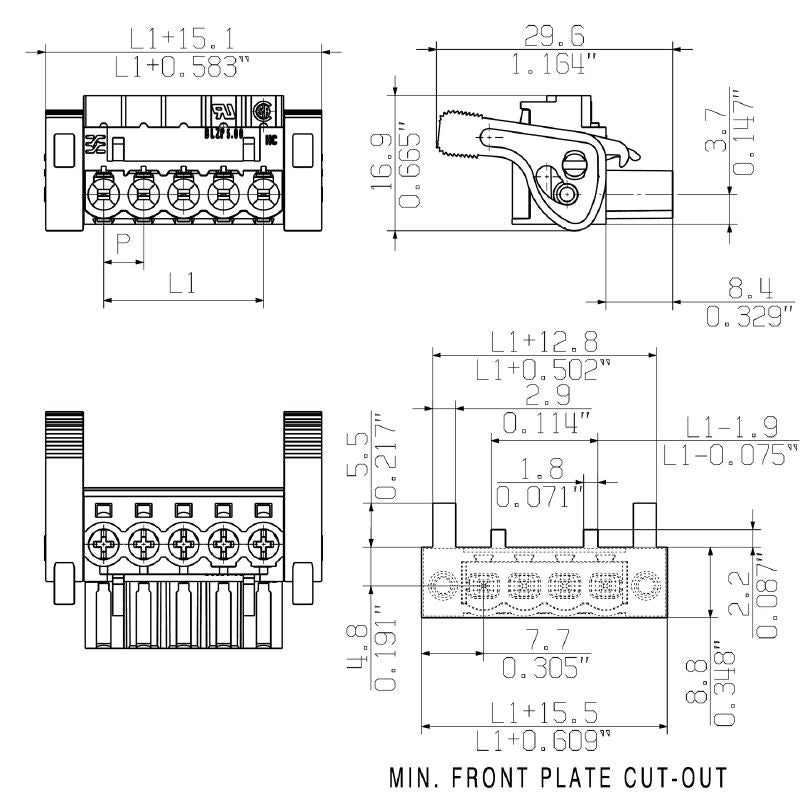

 Depth 29.6 mm
 Height 16.9 mm
 Width 34.8 mm
 Pitch 5 mm
 Number of poles 5
 Rated cross-section 4 mm²
 Protection degree IP20
 Insulating material PBT
 Insulation resistance ≥ 10^8 Ω
 UL 94 flammability rating V-0
 Operating temperature, min -50 °C
 Operating temperature, max 100 °C
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
