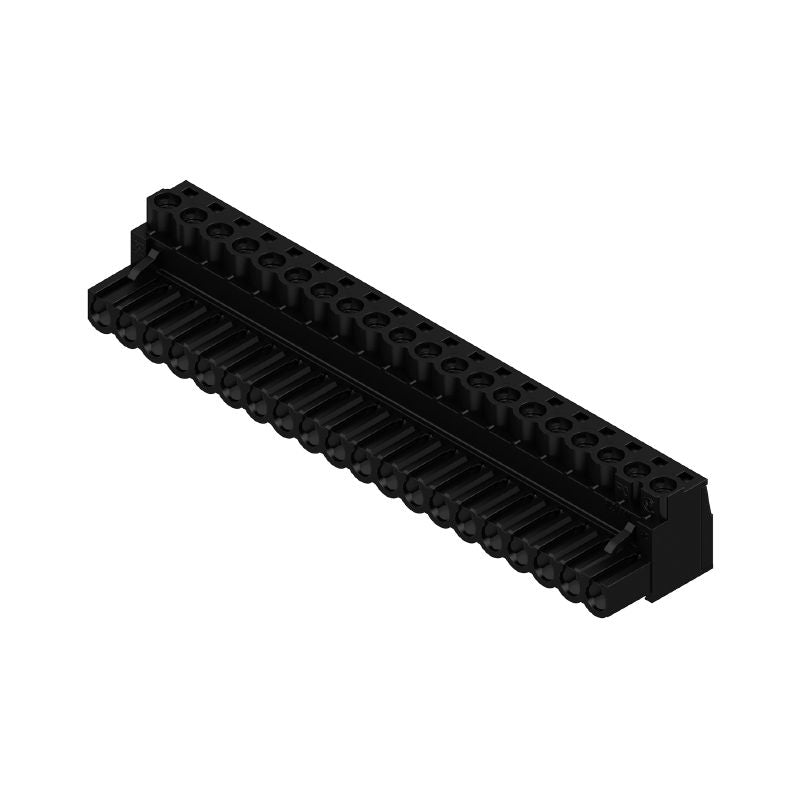

1955390000 - 5.00mm 20-Pole Connector 180° Angle, RoHS & UL Certified (Pack of 18)

1955390000 - 5.00mm 20-Pole Connector 180° Angle, RoHS & UL Certified (Pack of 18)

SKU: SKU: 1955390000   Download PDF

Select a Variant:
  • 1955390000 - 5.00mm 20-Pole Connector 180° Angle, RoHS & UL Certified (Pack of 18)
Qty:
Regular price Now $236.59   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $236.59 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable PCB plug-in female connector with a 500 mm pitch, featuring 20 poles arranged at a 180° angle for seamless connection Ideal for clamping yoke connections, it accommodates a clamping range of up to 4 mm² Packaged in a convenient box, this connector is easy to handle and ship It also complies with essential standards such as RoHS and UL certifications, ensuring high quality and safety.

The product weighs approximately 33389 grams, making it a lightweight addition to your electronic components.

Features and Benefits:

    •Clamping yoke connection method.

    •Can accommodate conductors with cross-sections from 0.2 mm² to 4 mm².

    •Touch-safe protection according to DIN VDE standards.

    •Temperature range installation from -25°C to 100°C.

    •Coded for secure connection.

    •Compatible with fine-wired conductors.

Specifications:

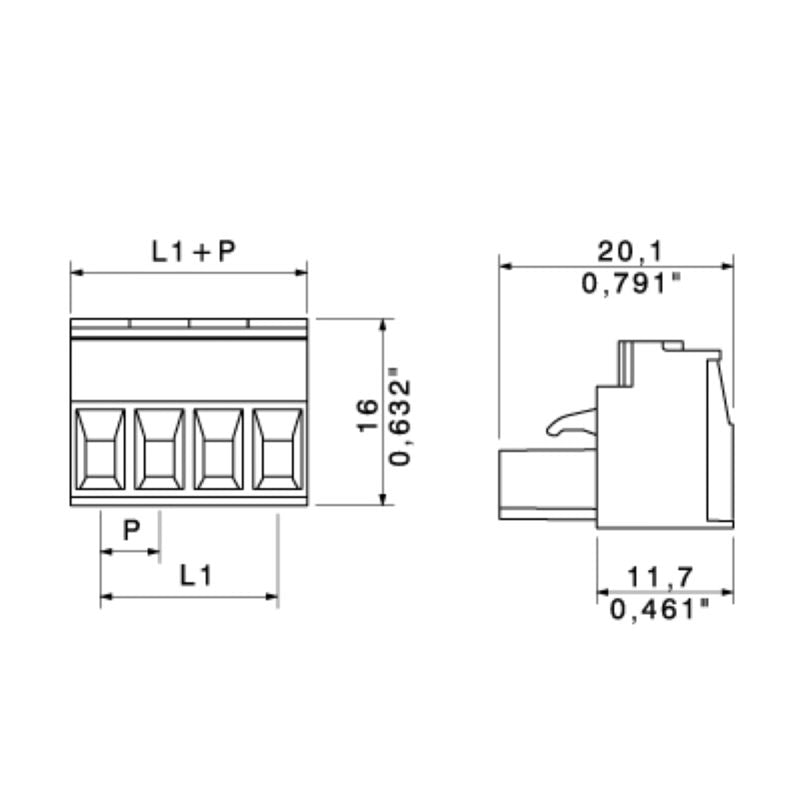

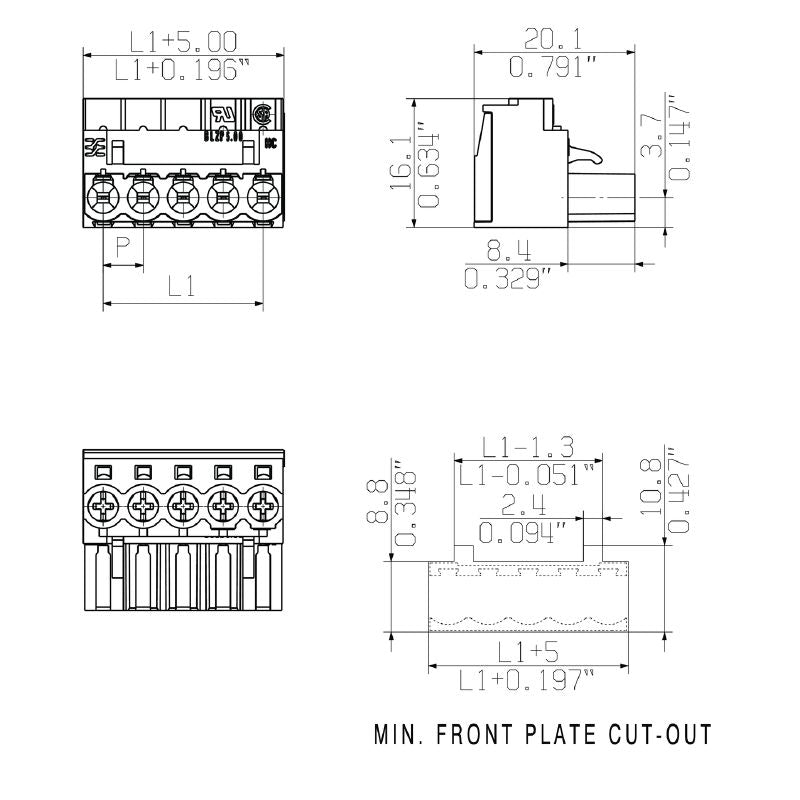

 Depth 20.1 mm
 Height 16 mm
 Width 100 mm
 Rated Voltage IEC: 400 V / 23 A / 0.2 - 4 mm², UL: 300 V / 20 A / AWG 26 - AWG 12
 Pitch 5 mm
 Protection degree IP20
 Operating temperature range -50°C to 100°C
 Material of insulating body PBT
 Insulation resistance ≥ 10^8 Ω
 UL flammability rating V-0
 Volume resistance ≤ 5 mΩ
 Stripping length 7 mm
 Plugging cycles 25
 Pulling force/pole, max 9 N
 Plugging force/pole, max 10 N
