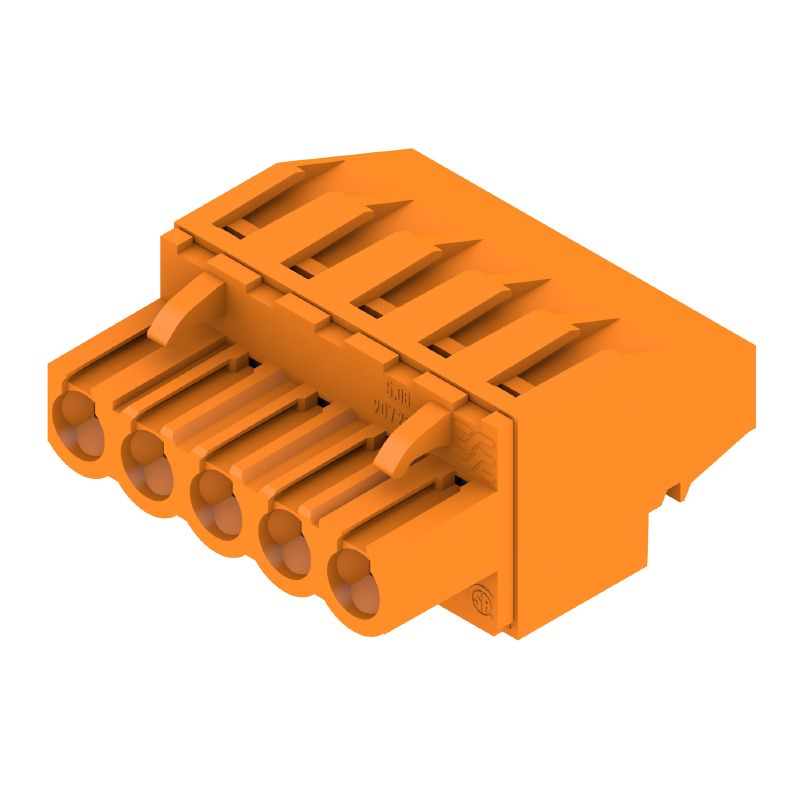

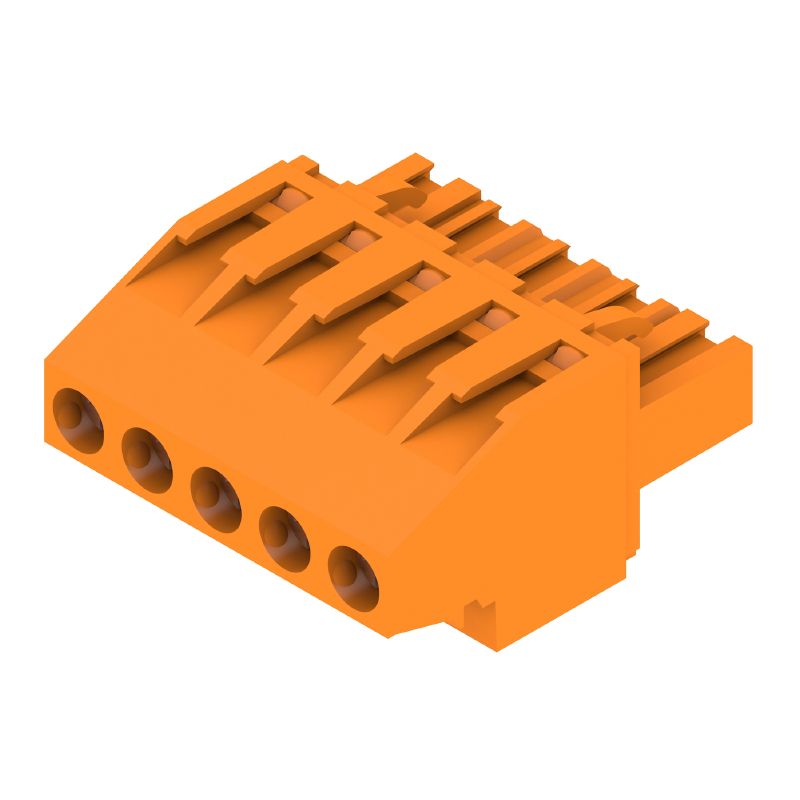

1948820000 - 5-Pole PCB Connector, 5.08mm Pitch, 23A, 270° Contact (Pack of 72)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BLZP 508HC/05/270 SN OR BX, a highly efficient female plug PCB connector With a 508 mm pitch, this connector is perfect for field connections and accommodates wire sizes of up to 4 mm² It features five poles with a contact orientation of 270°, ensuring versatile installation Rated for a maximum voltage of 400 V and capable of handling a current of 23 A in compliance with IEC standards, this connector prioritizes safety and performance.

The clamping mechanism provides a reliable wire connection, making it flexible and easy to use Each order comes in a box containing 72 units, ensuring you have ample supply for your projects.

Features and Benefits:

•Field connection type.

•Clamping yoke connection method.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for non-interchangeability.

•Plugging cycles rated for 25.

•Compliant with RoHS without exemption.

Specifications:
