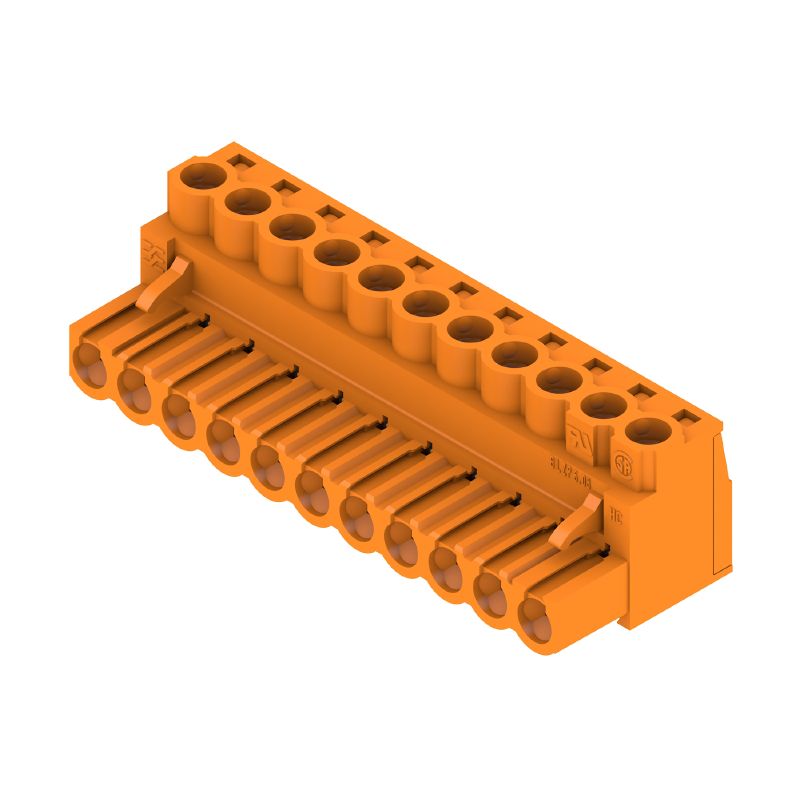

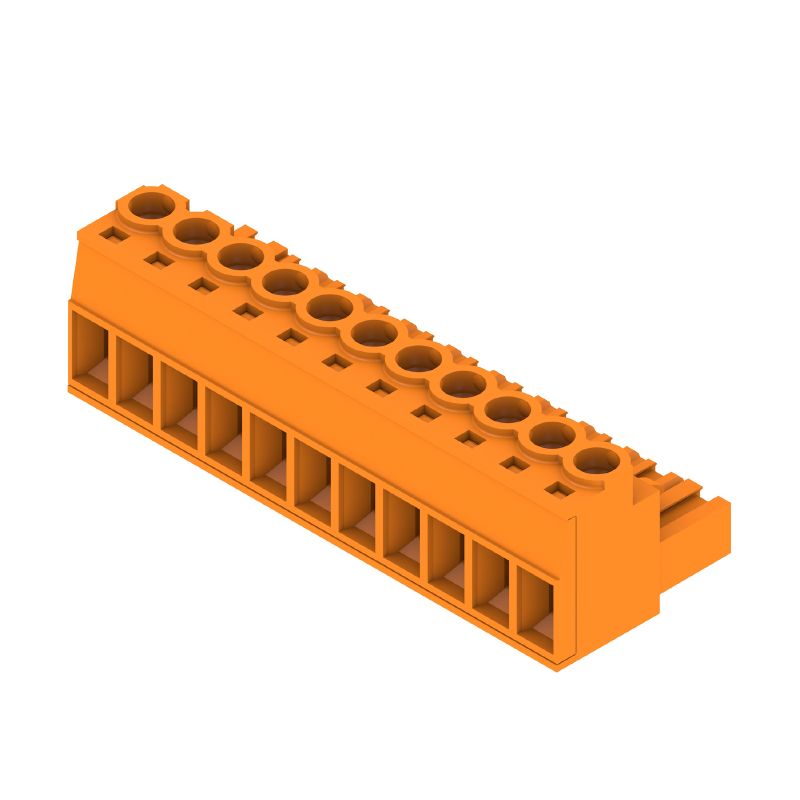

1943670000 - 5.08mm 11-Pole PCB Connector with 180° Clamping Yoke (Pack of 30)

1943670000 - 5.08mm 11-Pole PCB Connector with 180° Clamping Yoke (Pack of 30)

SKU: SKU: 1943670000   Download PDF

Select a Variant:
  • 1943670000 - 5.08mm 11-Pole PCB Connector with 180° Clamping Yoke (Pack of 30)
Qty:
Regular price Now $216.88   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $216.88 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover reliable connectivity with this PCB plug-in connector, featuring a female plug designed with an 11-pin configuration and a 508 mm pitch Tailored for a 180° clamping yoke connection, it accommodates a maximum clamping range of 4 mm² This connector is packaged in a convenient box and meets RoHS compliance standards, proudly certified under UL file number E60693.

Features and Benefits:

    •RoHS compliant.

    •Field connection type with clamping yoke connection.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded for safety.

Specifications:

 IEC Voltage Rating 400 V / 23 A / 0.2 - 4 mm²
 UL Voltage Rating 300 V / 20 A / AWG 26 - AWG 12
 Height 16 mm
 Width 55.88 mm
 Depth 20.1 mm
 Pitch 5.08 mm
 Number of Poles 11
 Clamping Range 4 mm²
 Insulating Material PBT
 Color orange
 Rated Cross-section 4 mm²
 Operating Temperature -50 °C to 100 °C
 Storage Temperature -40 °C to 70 °C
 Plugging Cycles 25
 Volume Resistance ≤5 mΩ
