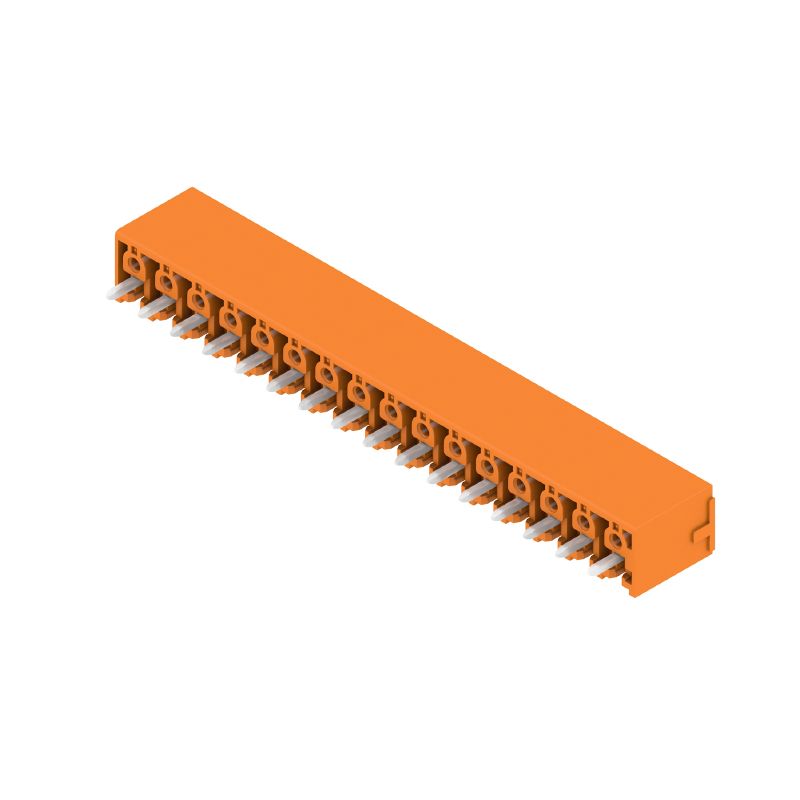

1942980000 - 3.81mm PCB Male Header Connector, 16 Poles, Orange (Pack of 24)

1942980000 - 3.81mm PCB Male Header Connector, 16 Poles, Orange (Pack of 24)

SKU: SKU: 1942980000   Download PDF

Select a Variant:
  • 1942980000 - 3.81mm PCB Male Header Connector, 16 Poles, Orange (Pack of 24)
Qty:
Regular price Now $93.99   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $93.99 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing this male header PCB plug-in connector, designed with a closed side for enhanced function and reliability It features a through-hole technology (THT) solder connection with a 381 mm pitch, accommodating 16 poles aligned at a 180° angle The solder pin length measures 32 mm, and the connector is showcased in a vibrant orange hue, neatly packaged in a sturdy box for your convenience Perfect for your electronic projects!.

Features and Benefits:

    •Designed for THT solder connection with polarity coding.

    •Compliant with RoHS standards without exemptions.

    •Touch-safe protection according to DIN VDE 57 106 and 0470.

    •Meets IEC 60664-1 and IEC 61984 standards.

    •Can withstand a short-time current of 3 x 1s with 76 A.

    •Suitable for use in PCB connections and assembly.

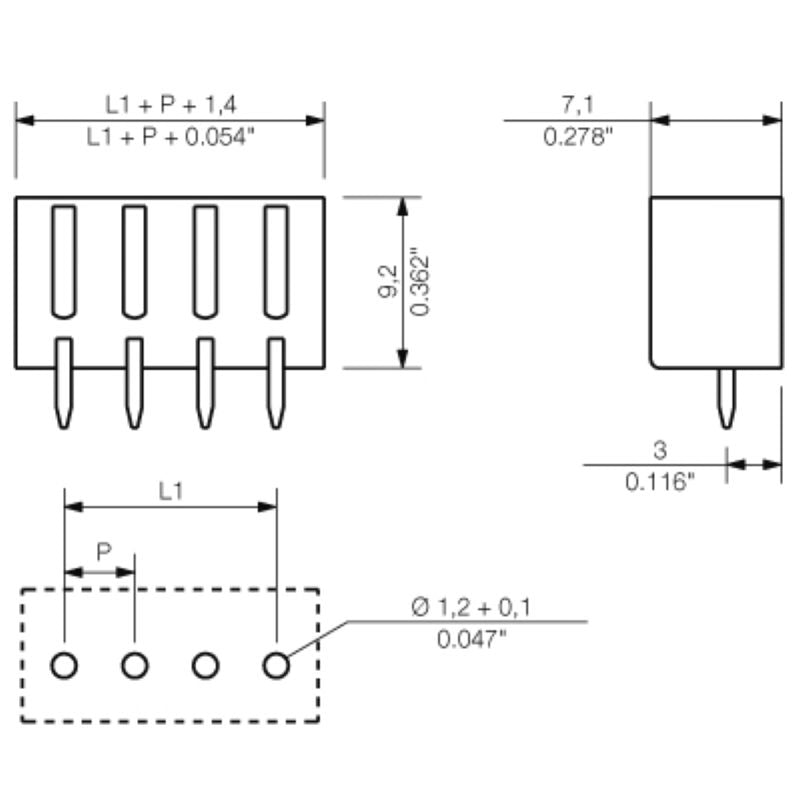

Specifications:

 Number of poles 16
 Solder pin length 3.2 mm
 Rated voltage (Use group B / UL 1059) 300 V
 Rated current (Use group B / UL 1059) 10 A
 Depth 7.1 mm
 Height 12.4 mm
 Width 62.36 mm
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Operating temperature, min. -50 °C
 Operating temperature, max. 120 °C
 Solder eyelet hole diameter 1.2 mm
 Pitch 3.81 mm
 Material PA GF
