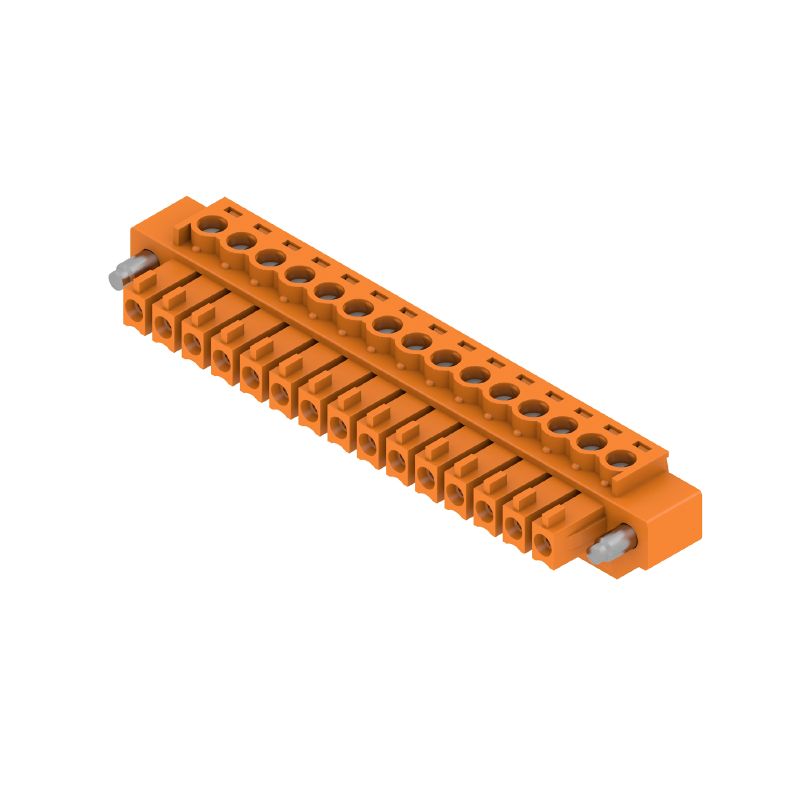

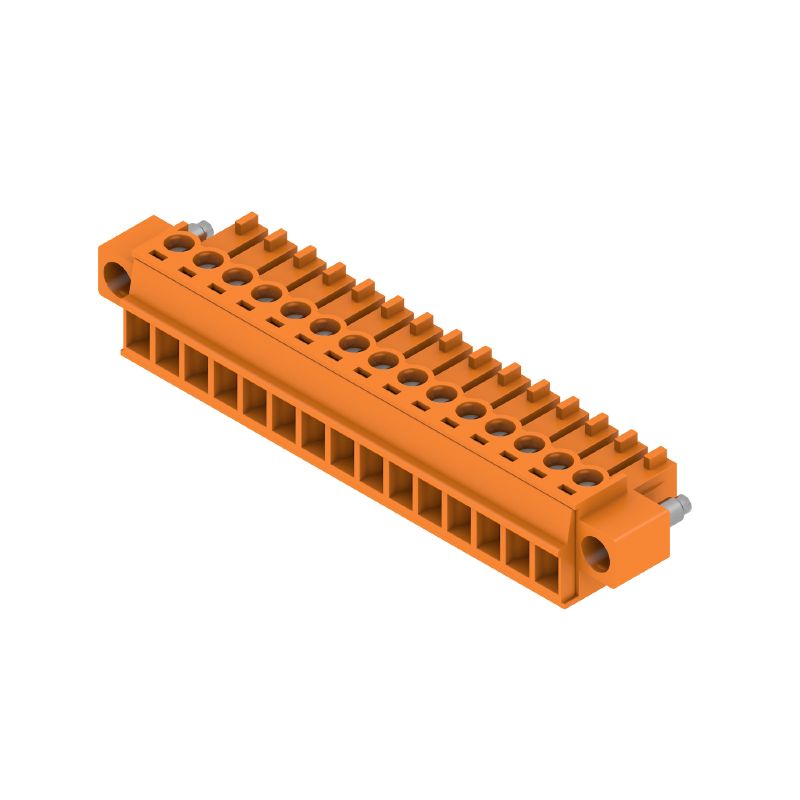

1941140000 - 3.81mm Female PCB Connector, 15 Poles, 180° Arrangement (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BCZ 381/15/180F SN OR BX, a reliable PCB plug-in connector crafted as a female connector with a 381 mm pitch It boasts 15 poles positioned at a 180° angle for efficient connectivity This connector utilizes a clamping yoke connection, accommodating conductors with a maximum clamping range of 15 mm² Packaged conveniently in a box, it meets RoHS standards and comes with a UL cURus certification (number E60693), ensuring compliance with safety regulations.

Perfect for various electronic applications, this connector guarantees secure and efficient connections.

Features and Benefits:

•Clamping connection for secure wire placement.

•Touch-safe protection according to DIN VDE standards.

•Can accommodate various wire sizes ranging from AWG 28 to AWG 16.

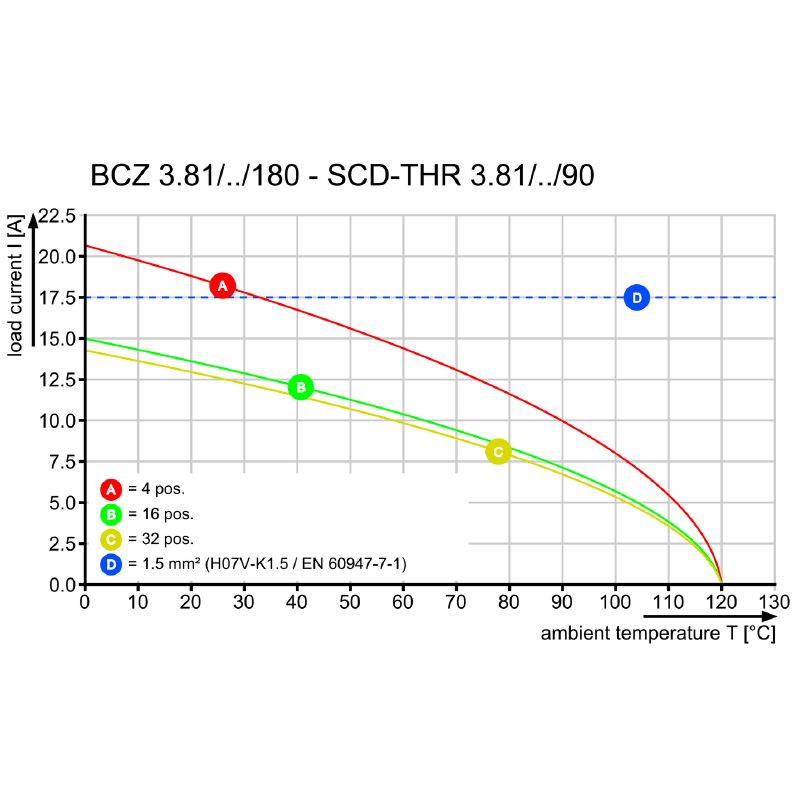

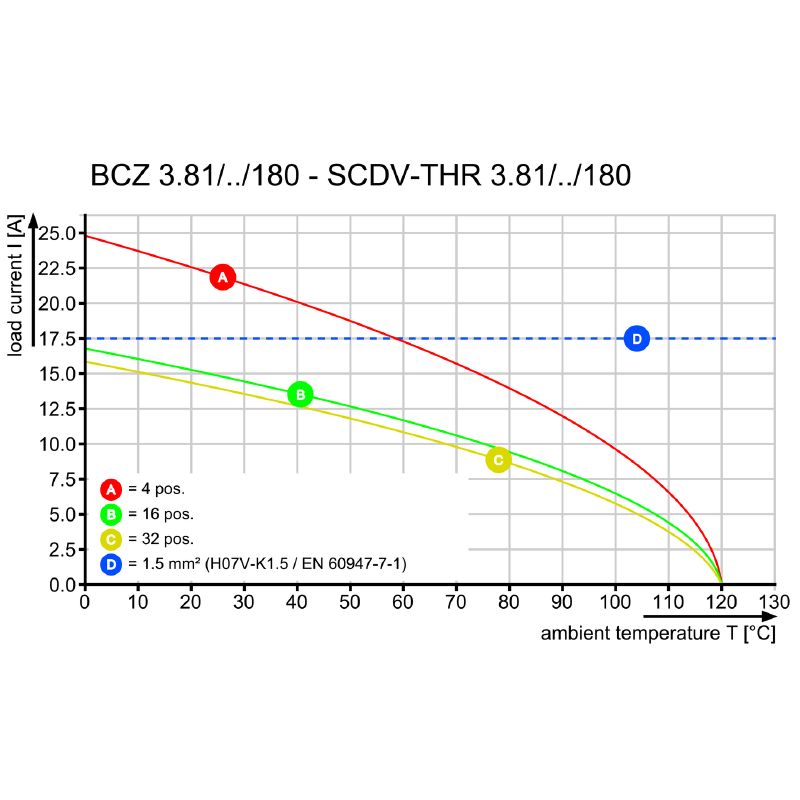

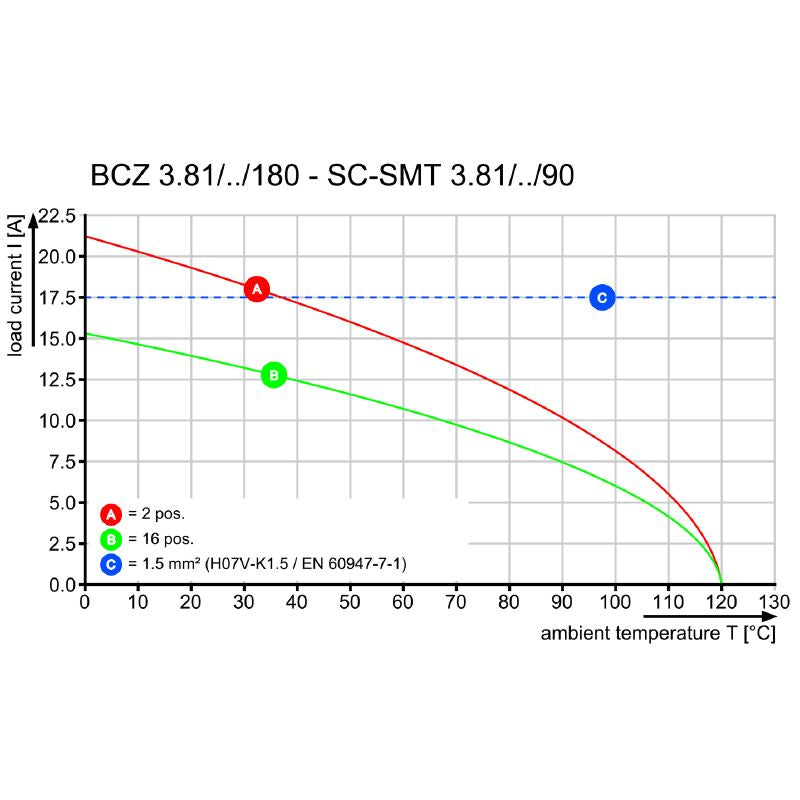

•Rated for high electrical performance up to 17.5 A.

•Passes various durability tests including visual examination.

Specifications:
