1941030000 - 3.81mm 4-Pole Female Connector with Clamping Yoke (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

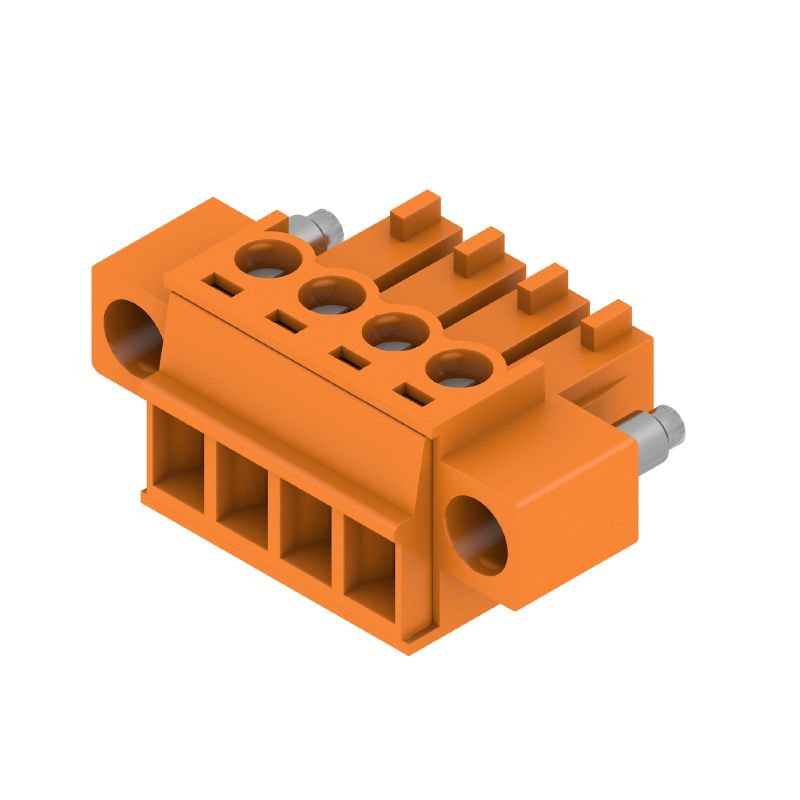

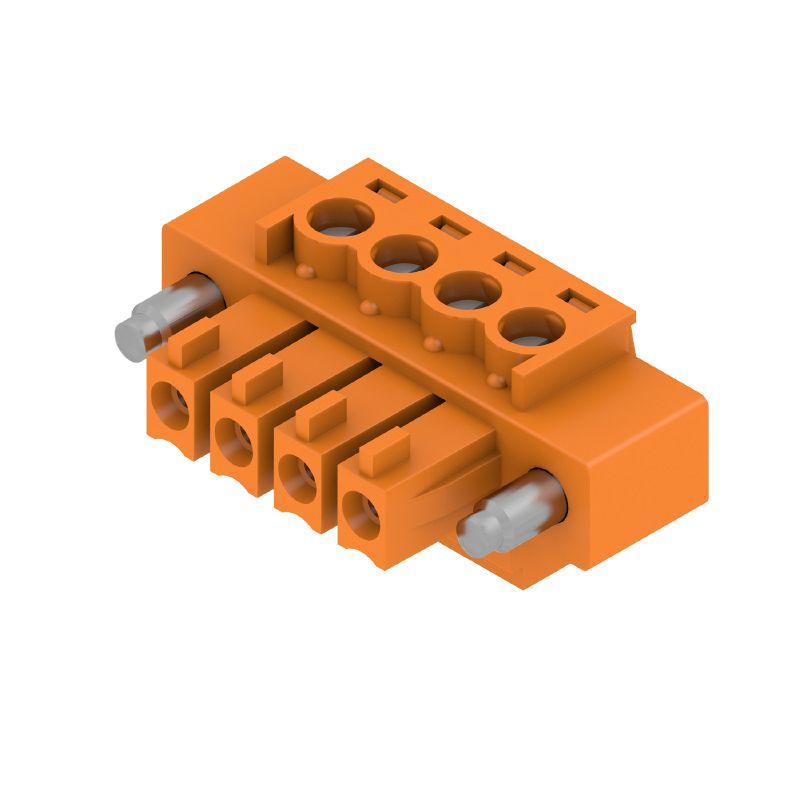

Introducing this compact 381 mm PCB female plug-in connector, featuring four poles and a 180° connection orientation Built with a clamping yoke design, it accommodates a maximum clamping range of 15 mm² This connector is compliant with RoHS regulations and meets UL certification standards, ensuring quality and safety It supports a rated voltage of 320 V according to IEC standards and 300 V as per UL standards, alongside a rated current of 17.

5 A Compatible with conductor sizes varying from 02 mm² to 15 mm², this product is packaged conveniently in a box containing 50 units for your needs.

Features and Benefits:

•Compliant with RoHS and UL standards.

•Suitable for wire connection cross sections from AWG 28 to AWG 16.

•Touch-safe protection as per DIN VDE standards.

•Can be coded for secure connections.

Specifications:
