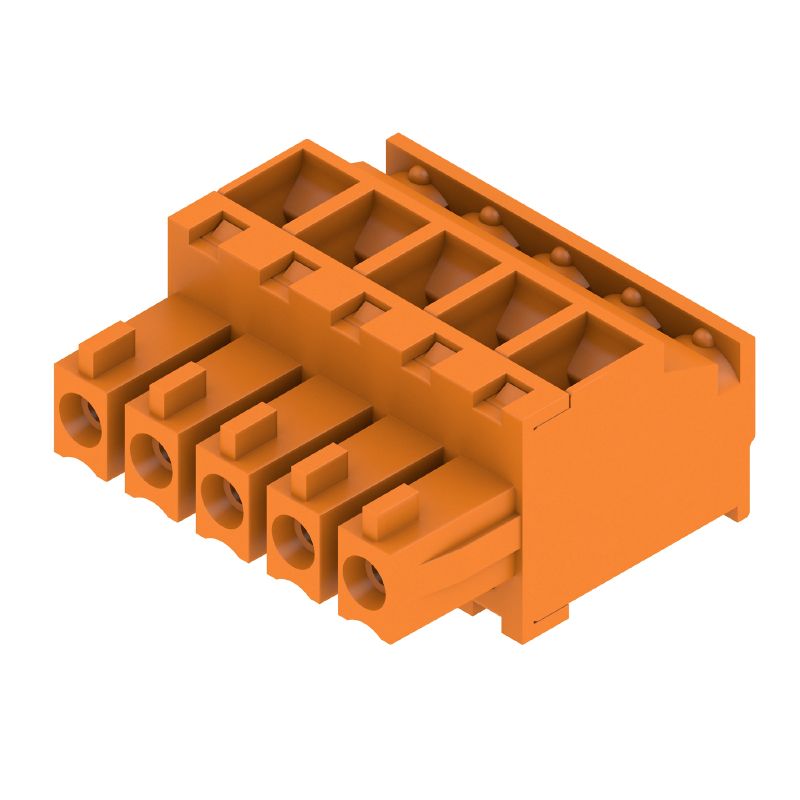

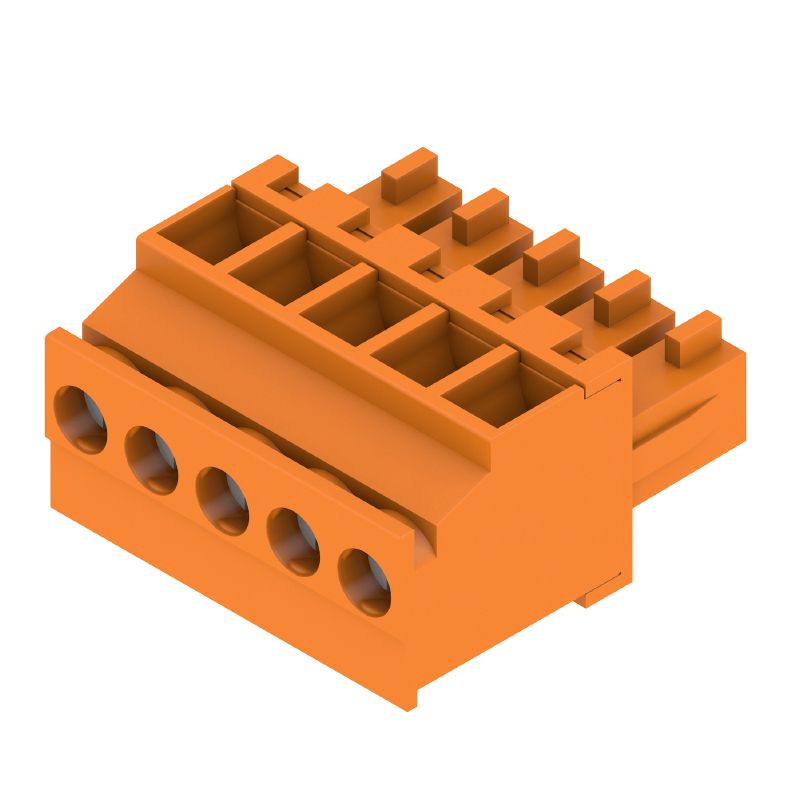

1939860000 - 3.81mm 5-Pole PCB Connector for Female Plugs (Pack of 50)

1939860000 - 3.81mm 5-Pole PCB Connector for Female Plugs (Pack of 50)

SKU: SKU: 1939860000   Download PDF

Select a Variant:
  • 1939860000 - 3.81mm 5-Pole PCB Connector for Female Plugs (Pack of 50)
Qty:
Regular price Now $181.53   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $181.53 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the BCZ 381/05/90 SN OR BX, a specialized PCB plug-in connector tailored for female plug setups With a 381 mm pitch and 5 poles, this connector utilizes a reliable clamping yoke connection, supporting wire sizes of up to 15 mm² It adheres to essential standards, including RoHS compliance, ensuring safety and environmental responsibility Each unit is conveniently packaged in boxes, which have specified dimensions and weights, making it easy to handle and transport.

Features and Benefits:

    •IEC rated to 320 V / 17.5 A / 0.2 - 1.5 mm².

    •UL rated to 300 V / 10 A / AWG 28 - AWG 16.

    •Touch-safe protection according to DIN standards.

    •Compatible with various types of conductors and wire sizes.

Specifications:

 Depth 19.1 mm
 Height 10.5 mm
 Width 19.05 mm
 Net weight 4.56 g
 Pitch 3.81 mm
 Number of poles 5
 Clamping range 0.08 - 1.5 mm²
 Rated cross-section 1 mm²
 Plug gauge 2.4 mm x 1.5 mm
 Storage temperature -40 to 70 °C
 Operating temperature -50 to 120 °C
 Protection degree IP20
 Volume resistance ≤5 mΩ
 Screwdriver blade standard DIN 5264
