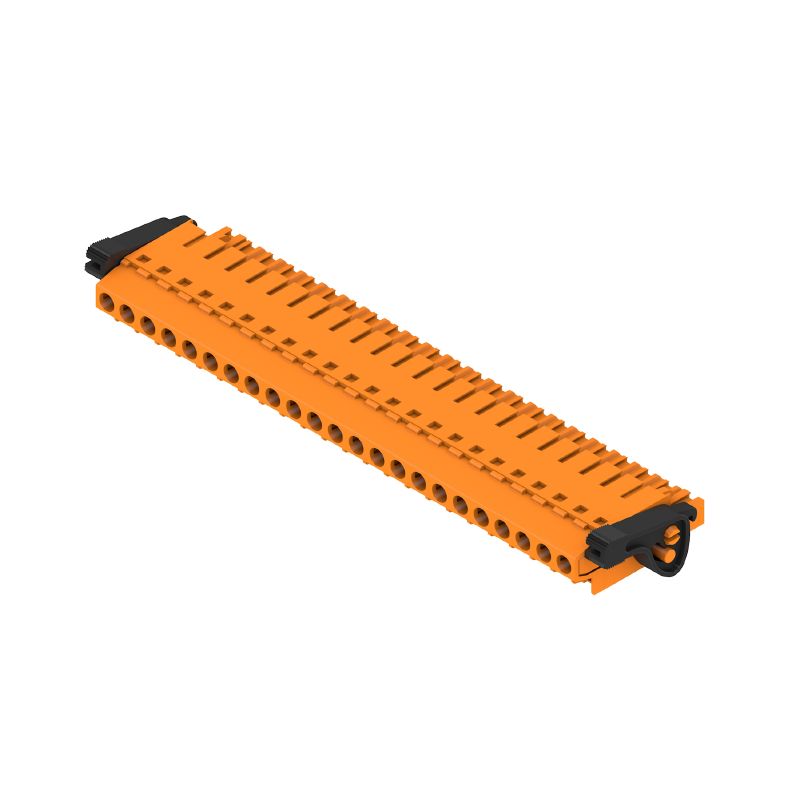

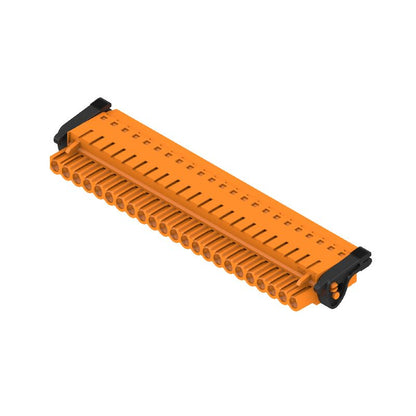

1890430000 - 5.08mm Pitch PCB Connector, 23 Poles, RoHS Compliant (Pack of 12)

SKU: SKU: 1890430000 Download PDF

Select a Variant:

1890430000 - 5.08mm Pitch PCB Connector, 23 Poles, RoHS Compliant (Pack of 12)

SET THE QTY:

Now $380.65 Web pricing policy

~~BEFORE $0.00~~ Now $380.65 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

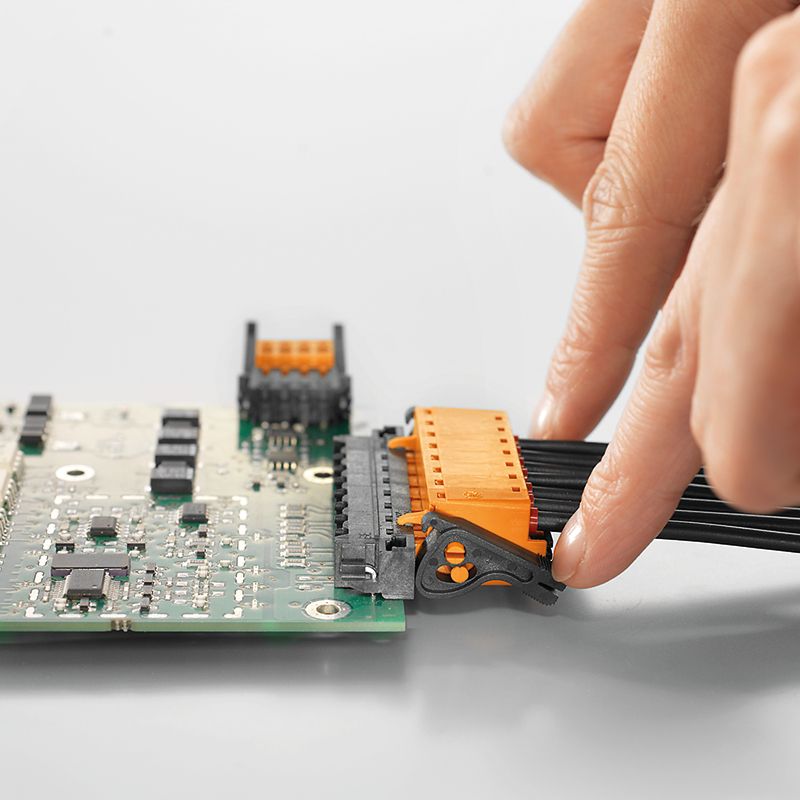

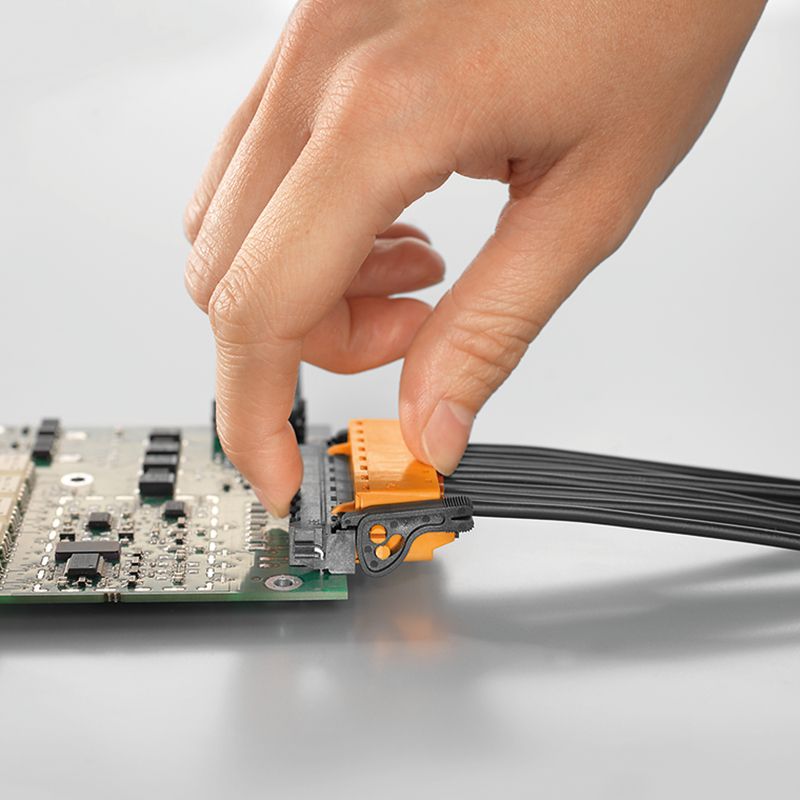

Discover the reliable PCB plug-in connector tailored for female plugs, featuring a convenient 508 mm pitch across 23 poles with a secure top connection Capable of accommodating wire sizes up to 25 mm², this connector adheres to RoHS regulations and comes with a UL approval certificate number E60693, ensuring its quality and compliance Perfect for your electronic needs, this connector blends functionality with safety standards seamlessly.

Features and Benefits:

•IP20 protection degree.

•Touch-safe protection compliant with DIN VDE.

•Can be coded for secure connections.

•Suitable for a variety of conductor types.

•Available with gold-plated contact surfaces upon request.

Specifications:

Voltage Rating (IEC)	400 V / 27 A / 0.2 - 2.5 mm²
Voltage Rating (UL)	300 V / 17 A / AWG 26 - AWG 14

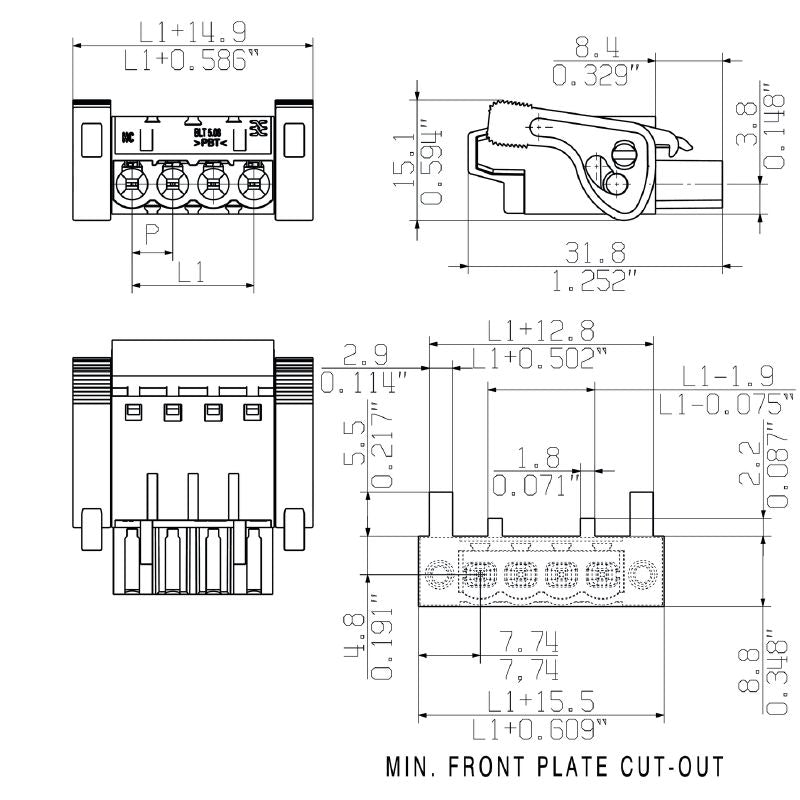

Dimensions	{'Depth': '31.8 mm', 'Height': '15.1 mm', 'Width': '126.66 mm'}

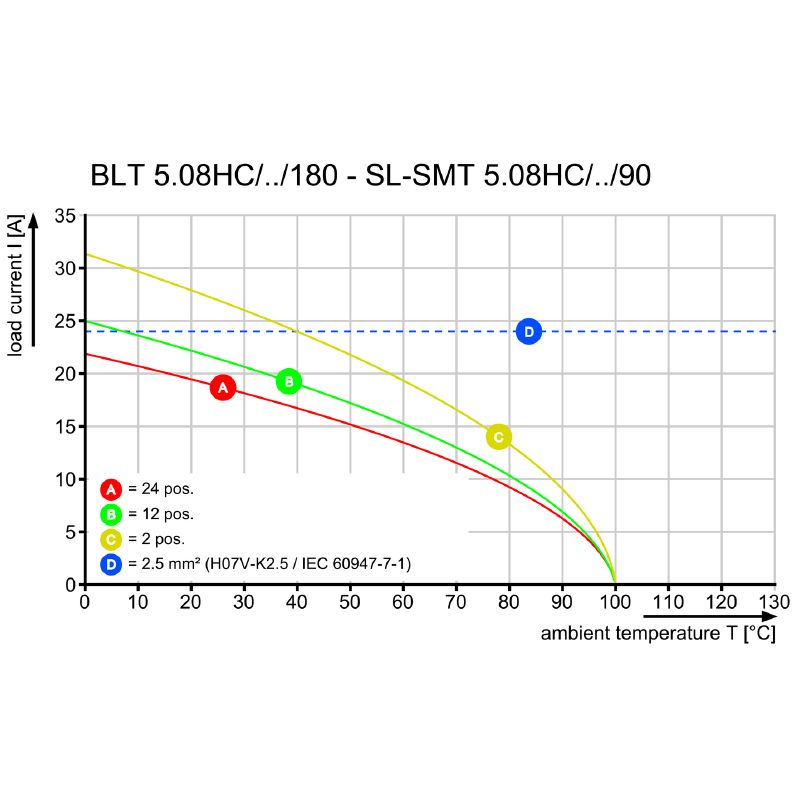

Rated Current	{'Min (Tu=20°C)': '27 A', 'Max (Tu=20°C)': '19 A', 'Min (Tu=40°C)': '24 A', 'Max (Tu=40°C)': '16 A'}
Stripping Length	13 mm
Material	{'Insulating Material': 'PBT', 'Contact Material': 'Cu-alloy', 'Flammability Rating': 'V-0'}
Operating Temperature	{'Min': '-50 °C', 'Max': '100 °C'}
Clamping Range	{'Min': '0.13 mm²', 'Max': '2.5 mm²'}
Pitch	5.08 mm
Number of Poles	23
