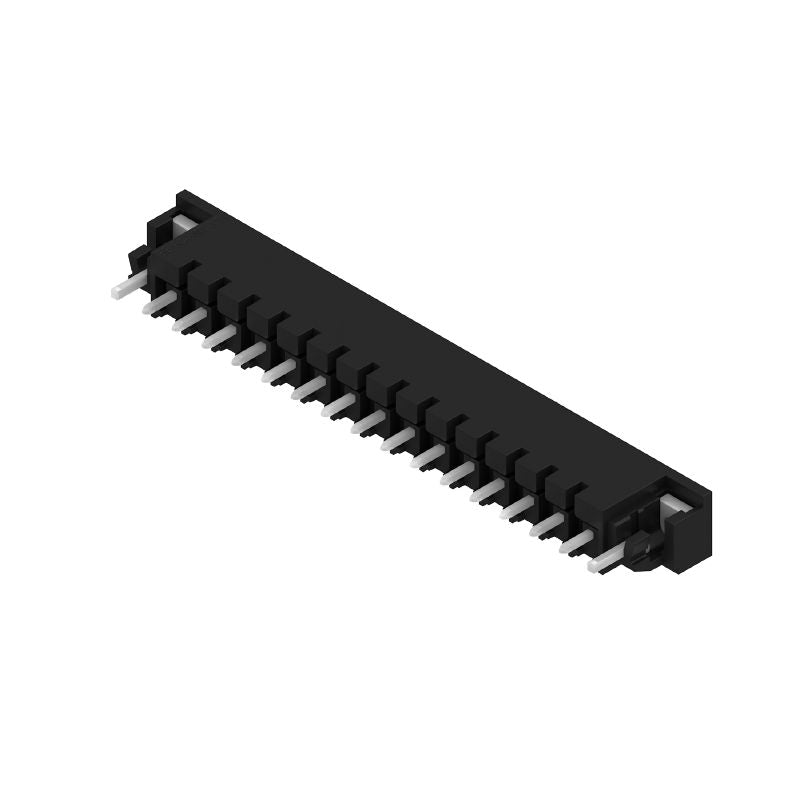

1863460000 - 3.81mm 15-Pole Black PCB Female Header Connector Elbow 180° (Pack of 50)

1863460000 - 3.81mm 15-Pole Black PCB Female Header Connector Elbow 180° (Pack of 50)

SKU: SKU: 1863460000   Download PDF

Select a Variant:
  • 1863460000 - 3.81mm 15-Pole Black PCB Female Header Connector Elbow 180° (Pack of 50)
Qty:
Regular price Now $232.39   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $232.39 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile male header PCB plug-in connector, specifically created for THT/THR solder connections With a pin pitch of 381 mm and 15 poles, this connector ensures a reliable fit The solder pins are tinned and measure 32 mm in length, providing excellent conductivity Offered in a classic black color, each connector is neatly packaged in a box for easy storage and handling Perfect for various electronic projects, this connector combines functionality and quality.

Features and Benefits:

    •RoHS compliant.

    •Can be coded.

    •Touch-safe protection according to DIN VDE 57 106.

    •Environmentally friendly material design.

Specifications:

 Number of poles 15
 Solder pin length (l) 3.2 mm
 Pitch 3.81 mm

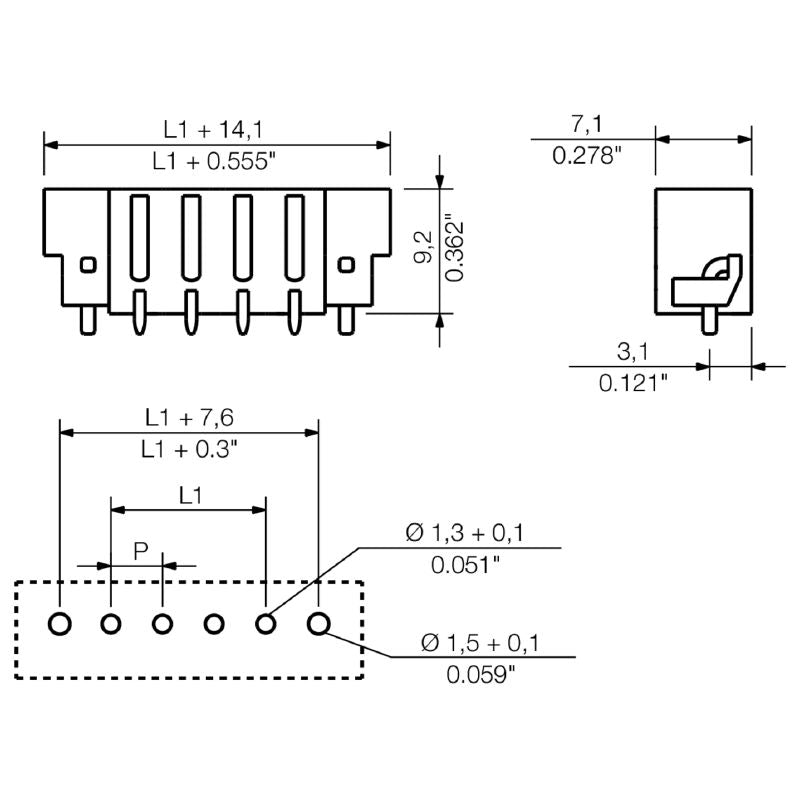

 Dimensions Depth 7.1 mm, Height 12.4 mm, Width 67.44 mm
 Rated voltage 320 V
 Rated current 17.5 A
 Operating temperature, min. -50 °C
 Operating temperature, max. 120 °C
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Touch-safe protection IP IP20 plugged / IP10 unplugged
