1863260000 - 3.81mm 4-Pole Male Header Connector with 180° Elbow (Pack of 50)

1863260000 - 3.81mm 4-Pole Male Header Connector with 180° Elbow (Pack of 50)

SKU: SKU: 1863260000   Download PDF

Select a Variant:
  • 1863260000 - 3.81mm 4-Pole Male Header Connector with 180° Elbow (Pack of 50)
Qty:
Regular price Now $86.07   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $86.07 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

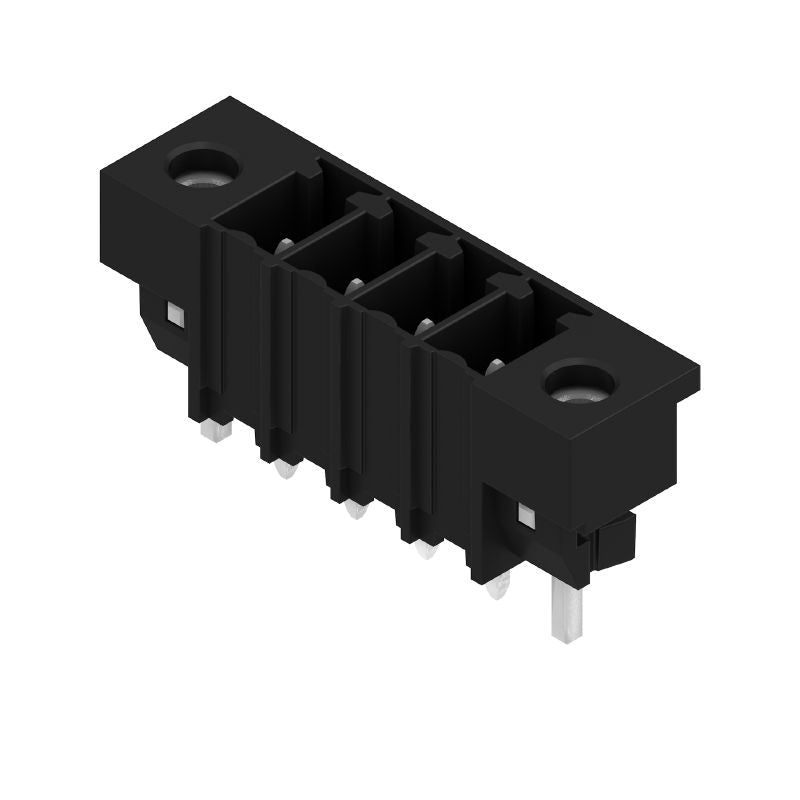

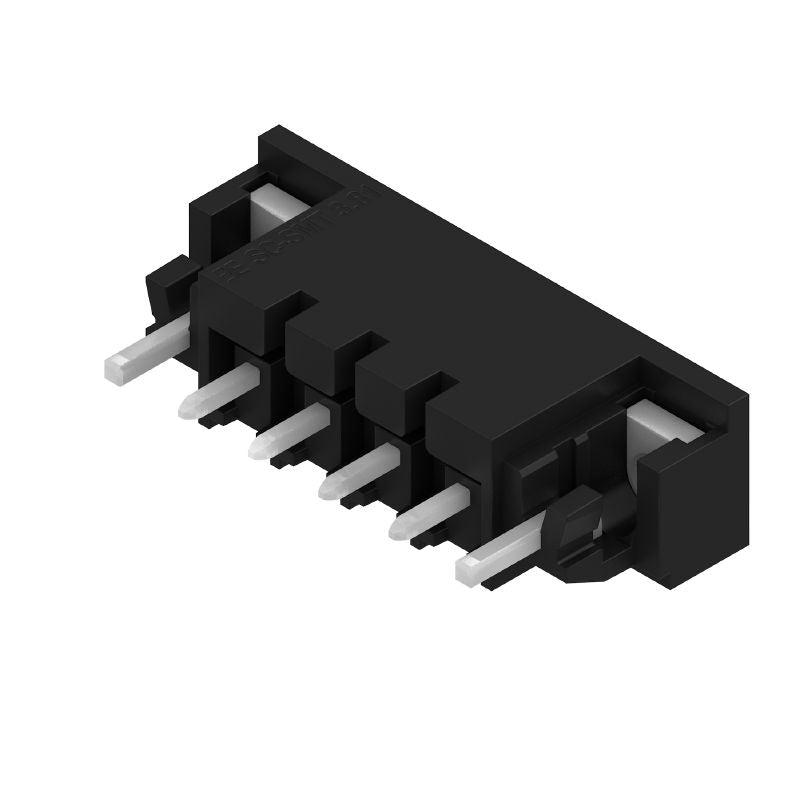

Introducing the SC-SMT 381/04/180LF male header connector, ideal for seamless PCB plug-in connections With a compact 381 mm pitch and a practical 180° elbow design, this connector features a 4-pole configuration to optimize your setup The solder pins measure 32 mm in length and are coated with a durable black tin finish, all packaged securely in a box Rated for IEC voltage of 320 V and capable of handling currents up to 17.

5 A, it also meets UL standards with a maximum voltage of 300 V and a current limit of 11 A, ensuring reliable performance for your electronic projects.

Features and Benefits:

    •Sold in boxes containing 50 items.

    •Finger-safe when unplugged and back-of-hand safe when plugged.

    •Can be coded.

    •Compliant with RoHS without exemption.

    •Used for board connection with THT/THR solder connection.

Specifications:

 Rated current (Use group B / CSA) 11 A
 Rated voltage (Use group B / UL 1059) 300 V
 Operating temperature, min. -50 °C
 Operating temperature, max. 120 °C
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Volume resistance ≤5 mΩ
 Insulating material LCP GF
 Touch-safe protection acc. to DIN VDE 57 106 finger-safe unplugged/ back-of-hand-safe plugged

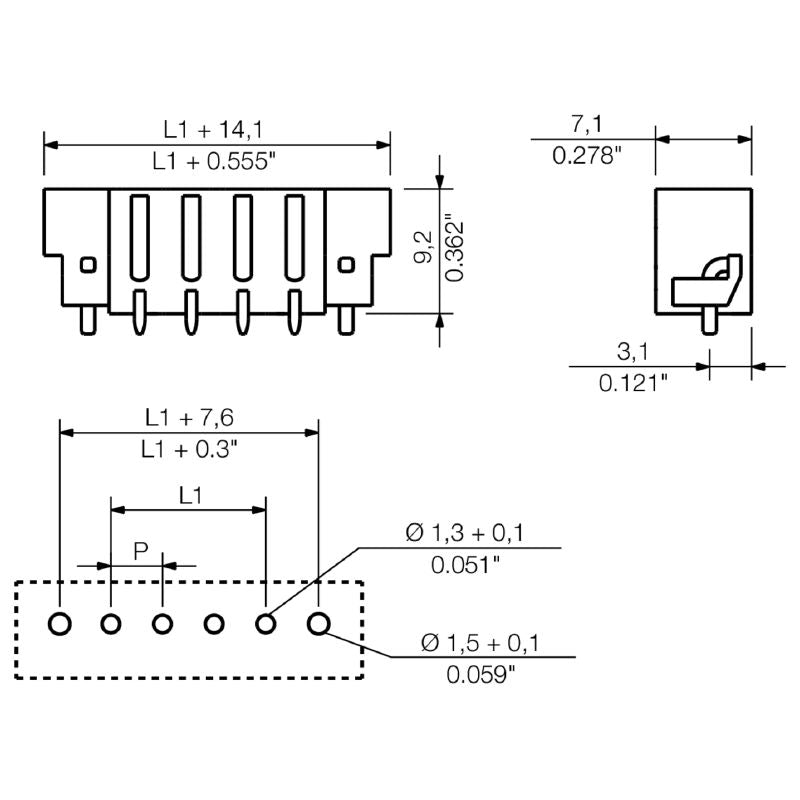

 Solder pin dimensions d = 1.0 mm
 Pitch in mm 3.81 mm
 Number of poles 4
 Solder pin length tolerance 0 / -0,02 mm
