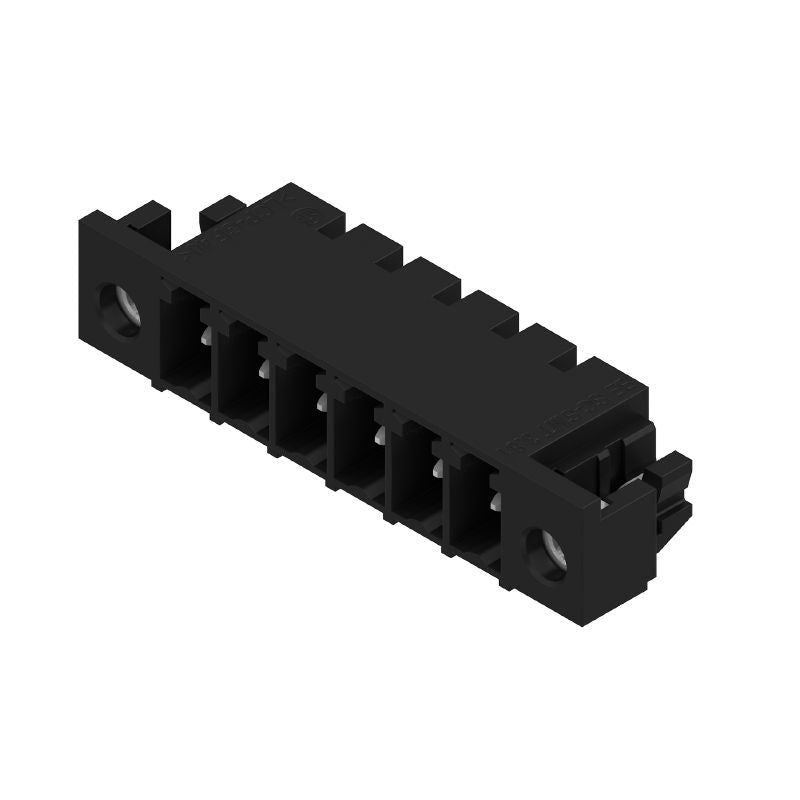

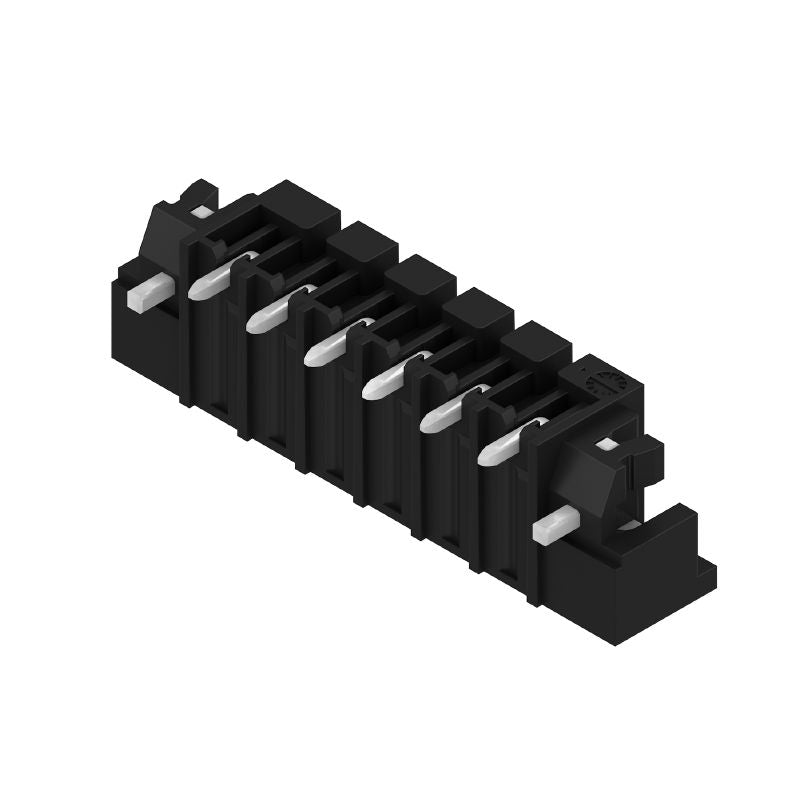

1862610000 - 3.81mm 6-Pole PCB Connector, THT Male Header, 90° Elbow (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable PCB plug-in connector designed for robust applications This male header features a solder flange, enabling both THT and THR solder connections with ease With a pitch of 381 mm and 6 poles arranged with a 90-degree outgoing elbow, it guarantees efficient connectivity Each solder pin measures 15 mm in length and boasts a durable black-tinned finish Sold in packs of 50, this connector also meets ROHS standards and carries UL certification number E60693, ensuring high-quality performance for your electronic projects.

Features and Benefits:

•IEC compliant: 320 V / 17.5 A.

•UL rated: 300 V / 11 A.

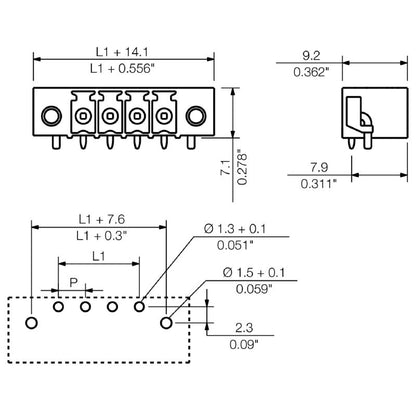

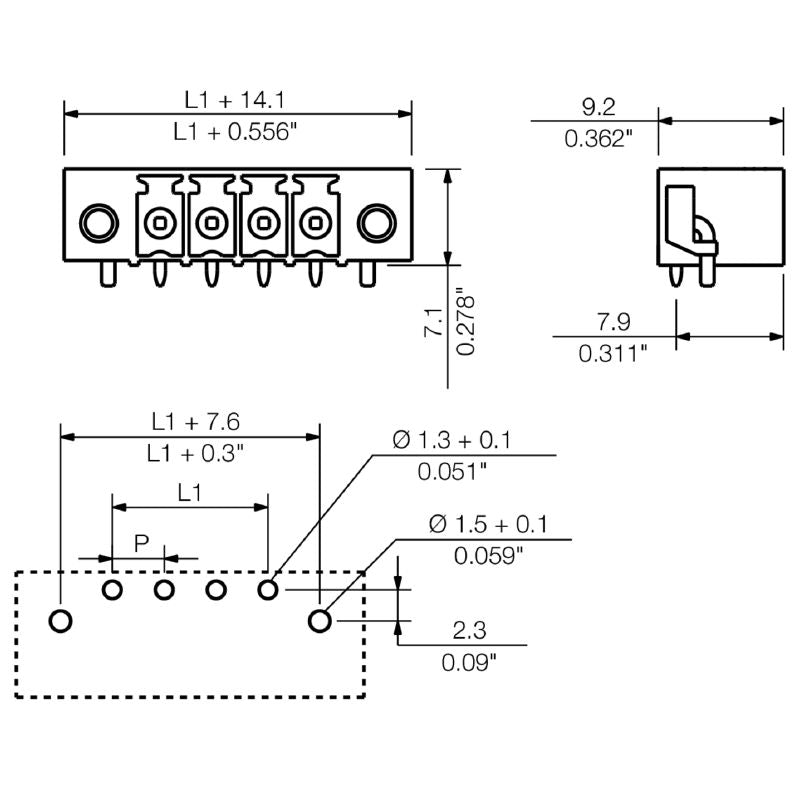

•Depth of 9.2 mm and height of 8.6 mm.

•Touch-safe protection as per DIN VDE.

•Can be coded for easy identification.

•Moisture Level (MSL) of 1.

•UL 94 flammability rating of V-0.

•Made from Cu-alloy contact material.

Specifications:
