1848120000 - 3.81mm PCB Connector, 6 Poles, 180° Orientation (Pack of 150)

1848120000 - 3.81mm PCB Connector, 6 Poles, 180° Orientation (Pack of 150)

SKU: SKU: 1848120000   Download PDF

Select a Variant:
  • 1848120000 - 3.81mm PCB Connector, 6 Poles, 180° Orientation (Pack of 150)
Qty:
Regular price Now $666.62   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $666.62 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile PCB plug-in connector specifically designed for female plugs Featuring a compact 381 mm pitch with six poles, this connector ensures a 180° connection orientation for efficient assembly It incorporates a clamping yoke connection, accommodating a maximum wire size of 15 mm² This product complies with rigorous standards, including RoHS, and boasts certifications such as E60693 for UL safety.

Each box contains 150 connectors from the OMNIMATE Signal series BC/SC 381 With a rated voltage of up to 320 V and a rated current capacity of 175 A, this connector is engineered for reliable performance under various conditions while maintaining environmental safety.

Features and Benefits:

    •Safe from finger touch as per DIN VDE 57 106.

    •Touch-safe protection according to DIN VDE 0470 with IP20 when plugged and IP10 when unplugged.

    •Can be coded for organizational and safety purposes.

    •Accommodates a variety of wire cross-sections with clamping ranges from 0.08 to 1.5 mm².

    •Constructed from high-quality materials including PA 66 GF 30 insulating material and tinned copper alloy contacts.

    •Compatible with both solid and flexible conductors.

Specifications:

 IEC Rated Voltage 320 V

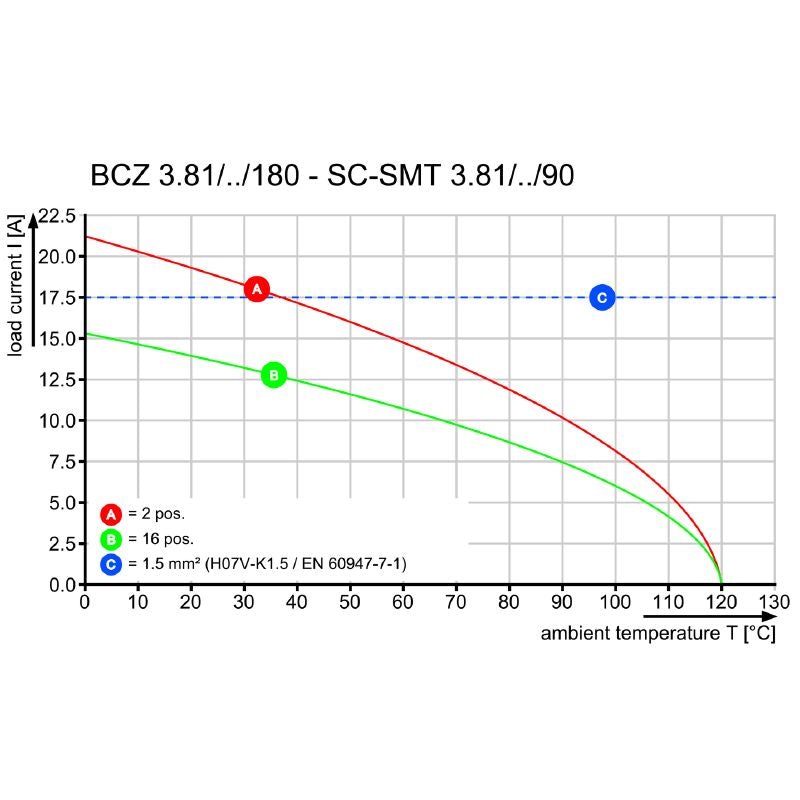

 IEC Rated Current 17.5 A
 UL Rated Voltage 300 V
 UL Rated Current 10 A

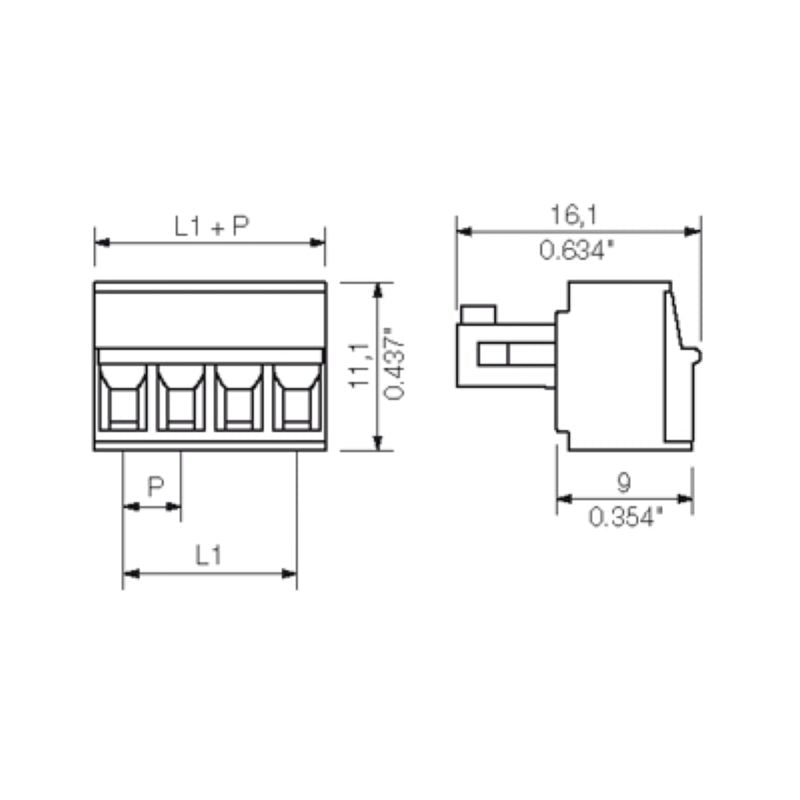

 Depth 16.1 mm
 Height 11.1 mm
 Width 22.95 mm
 Volume Resistance ≤5 mΩ
 Insulating Material PA 66 GF 30
 Operating Temperature, min -50 °C
 Operating Temperature, max 120 °C
 Clamping Screw M 2
 Plugging Cycles 25
 Pulling Force/pole, max 5 N
 Rated Impulse Voltage 2.5 kV
 Protection Degree IP20
 Weight 4.7 g
 Storage Temperature, min -40 °C
 Storage Temperature, max 70 °C
