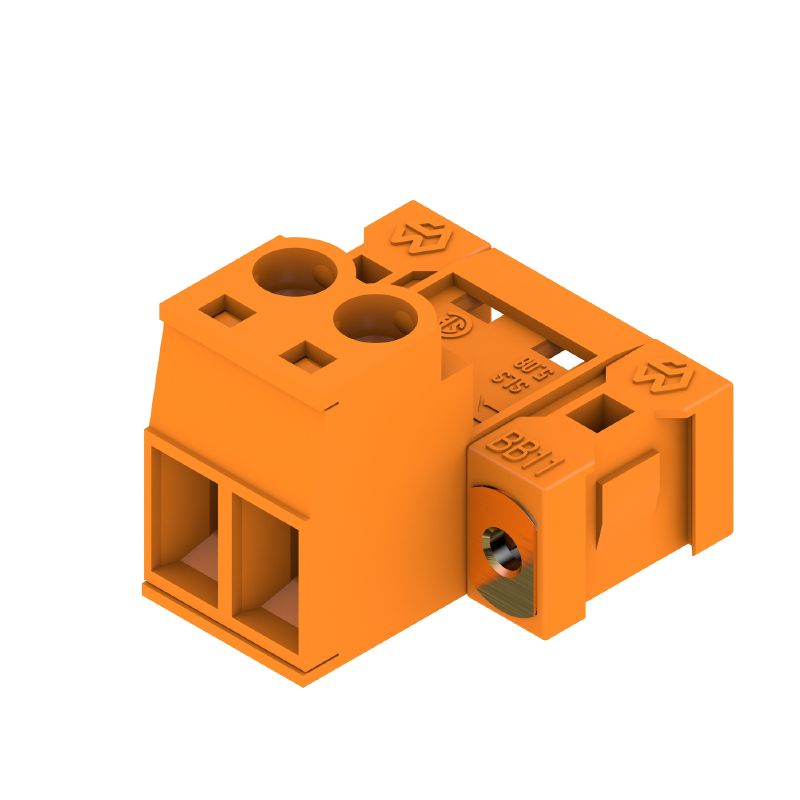

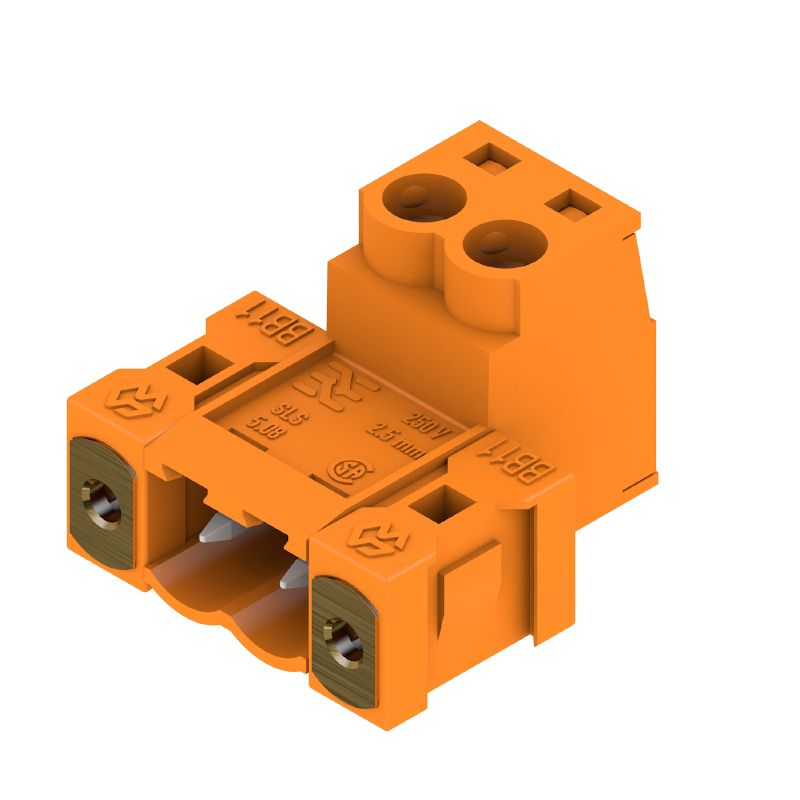

1846360000 - 5.08mm Pitch Male Plug Connector for PCBs (Pack of 90)

1846360000 - 5.08mm Pitch Male Plug Connector for PCBs (Pack of 90)

SKU: SKU: 1846360000   Download PDF

Select a Variant:
  • 1846360000 - 5.08mm Pitch Male Plug Connector for PCBs (Pack of 90)
Qty:
Regular price Now $166.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $166.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This male plug-in connector is specifically designed for printed circuit boards with a pitch of 508 mm It includes a clamping yoke connection that guarantees a firm and stable link With a maximum clamping range of 331 mm², it ensures compatibility with a variety of applications The connector comes neatly packaged in a box for easy storage and transport.

Features and Benefits:

    •Clamping yoke connection for secure wire connection.

    •Designed for printed circuit boards.

    •Compact size with a pitch of 5.08 mm.

Specifications:

 General specification IEC: 400 V / 21.5 A / 0.2 - 2.5 mm²; UL: 300 V / 14 A / AWG 26 - AWG 12
 Pitch 5.08 mm
 Number of poles 2
 Touch-safe protection finger-safe plugged/ back-of-hand-safe unplugged
 Protection degree IP20
 Temperature range for installation -25 °C to 100 °C
 Storage temperature -40 °C to 70 °C
 Material Insulating material PBT, Color orange
 Clamping range 0.13 mm² to 3.31 mm²
 Plugging cycles 25
