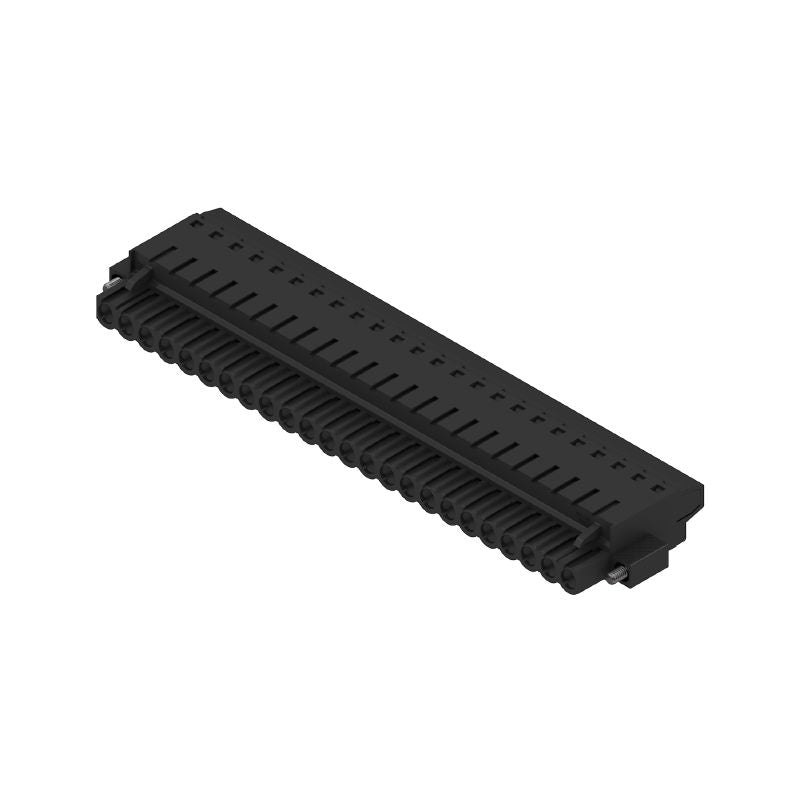

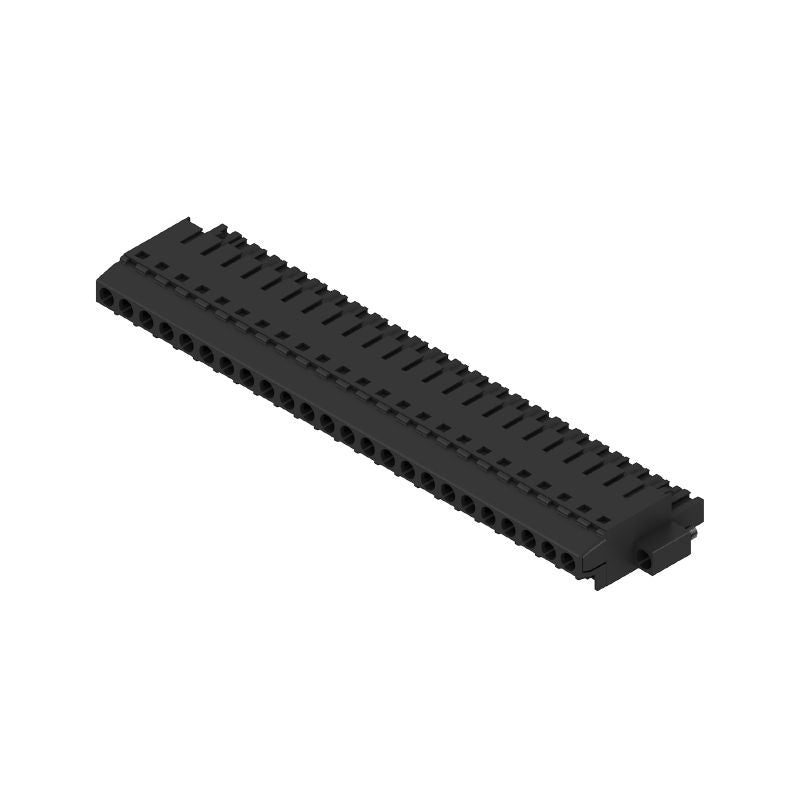

1844440000 - 5.08mm PCB Connector, 24 Poles, 180° Angle Connection (Pack of 12)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our premium female plug PCB connector, expertly crafted for a 508 mm pitch with 24 poles and a convenient top connection set at a 180° angle This connector accommodates wire connections with a maximum clamping capacity of 25 mm² With a robust voltage rating of 400 V and a current capability of 27 A according to IEC standards, it also offers a UL rating of 300 V and 17 A Packaged securely in boxes, this connector has successfully undergone rigorous safety and durability assessments to guarantee compliance with industry standards.

Its dimensions measure 13172 mm in width, 318 mm in depth, and 122 mm in height, while weighing a lightweight 6715 grams, making it an efficient choice for your electrical needs.

Features and Benefits:

•Can be coded for specific applications.

•Easy wire connection using top connection method.

•Touch-safe protection according to DIN standards.

•Environmentally compliant with RoHS.

•Durable construction with a rating of IP20.

•Suitable for various wire cross-sections.

Specifications:
