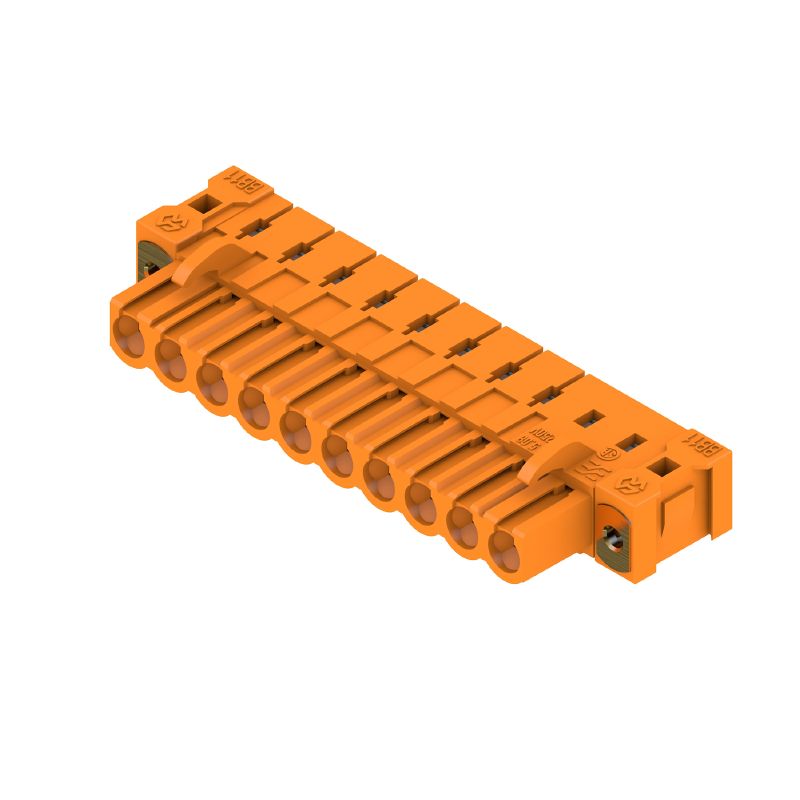

1843830000 - 5.08mm Female PCB Connector, 10 Poles, 90° Angle (Pack of 30)

1843830000 - 5.08mm Female PCB Connector, 10 Poles, 90° Angle (Pack of 30)

SKU: SKU: 1843830000   Download PDF

Select a Variant:
  • 1843830000 - 5.08mm Female PCB Connector, 10 Poles, 90° Angle (Pack of 30)
Qty:
Regular price Now $161.50   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $161.50 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover this reliable PCB plug-in connector designed with a female header that features an inverted flange for secure installation With a pitch of 508 mm and offering a total of 10 poles at a 90° angle, this connector ensures optimal performance The solder pins measure 32 mm in length and come with a tinned finish in a vibrant orange hue Each connector is neatly packaged in a box for easy distribution, making it a practical choice for your needs.

Features and Benefits:

    •Rated voltage of 400 V / 23 A according to IEC.

    •Compliant with RoHS exemptions.

    •Designed for board connection with THT solder.

    •Touch-safe protection per DIN VDE standards.

    •Can be coded for specific applications.

    •Features excellent insulation resistance.

    •Suitable for various PCB applications requiring robust connectivity.

Specifications:

 Pin series quantity 1
 Number of solder pins per pole 2
 Number of rows 1
 Pitch in mm (P) 5.08 mm
 Solder pin dimensions 0.4 x 1.00 mm
 Rated current, min. number of poles (Tu=20°C) 23 A
 Rated current, max. number of poles (Tu=20°C) 16 A
 Rated voltage for surge voltage class / pollution degree II/2 400 V
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Operating temperature, min. -50 °C
 Operating temperature, max. 100 °C
 Protection degree IP20
 UL voltage rating 300 V
 Touch-safe protection acc. to DIN VDE 47 IP20 plugged
 Volume resistance ≤5 mΩ
